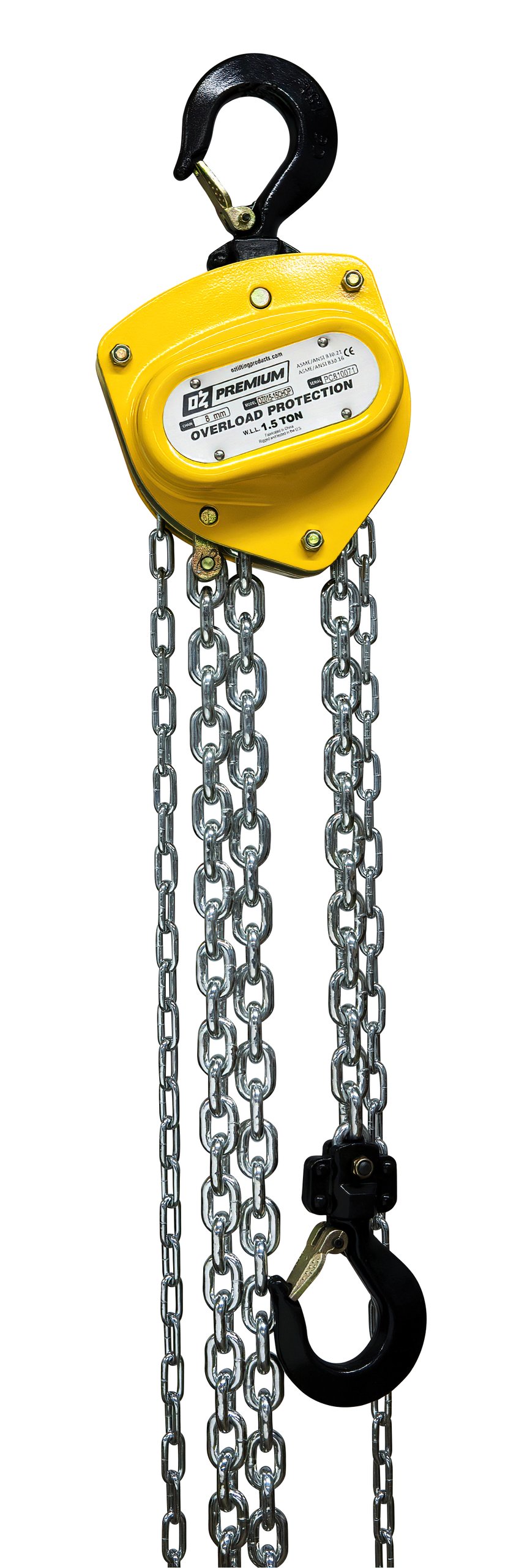

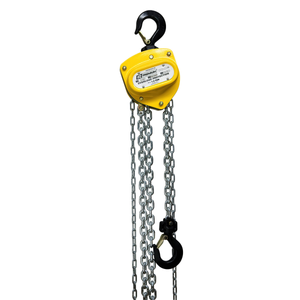

The OZ015-20CHOP Premium Chain Hoist delivers powerful and reliable performance with a 1.5-ton (3,000 lb) lifting capacity and Standard Overload Protection preset at approximately 150% of the rated load. Built for both lifting and pulling, it features double-reduction gearing for smooth, low-effort operation. The innovative hand-wheel design ensures efficient chain movement from any angle, while its all-steel construction guarantees long-lasting durability and dependable performance in demanding environments.

Product Description

The OZ015-20CHOP Premium Chain Hoist is engineered for professionals who demand precision, strength, and safety in every lift. With a 1.5-ton (3,000 lb) capacity and a 20-foot lift height, this hoist is ideal for a variety of applications, from construction sites to manufacturing floors and maintenance facilities. Its advanced design provides superior control and efficiency, making it an essential tool for heavy-duty lifting and pulling tasks.

Safety is at the forefront of the OZ015-20CHOP’s design. The Standard Overload Protection (SOP) system—preset to activate at around 150% of the rated load—helps prevent overloading accidents, ensuring safe and reliable operation under all working conditions. The double-reduction gearing system minimizes the manual effort required, allowing users to lift and position heavy loads with ease.

One of its standout features is the hand-wheel chain guide, which enables smooth chain movement from multiple angles—making it perfect for use in confined or awkward spaces. The all-steel housing and internal components are precision-built for strength and durability, and the tough powder-coated finish protects against rust, corrosion, and harsh working environments.

The Weston-style mechanical brake system provides consistent, dependable load control. With twin pawls for added safety and sealed roller bearings for smooth, maintenance-free operation, this hoist ensures optimal performance and reliability. The fully enclosed gearing keeps out dust and debris, reducing maintenance and prolonging service life.

Equipped with forged alloy steel hooks that swivel 360° and heavy-duty cast steel latches, the OZ015-20CHOP offers both flexibility and security when handling loads. The Grade 80 zinc-plated load chain ensures high tensile strength and smooth operation, while the thrust bearing on the lower hook prevents chain twist and allows for easy load rotation. Each unit is equipped with a stainless steel ID tag, unique serial number, and individual test certificate for traceable quality assurance.

Whether used for vertical lifting, horizontal pulling, or secure load positioning, the OZ015-20CHOP provides unmatched safety, durability, and control, making it the go-to choice for professional lifting operations.

Specifications

• Model: OZ015-20CHOP

• Type: Premium Manual Chain Hoist with Overload Protection

• Capacity: 1.5 Ton (3,000 lbs)

• Lift Height: 20 ft

• Overload Protection: Preset at approximately 150% of rated load

• Operation: Manual hand chain for lifting and pulling

• Construction: Heavy-duty all-steel body and components

• Finish: Powder-coated for corrosion and impact resistance

• Gearing: Double-reduction gearing for smooth, low-effort lifting

• Brake System: Weston-style enclosed brake with twin pawls

• Bearings: Sealed roller bearings for smooth, maintenance-free performance

• Hooks: Forged alloy steel, 360° swivel with thrust bearing on lower hook

• Latch System: Heavy-duty cast steel latches with bolt-and-lock nut connection

• Load Chain: Grade 80 zinc-plated alloy steel, non-oily finish

• Chain Guide: Hand-wheel design allows operation from multiple angles

• Gearing Housing: Fully enclosed to protect against dirt and debris

• Identification: Stainless steel ID tag with unique serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Benefits

• Enhanced safety with built-in overload protection

• Minimal manual effort thanks to efficient double-reduction gearing

• Durable, all-steel construction for long-term reliability

• 360° swivel hooks allow precise load positioning

• Smooth, multi-angle chain operation for maximum flexibility

• Low maintenance design with sealed bearings and enclosed gearing

• Certified quality with serial tracking and test documentation
