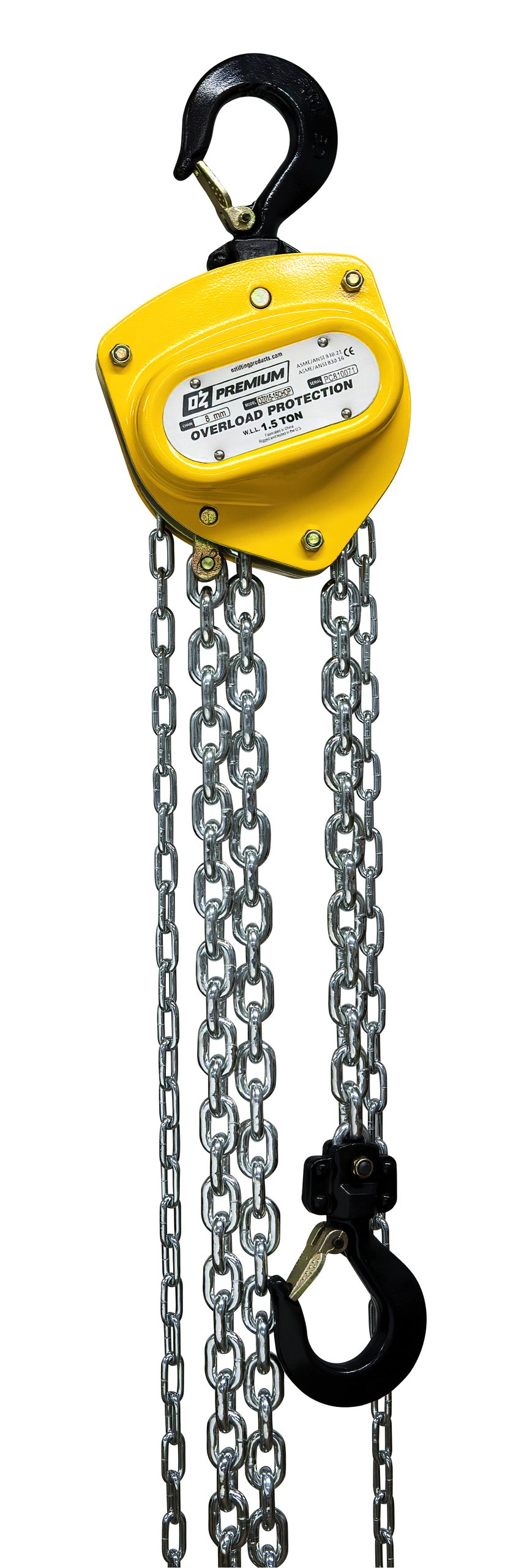

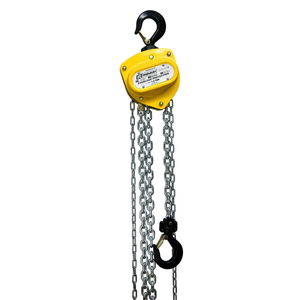

The OZ015-10CHOP Premium Chain Hoist offers exceptional lifting and pulling performance with a 1.5-ton (3,000 lb) capacity and Standard Overload Protection set at approximately 150% of the rated load. Engineered for maximum durability and control, this hoist combines double-reduction gearing, all-steel construction, and a fully enclosed Weston-style brake system to deliver reliable, smooth operation. Designed for industrial strength and precision, it’s the ideal solution for heavy-duty applications requiring safety, efficiency, and long-term performance.

Product Description

Built for professionals who demand strength, safety, and reliability, the OZ015-10CHOP Premium Chain Hoist is a standout tool for material handling in industrial, construction, and maintenance environments. With a 1.5-ton lifting capacity and 10-foot lift height, it’s designed to handle challenging lifting and pulling operations with ease and precision.

At the heart of this hoist is its Standard Overload Protection (SOP) system, preset at around 150% of the rated load to safeguard both operator and equipment. The double-reduction gearing minimizes manual effort, allowing for efficient and consistent lifting performance. Meanwhile, the unique hand-wheel design ensures the hand chain feeds smoothly from multiple angles, offering greater flexibility and control in tight spaces.

Constructed from all-steel components, this hoist features a powder-coated finish that resists wear, corrosion, and harsh environmental conditions. Its fully enclosed Weston-style brake system—equipped with twin pawls—provides dependable load holding and secure stopping. The sealed roller bearings enable smooth, low-maintenance operation, while the fully enclosed gearing protects internal parts from contamination and debris, extending the life of the unit.

The forged alloy steel hooks swivel 360° for easy attachment and load positioning, supported by a thrust bearing on the lower hook to prevent chain twisting and allow smooth rotation. Heavy-duty cast steel safety latches with a bolt-and-lock nut connection ensure secure load retention under stress. The Grade 80 zinc-plated load chain offers superior tensile strength and a non-oily finish for clean handling.

Every hoist includes a stainless steel ID tag with a unique serial number and test certificate for full traceability and compliance. Quick disassembly makes servicing fast and easy—ideal for users who value reliability and convenience.

Specifications

• Model: OZ015-10CHOP

• Type: Premium Manual Chain Hoist with Overload Protection

• Capacity: 1.5 Ton (3,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory preset at ~150% of rated load

• Gearing: Double-reduction gearing for minimal lifting effort

• Brake System: Enclosed Weston-style brake with twin pawls

• Construction: Heavy-duty all-steel housing and frame

• Finish: Powder-coated for corrosion and impact resistance

• Load Chain: Grade 80 zinc-plated, heat-treated alloy steel

• Hooks: Forged alloy steel upper and lower hooks with 360° rotation

• Latch System: Cast steel safety latches with bolt-and-lock nut design

• Bearings: Sealed roller bearings for maintenance-free operation

• Chain Guide: Smooth hand-wheel design for multi-angle operation

• Certification: Stainless steel ID tag with serial number and test certificate

• Operation: Manual hand chain for lifting and pulling applications

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Features

• 1.5-ton (3,000 lb) capacity with 10 ft lift height

• Standard Overload Protection set at ~150% of rated load

• Double-reduction gearing for smooth, low-effort lifting

• All-steel construction with a durable powder coat finish

• Enclosed brake system and sealed bearings for reliability

• 360° swivel hooks and thrust bearing to prevent twisting

• Traceable certification and quick disassembly for maintenance
