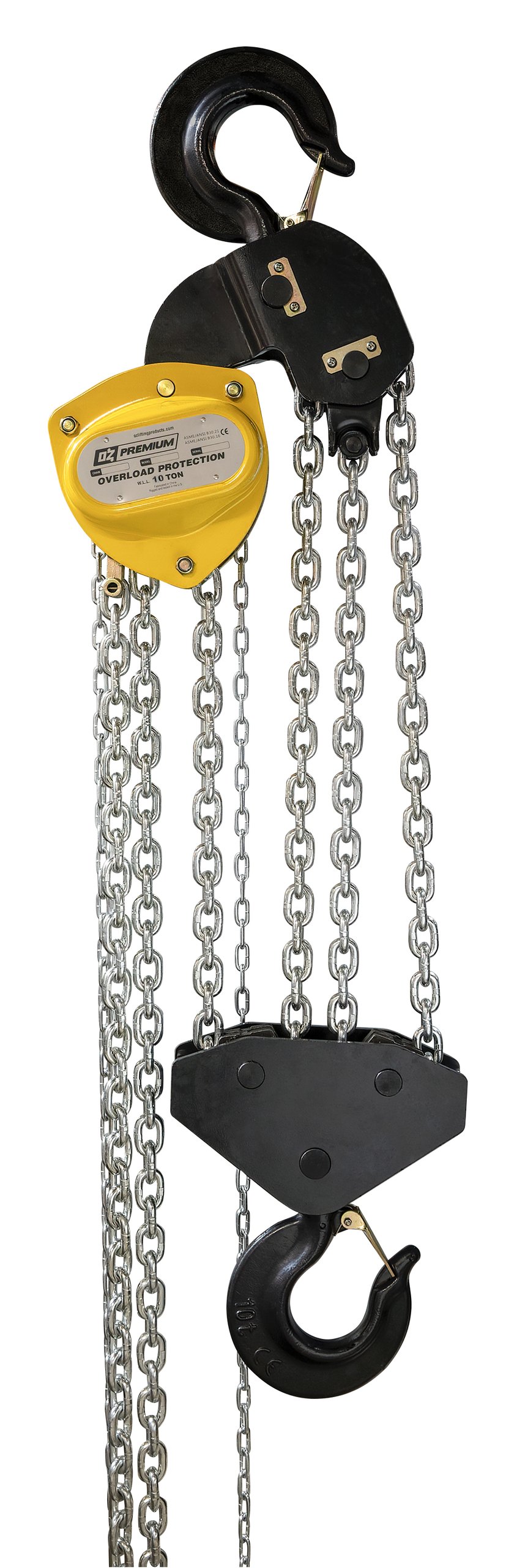

The OZ100-10CHOP Premium Chain Hoist delivers unmatched power and precision with a 10-ton (20,000 lb) capacity. Built for both lifting and pulling, it’s equipped with Standard Overload Protection set at approximately 150% of the rated load, ensuring maximum safety during operation. With double-reduction gearing, a smooth-operating hand-wheel design, and all-steel construction, this hoist offers the strength and durability needed for the toughest industrial jobs.

Product Description

When it comes to handling extremely heavy loads safely and efficiently, the OZ100-10CHOP Premium Chain Hoist stands out as the ultimate lifting solution. Designed for rigorous use in industrial, construction, and maintenance settings, this 10-ton manual chain hoist combines advanced engineering, operator safety, and rugged construction to deliver long-term, dependable performance.

This heavy-duty hoist features Standard Overload Protection, calibrated at approximately 150% of the rated load, to prevent overloading and ensure consistent operation within safe limits. This built-in safeguard not only protects workers but also preserves the longevity of the hoist and its components.

The double-reduction gearing system significantly reduces the manual effort required to lift or lower loads, allowing operators to work efficiently and with less fatigue. The ergonomic hand-wheel design enables smooth and controlled chain operation from multiple angles, making it easy to maneuver even in confined workspaces.

Constructed with a high-strength all-steel body, the OZ100-10CHOP is built to withstand heavy use in demanding environments. Its powder-coated finish resists corrosion, while the Grade 80 zinc-plated alloy load chain ensures long-lasting durability and smooth movement under load. The Weston-style mechanical brake with dual pawls provides reliable load holding and secure positioning every time.

The forged alloy steel hooks, both top and bottom, swivel 360° for versatile load alignment and feature cast steel safety latches for secure attachment. The lower hook includes a thrust bearing, allowing smooth rotation of heavy loads without twisting the chain. Each hoist comes with a unique serial number, stainless steel ID tag, and load test certification, ensuring compliance with ASME and OSHA standards.

Specifications

• Model: OZ100-10CHOP

• Capacity: 10 Ton (20,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory-set to ~150% of rated load

• Construction: Heavy-duty all-steel body with powder-coated finish

• Operation Type: Manual lifting and pulling

• Brake System: Enclosed Weston-style mechanical brake with dual pawls

• Gearing: Double-reduction gearing for easy operation

• Bearings: Sealed roller bearings for maintenance-free performance

• Hooks: Forged alloy steel, 360° swivel top and bottom

• Lower Hook: Includes thrust bearing for smooth rotation under load

• Latch Type: Cast steel safety latch with bolt-and-lock nut connection

• Load Chain: Grade 80 zinc-plated, corrosion-resistant

• Hand Wheel: Enables smooth chain movement from any angle

• Identification: Stainless steel tag with unique serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA requirements

Key Features & Benefits

• Massive 10-ton lifting capacity for the heaviest industrial loads

• Overload protection system prevents unsafe operation and damage

• Double-reduction gearing reduces operator fatigue and enhances control

• All-steel housing with powder coating ensures superior strength and corrosion resistance

• 360° swivel hooks for easy positioning and safe lifting

• Weston-style brake system ensures dependable load holding

• Grade 80 alloy chain delivers high tensile strength and durability

• Smooth hand-wheel operation from multiple angles for flexibility

• Meets ASME and OSHA safety standards for peace of mind
