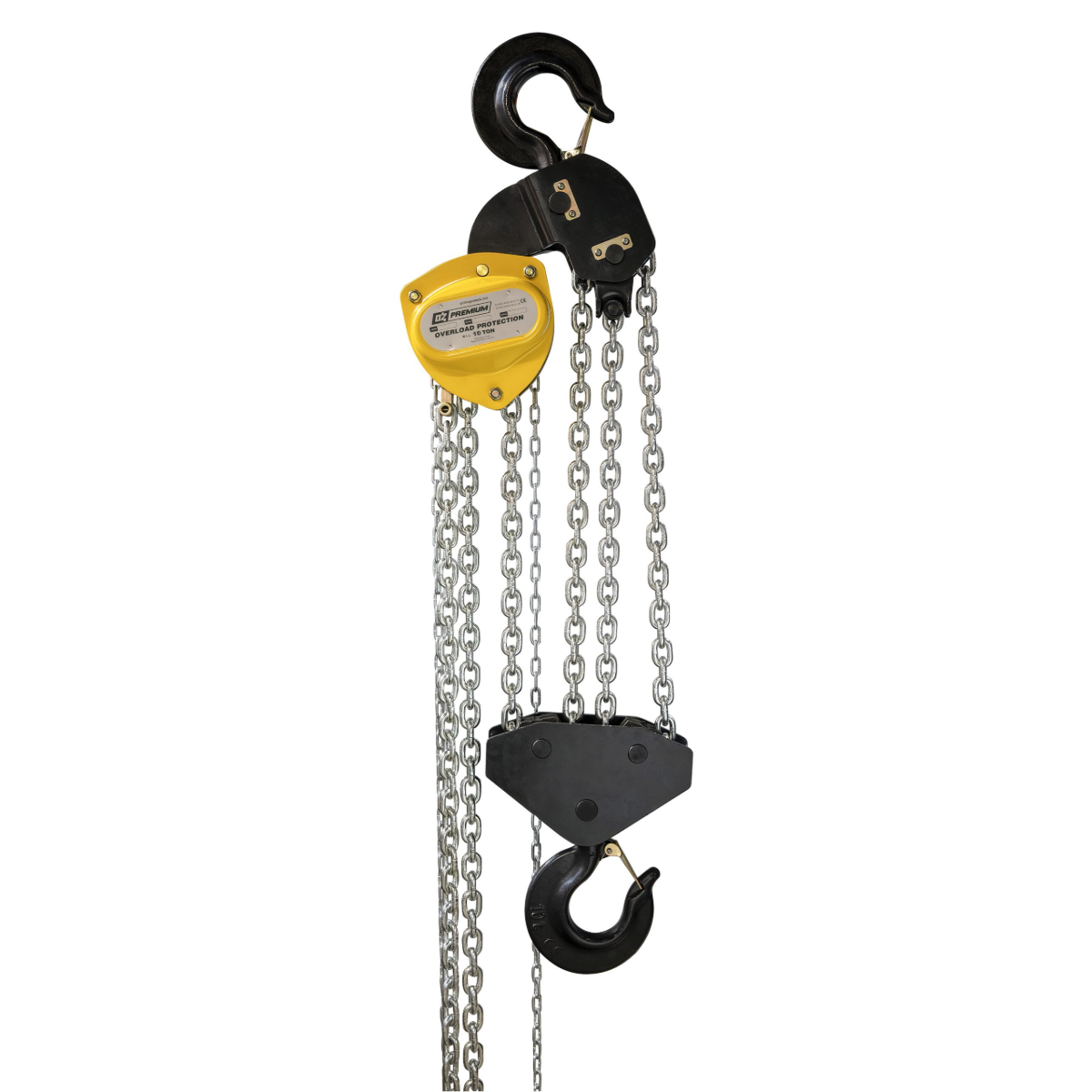

The OZ100-30CHOP Premium Chain Hoist delivers exceptional performance and safety for heavy-duty lifting and pulling applications. Designed for a 10-ton (20,000 lb) capacity, this hoist features Standard Overload Protection calibrated to approximately 150% of the rated load, ensuring operator safety and equipment protection. With double-reduction gearing, smooth hand-wheel operation from any angle, and rugged all-steel construction, it provides superior durability, precision, and ease of use in demanding industrial environments.

Product Description

Engineered for strength, reliability, and safety, the OZ100-30CHOP Premium Chain Hoist is built to tackle the toughest lifting challenges across construction, manufacturing, and maintenance industries. With a 10-ton load capacity and an extended 30-foot lift height, this hoist provides unmatched versatility and control for both vertical lifting and horizontal pulling operations.

The Standard Overload Protection system, pre-set to approximately 150% of the rated load, automatically engages to prevent dangerous overloading situations. This vital feature not only safeguards workers but also extends the service life of the hoist by protecting internal components from excessive stress.

A standout feature of the OZ100-30CHOP is its double-reduction gearing, which reduces manual effort and enhances mechanical efficiency. Operators experience smoother, faster lifting with less fatigue—ideal for environments where precision and endurance matter. The hand-wheel design ensures seamless chain operation from virtually any position, giving users flexibility in tight or awkward workspaces.

Built with a durable all-steel housing, this hoist is made to perform in harsh industrial settings. The Grade 80 zinc-plated alloy load chain provides superior tensile strength and corrosion resistance, ensuring dependable performance under continuous use. The Weston-style mechanical brake with dual pawls delivers consistent, positive load control, while forged alloy hooks with 360° rotation and safety latches add another layer of protection and ease of handling.

Each OZ100-30CHOP hoist is individually load-tested, serialized, and certified for compliance with ASME B30.16 and OSHA safety standards. The hoist also includes a stainless steel ID tag with a unique serial number for traceability and maintenance record keeping.

Specifications

• Model: OZ100-30CHOP

• Capacity: 10 Ton (20,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory-set to approximately 150% of rated load

• Operation: Manual (lifting and pulling applications)

• Construction: Heavy-duty all-steel housing with corrosion-resistant finish

• Gearing: Double-reduction gearing for reduced hand effort

• Brake System: Weston-style mechanical brake with dual pawls

• Load Chain: Grade 80 zinc-plated alloy steel chain

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks with safety latches

• Lower Hook: Equipped with thrust bearing for smooth rotation

• Bearings: Sealed roller bearings for maintenance-free operation

• Identification: Stainless steel ID tag with serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 10-ton capacity and 30-ft lift for high-performance lifting and pulling tasks

• Built-in overload protection prevents damage from excessive loads

• Effortless operation with double-reduction gearing and ergonomic hand wheel

• All-steel body construction ensures maximum strength and long-term durability

• Grade 80 alloy chain provides high tensile strength and smooth feed

• 360° rotating hooks for flexibility and secure load positioning

• Reliable mechanical braking system ensures positive load control

• Powder-coated finish resists corrosion and extends product life

• Individually tested and certified for quality assurance and traceability
