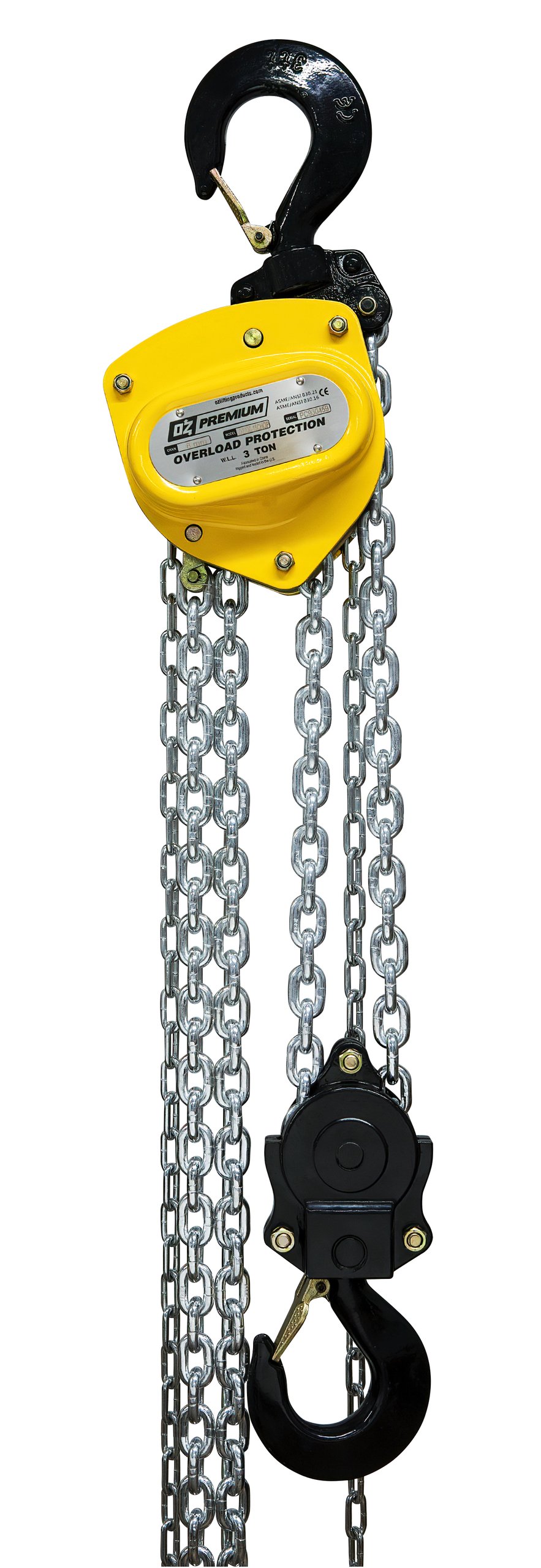

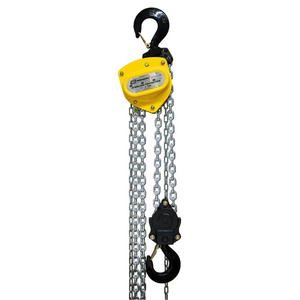

The OZ030-30CHOP Premium Chain Hoist delivers reliable lifting power with a 3-ton (6,000 lb) capacity and superior safety through Standard Overload Protection, preset to approximately 150% of the rated load. Designed for both lifting and pulling, this hoist features double-reduction gearing for smooth, low-effort operation and an innovative hand-wheel design that ensures seamless chain movement from any angle. Built from rugged all-steel construction, it’s engineered for long-lasting performance in even the toughest environments.

Product Description

When heavy-duty lifting requires strength, safety, and control, the OZ030-30CHOP Premium Chain Hoist is the dependable solution professionals trust. Engineered for precision and performance, this 3-ton manual hoist combines high load capacity, durability, and ease of operation, making it ideal for industrial, construction, and maintenance applications.

Equipped with Standard Overload Protection, the hoist automatically limits the load to around 150% of its rated capacity, preventing excessive stress on both the hoist and operator. This built-in safety feature ensures every lift is performed securely and consistently—critical for high-demand workplaces.

With a 30 ft lift height, the OZ030-30CHOP offers exceptional versatility for elevated or long-range lifting operations. Its double-reduction gearing system maximizes mechanical advantage, allowing smooth and efficient operation with minimal effort. Each hand-chain pull translates to controlled, stable lifting or lowering—ideal for precise load positioning.

The hoist’s unique hand-wheel design allows for smooth chain feeding and operation from multiple angles, providing flexibility in confined or awkward lifting positions. This enhances operator efficiency and reduces fatigue, making it suitable for prolonged use in demanding environments.

Crafted from heavy-duty steel, the hoist’s housing and frame ensure long-term durability, even under rigorous conditions. The enclosed Weston-style mechanical brake system, equipped with twin pawls, delivers reliable load holding and smooth stopping performance. The sealed roller bearings eliminate the need for lubrication, offering maintenance-free reliability and consistent performance.

The forged alloy steel hooks—both top and bottom—swivel 360° for easy alignment and reduced chain twist. The lower hook includes a thrust bearing, allowing full load rotation without compromising stability. Additionally, the Grade 80 zinc-plated load chain provides superior tensile strength and corrosion resistance, ensuring dependable use in any environment.

Each hoist is individually serialized and supplied with a stainless steel ID tag and test certificate, verifying load rating and traceability for workplace compliance and safety assurance.

Specifications

• Model: OZ030-30CHOP

• Type: Premium Manual Chain Hoist with Standard Overload Protection

• Capacity: 3 Ton (6,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory set to engage at ~150% of rated load

• Operation: Manual lifting and pulling

• Construction: All-steel body and housing for superior strength

• Finish: Durable powder-coated, corrosion-resistant finish

• Gearing: Double-reduction system for efficient lifting

• Brake System: Enclosed Weston-style brake with twin pawls

• Bearings: Sealed roller bearings—no lubrication required

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks

• Lower Hook: Equipped with thrust bearing for smooth load rotation

• Latch System: Heavy-duty cast steel with locking nut assembly

• Load Chain: Grade 80 zinc-plated, high-tensile steel

• Hand-Wheel: Operates smoothly from multiple angles

• Identification: Stainless steel tag with unique serial number

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 3 Ton capacity for heavy industrial and construction lifting

• 30 ft lift height for extended reach applications

• Standard Overload Protection ensures operator safety

• Double-reduction gearing for efficient and low-effort lifting

• Hand-wheel design allows multi-angle operation

• All-steel construction ensures long-lasting durability

• 360° swivel hooks for flexibility and reduced chain twist

• Maintenance-free bearings minimize downtime

• Corrosion-resistant chain extends service life

• Individually tested and certified for safety compliance
