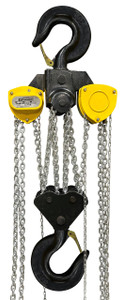

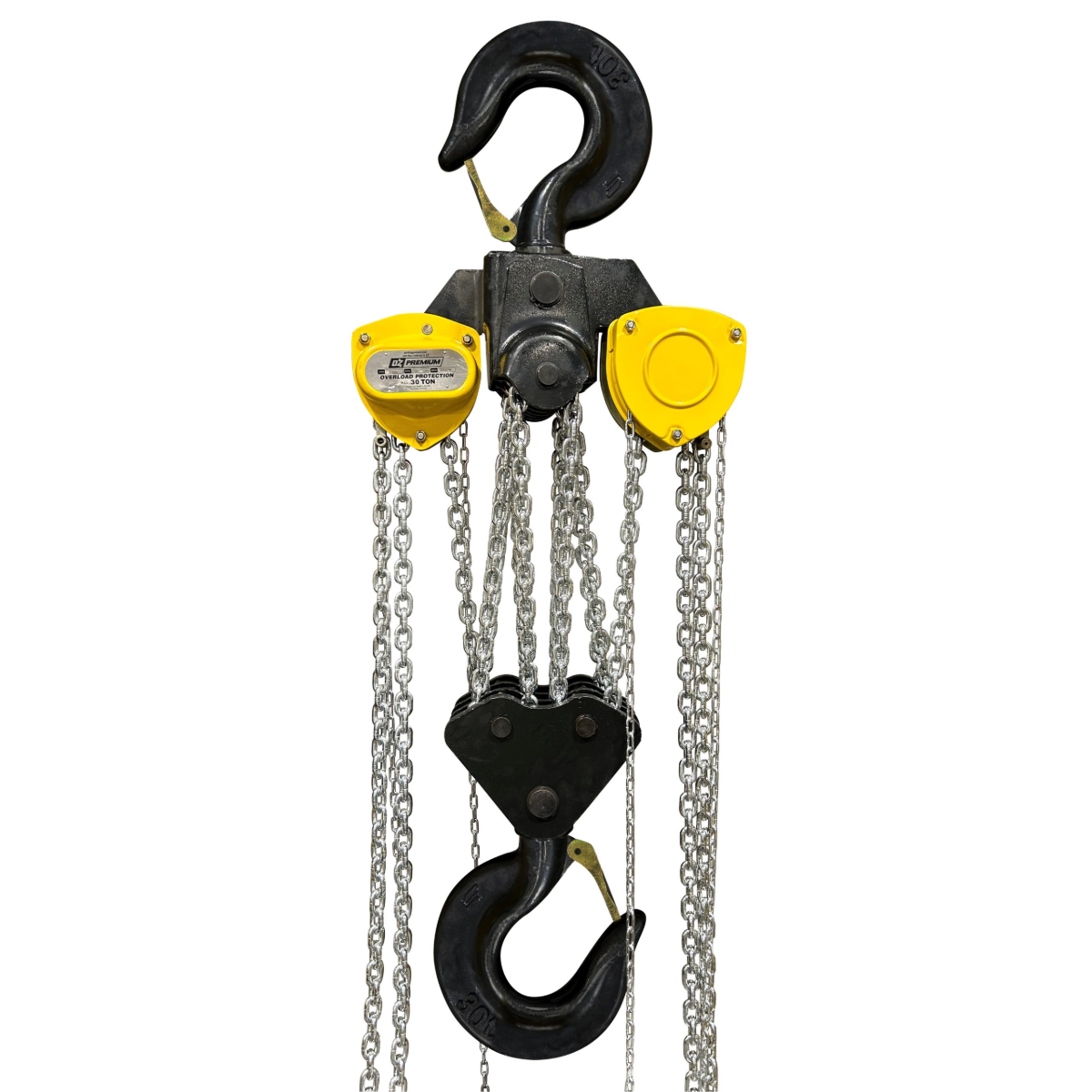

The OZ300-15CHOP Premium Chain Hoist is built for maximum lifting power, precision, and safety. With a 30-ton load capacity and Standard Overload Protection calibrated to approximately 150% of the rated load, this hoist is designed for dependable performance in demanding lifting and pulling applications. Its double-reduction gearing, smooth hand-wheel design, and all-steel construction make it the ultimate heavy-duty lifting solution for industrial operations.

Product Description

The OZ300-15CHOP Premium Chain Hoist combines industrial-grade strength with superior safety features to deliver reliable lifting performance in the most challenging environments. Designed for both vertical lifting and horizontal pulling, this manual hoist provides exceptional mechanical efficiency through its double-reduction gearing, which allows operators to move massive loads with minimal manual effort.

With a 30-ton (60,000 lb) rated capacity and a 15-foot lift height, the OZ300-15CHOP is built for heavy-duty operations in manufacturing, shipbuilding, construction, and utility maintenance. Its Standard Overload Protection mechanism, pre-set to engage at approximately 150% of the rated load, ensures safe operation by preventing excessive strain on the hoist and operator. This feature minimizes equipment damage while enhancing workplace safety standards.

The all-steel frame and precision-engineered components guarantee long-lasting durability and superior resistance to impact, corrosion, and wear. A Grade 80 alloy steel load chain, treated for high tensile strength and corrosion resistance, provides consistent performance in harsh industrial environments. The ergonomic hand-wheel design ensures smooth and easy chain movement from any angle, making it ideal for tight spaces or multi-directional operations.

Safety and control are reinforced by a Weston-style mechanical brake system with dual pawls, providing dependable load holding even during extended use. 360° swivel hooks with heavy-duty safety latches offer flexibility and secure attachment, while roller bearings ensure smooth operation for improved operator comfort and control.

Every OZ hoist is individually load-tested and serialized, ensuring traceable quality assurance. The hoist complies with ASME B30.16 and OSHA regulations, meeting rigorous industry standards for material handling and safety.

Specifications

• Model: OZ300-15CHOP

• Capacity: 30 Ton (60,000 lbs)

• Lift Height: 15 ft

• Overload Protection: Factory set to 150% of rated load

• Operation Type: Manual (lifting and pulling)

• Construction: All-steel body with reinforced gearing system

• Gearing: Double-reduction gearing for reduced effort

• Load Chain: Grade 80 alloy steel, zinc-plated and heat-treated

• Hooks: Forged steel, 360° swivel with safety latches

• Brake System: Weston-style mechanical brake with dual pawls

• Bearings: High-performance roller bearings for smooth operation

• Identification: Stainless steel tag with serial number and load test certification

• Compliance: Meets ASME B30.16 and OSHA standards

Key Features & Benefits

• 30-ton rated capacity handles the toughest lifting jobs with ease

• Standard Overload Protection enhances operational safety and equipment life

• Double-reduction gearing delivers maximum efficiency with minimal operator effort

• Hand-wheel design allows smooth operation from any angle

• All-steel construction ensures rugged durability in industrial use

• Grade 80 load chain provides strength and corrosion resistance

• 360° rotating hooks enable flexible load positioning

• Reliable mechanical brake guarantees precise load control

• Individually tested and certified for superior quality assurance
