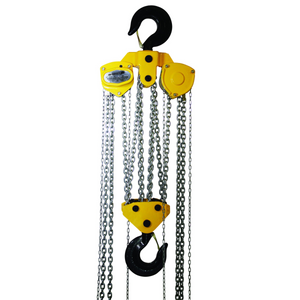

The OZ200-30CHOP Premium Chain Hoist delivers exceptional strength, reliability, and safety for demanding lifting operations. Equipped with Standard Overload Protection set at approximately 150% of the rated load, it provides added peace of mind for operators. Designed for both lifting and pulling, this hoist features double reduction gearing to reduce effort, a 360° hand-wheel design for smooth chain motion from any angle, and a rugged all-steel construction built to endure the toughest industrial environments.

Product Description

The OZ200-30CHOP Premium Chain Hoist is engineered for professionals who need superior lifting performance and enhanced safety in heavy-duty applications. With a 20-ton (40,000 lb) load capacity and a 30-foot lift height, this hoist provides reliable and consistent performance across construction, industrial maintenance, and manufacturing operations.

At the heart of this model is Standard Overload Protection, which automatically engages when loads exceed 150% of the rated capacity—preventing strain on internal components and protecting both the operator and equipment. This feature sets the OZ200-30CHOP apart as a safer and smarter manual hoist option for critical lifting tasks.

Its double-reduction gearing system is precision-engineered to deliver maximum mechanical advantage, allowing for smoother operation and reduced manual effort. The hand-wheel design allows operators to maneuver the load chain from virtually any angle, making it ideal for confined spaces or awkward lifting positions.

Constructed with heavy-duty all-steel components, this hoist offers outstanding durability and long service life. The Grade 80 alloy steel load chain provides excellent tensile strength and corrosion resistance, while forged steel hooks with 360° rotation and safety latches ensure dependable and secure load engagement. The Weston-style mechanical brake system delivers precise control and steady load holding for reliable performance every time.

Every OZ200-30CHOP hoist is individually load tested, serialized, and supplied with a stainless steel identification tag for easy tracking and inspection. It meets or exceeds ASME B30.16 and OSHA safety requirements, ensuring full compliance and operator safety.

Specifications

• Model: OZ200-30CHOP

• Capacity: 20 Ton (40,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory-set to 150% of rated load

• Operation Type: Manual (lifting and pulling applications)

• Construction: Heavy-duty all-steel body with corrosion-resistant coating

• Gearing: Double-reduction gearing for efficient load handling

• Load Chain: Grade 80 zinc-plated alloy steel

• Hooks: Forged alloy steel hooks, 360° swivel with safety latches

• Brake System: Weston-style mechanical brake with dual pawls for secure load holding

• Bearings: Precision-sealed roller bearings for smoother operation and reduced wear

• Identification: Stainless steel tag with unique serial number and load test record

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Features & Benefits

• 20-ton lifting capacity ideal for heavy construction, industrial, and manufacturing use

• Standard Overload Protection enhances operator safety and prevents hoist damage

• Double-reduction gearing reduces manual effort for easier operation

• 360° hand-wheel design enables chain operation from any angle for maximum flexibility

• All-steel housing ensures exceptional strength and long-term durability

• Corrosion-resistant alloy chain for dependable use in harsh conditions

• Mechanical brake system offers precise and safe load control

• Forged hooks with 360° rotation allow for secure and versatile load positioning

• Individually tested and certified to meet the highest safety and performance standards
