The OZ200-20CHOP Premium Chain Hoist delivers unmatched strength, safety, and reliability. Built with Standard Overload Protection calibrated to approximately 150% of the rated load, this heavy-duty hoist ensures operator safety and dependable performance. Designed for both lifting and pulling applications, it features double-reduction gearing for smooth operation, a 360° hand-wheel design for flexible use, and a rugged all-steel body for long-lasting durability in demanding industrial environments.

Product Description

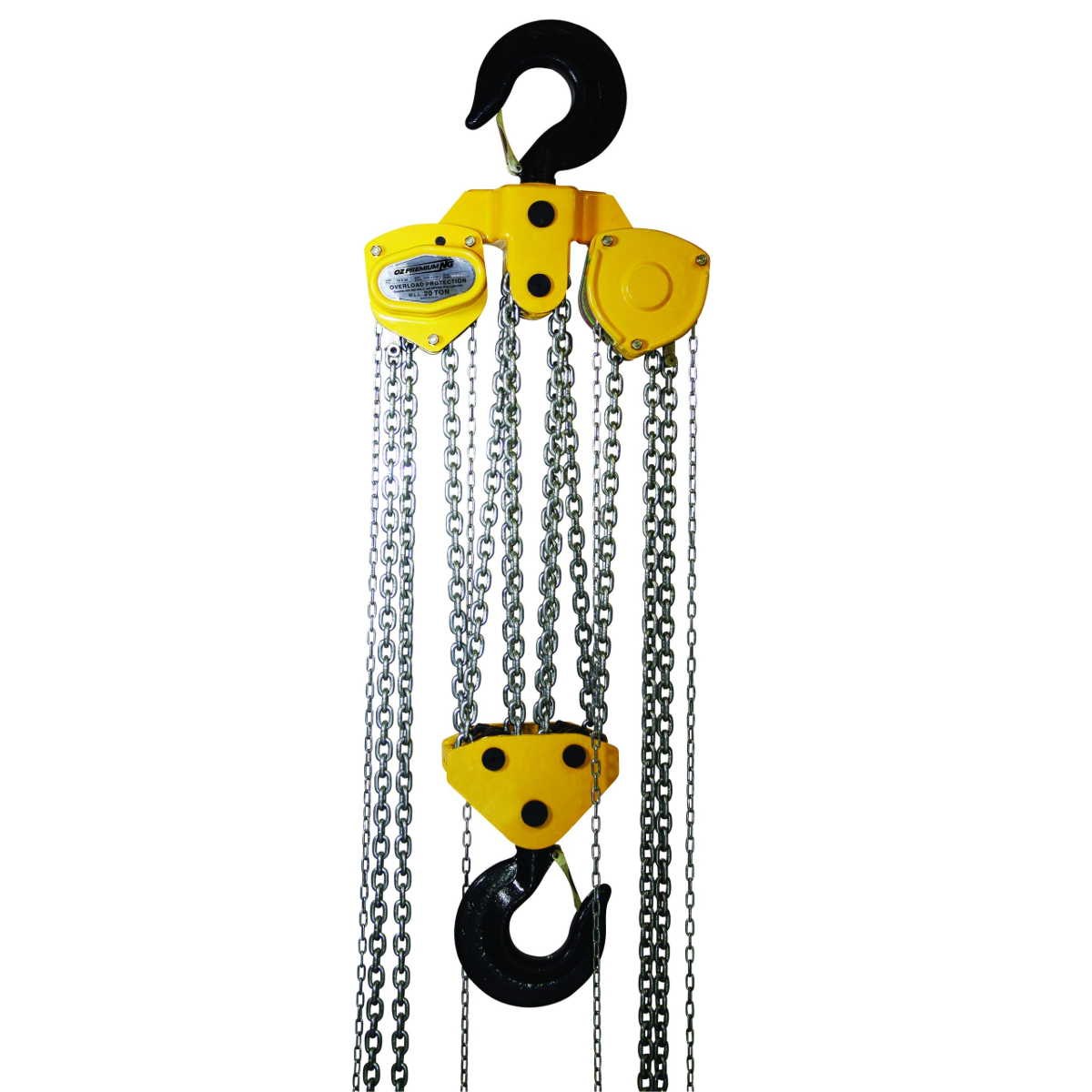

The OZ200-20CHOP Premium Chain Hoist is engineered to handle the most demanding lifting tasks with precision, safety, and ease. With a 20-ton (40,000 lb) capacity and a 20-foot lift height, this manual chain hoist is built to perform in heavy-duty applications such as construction, manufacturing, rigging, and industrial maintenance.

One of its standout features is the Standard Overload Protection, factory-set to engage at approximately 150% of the rated load. This advanced safety feature prevents overexertion of the hoist’s mechanical components, protecting both the operator and the equipment. The double-reduction gearing system ensures smooth and efficient load movement, significantly reducing the manual effort required during operation.

The ergonomic hand-wheel design allows for easy, fluid chain motion from any angle, enhancing versatility and control in tight or awkward spaces. Whether used for vertical lifting or horizontal pulling, this hoist guarantees stability and consistent performance.

Crafted from high-strength, all-steel components, the OZ200-20CHOP is designed to withstand harsh conditions and continuous use. Its Grade 80 zinc-plated alloy load chain delivers exceptional durability and corrosion resistance, while the Weston-style mechanical brake ensures secure load control and precise holding capability. Forged alloy steel hooks with 360° rotation and safety latches provide flexibility and security during load handling.

Each hoist is individually load-tested, tagged with a stainless steel identification plate, and traceable by serial number to verify compliance with ASME B30.16 and OSHA safety standards.

Specifications

• Model: OZ200-20CHOP

• Capacity: 20 Ton (40,000 lbs)

• Lift Height: 20 ft

• Overload Protection: Factory-set to 150% of rated load

• Operation Type: Manual (lifting and pulling)

• Construction: Heavy-duty all-steel housing with corrosion-resistant finish

• Gearing: Double-reduction gearing for smooth, effortless operation

• Load Chain: Grade 80 zinc-plated alloy steel

• Hooks: Forged alloy steel, 360° swivel with safety latches

• Brake System: Weston-style mechanical brake with dual pawls for reliable load holding

• Bearings: Sealed roller bearings to minimize maintenance and extend service life

• Identification: Stainless steel tag with unique serial number and load test record

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 20-ton lifting capacity—ideal for large-scale industrial lifting and rigging

• Standard Overload Protection prevents overloading and enhances operator safety

• Double-reduction gearing minimizes manual effort for easier load handling

• 360° hand-wheel chain design provides smooth operation from any angle

• Heavy-duty all-steel frame ensures exceptional strength and durability

• Grade 80 alloy load chain offers superior tensile strength and corrosion resistance

• Reliable mechanical brake maintains secure load control during lifting and lowering

• Rotating forged hooks improve load positioning and stability

• Individually tested and certified for quality assurance and safety compliance
