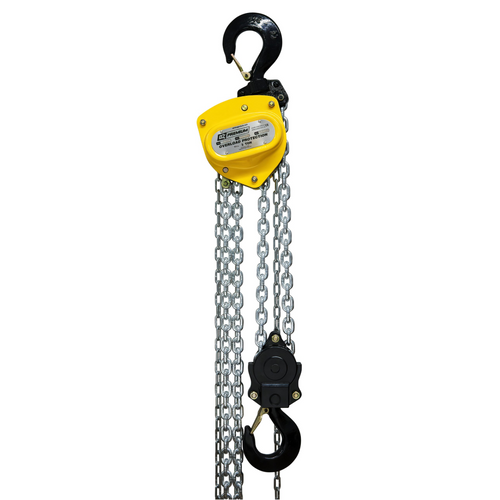

The OZ200-15CHOP Premium Chain Hoist delivers unmatched strength and safety for industrial lifting. Featuring Standard Overload Protection set at approximately 150% of the rated load, this hoist ensures dependable control and operator safety. Designed for both lifting and pulling, it includes double reduction gearing for effortless operation, a precision hand-wheel design for smooth movement from any angle, and rugged all-steel construction for long-term durability.

Product Description

When handling heavy loads safely and efficiently is critical, the OZ200-15CHOP Premium Chain Hoist delivers reliability that professionals can count on. Engineered for maximum performance, this hoist boasts a 20-ton (40,000 lb) capacity and a 15-foot lift height, making it ideal for industrial, construction, and maintenance environments where lifting precision and safety are paramount.

A hallmark of the OZ Premium Hoist line is its Standard Overload Protection—factory-calibrated to activate at around 150% of the rated load. This built-in safeguard prevents accidental overloading and extends the life of internal components, ensuring consistent performance across every operation.

The double-reduction gearing system minimizes manual effort, allowing operators to lift and position heavy loads smoothly and with control. Its ergonomic hand-wheel design ensures seamless chain movement, even when operated from challenging angles or tight spaces. This versatility makes the OZ200-15CHOP a dependable solution for both vertical lifting and horizontal pulling applications.

Built from high-grade, all-steel materials, this hoist is designed for durability and longevity, even in demanding environments. Its Grade 80 zinc-plated alloy load chain provides exceptional tensile strength, while the Weston-style mechanical brake guarantees reliable load holding and controlled lowering. Forged steel hooks with 360° rotation and safety latches enhance safety and flexibility during use.

Each OZ200-15CHOP unit is individually load tested and permanently tagged with a stainless steel identification plate and unique serial number, ensuring full traceability and compliance with safety standards including ASME B30.16 and OSHA.

Specifications

• Model: OZ200-15CHOP

• Capacity: 20 Ton (40,000 lbs)

• Lift Height: 15 ft

• Overload Protection: Factory-set to 150% of rated load

• Construction: Heavy-duty all-steel housing with corrosion-resistant finish

• Operation Type: Manual (lifting and pulling)

• Gearing: Double-reduction gearing for smooth, efficient operation

• Load Chain: Grade 80 zinc-plated alloy steel

• Hooks: Forged alloy steel with 360° rotation and safety latches

• Brake System: Weston-style mechanical brake with dual pawls for dependable load holding

• Bearings: Sealed roller bearings for reduced maintenance

• Identification: Stainless steel ID tag with unique serial number and load test certification

• Compliance: Meets ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 20-ton lifting capacity handles large-scale industrial loads with confidence

• Built-in overload protection enhances safety and prevents mechanical damage

• Double-reduction gearing reduces operator effort for smoother lifting

• Hand-wheel chain design allows effortless multi-angle operation

• Rugged all-steel construction ensures maximum strength and longevity

• High-strength Grade 80 load chain delivers superior wear resistance

• Reliable braking system ensures secure load control during lifting and lowering

• Forged rotating hooks improve load positioning and operator flexibility

• Individually tested and certified for quality and safety assurance
