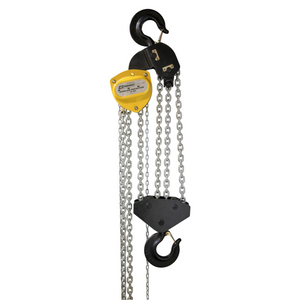

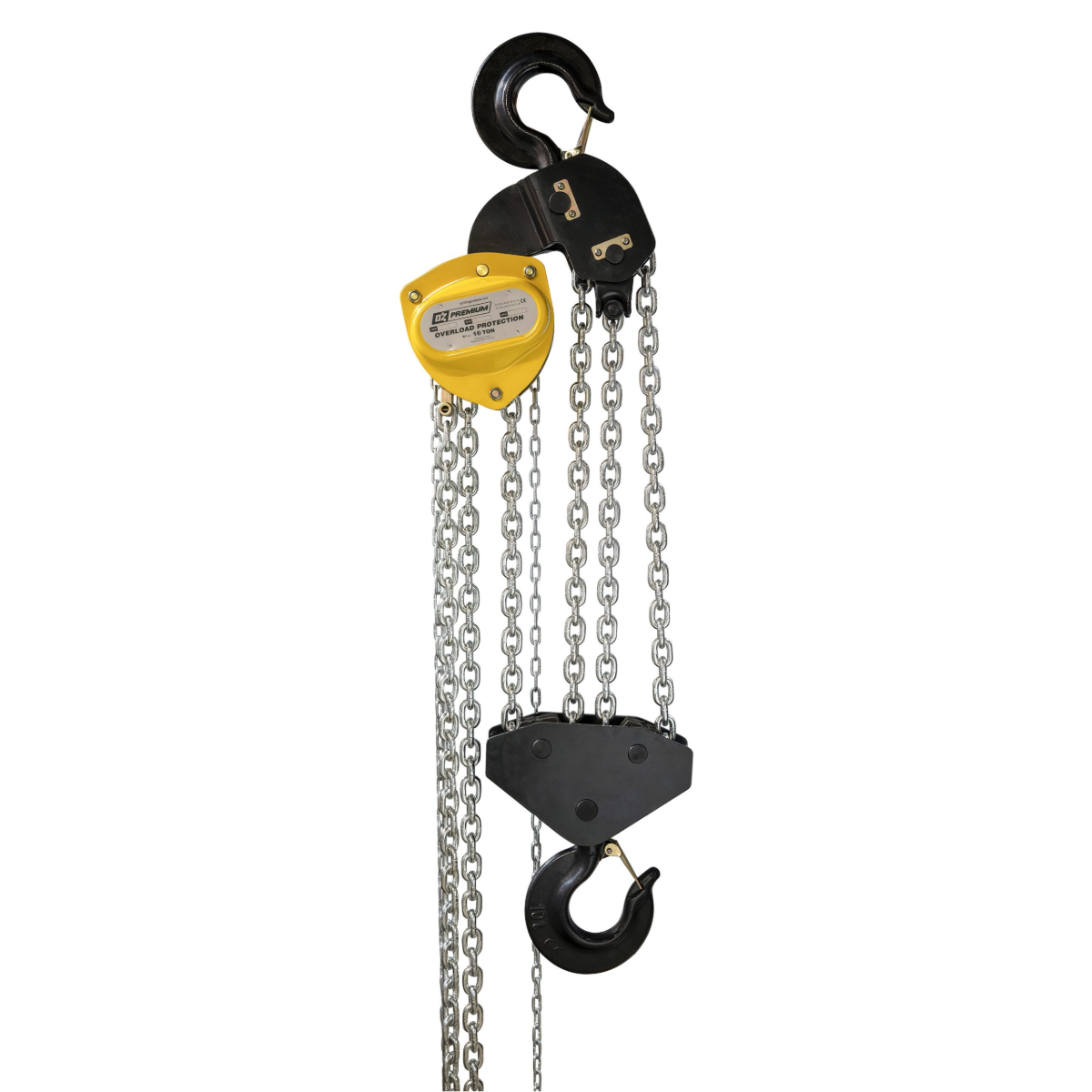

The OZ100-20CHOP Premium Chain Hoist delivers dependable power and superior safety with a 10-ton (20,000 lb) capacity. Designed for both lifting and pulling, it includes Standard Overload Protection set at approximately 150% of the rated load, ensuring maximum safety in operation. With double-reduction gearing for reduced manual effort and a smooth-operating hand-wheel design, this heavy-duty hoist guarantees reliability, control, and durability through its rugged all-steel construction—ideal for industrial and construction environments.

Product Description

When your lifting demands require strength, precision, and safety, the OZ100-20CHOP Premium Chain Hoist is built to deliver. With a massive 10-ton (20,000 lb) capacity, this industrial-grade hoist combines superior performance with advanced engineering to handle the most demanding lifting and pulling operations.

This model features Standard Overload Protection calibrated to approximately 150% of the rated load, a key safety enhancement that prevents damage caused by excessive force. Operators can work confidently knowing the hoist automatically resists overloads, protecting both personnel and equipment. The double-reduction gearing system significantly reduces manual effort, ensuring smooth and efficient operation even under maximum load conditions.

The ergonomic hand-wheel design enables consistent and smooth chain operation from virtually any working angle, improving flexibility in tight or complex setups. Built entirely from heavy-duty, powder-coated steel, this hoist withstands harsh environments, frequent use, and exposure to the elements without compromising performance.

Equipped with a Weston-style mechanical brake system featuring dual pawls, the OZ100-20CHOP ensures steady, controlled load handling and reliable stopping power. The Grade 80 zinc-plated alloy load chain delivers exceptional strength and corrosion resistance, offering dependable, low-maintenance service life. Both forged alloy hooks—top and bottom—rotate 360°, allowing easy load positioning and reducing stress on the chain. The thrust bearing on the lower hook prevents twisting, ensuring smooth load rotation during operation.

Every unit undergoes rigorous load testing and includes a stainless steel ID tag with a unique serial number and test certificate, providing full traceability and compliance with ASME B30.16 and OSHA standards.

Specifications

• Model: OZ100-20CHOP

• Capacity: 10 Ton (20,000 lbs)

• Lift Height: 20 ft

• Overload Protection: Factory set at approximately 150% of rated load

• Construction: Heavy-duty all-steel housing with powder-coated finish

• Gearing: Double-reduction gearing for reduced manual effort

• Brake System: Weston-style mechanical brake with dual pawls

• Operation Type: Manual (lifting and pulling)

• Load Chain: Grade 80 zinc-plated alloy chain, corrosion-resistant

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks

• Lower Hook: Equipped with thrust bearing for smooth rotation

• Safety Latches: Heavy-duty cast steel, bolt-and-lock nut connection

• Bearings: Sealed roller bearings for maintenance-free operation

• Identification: Stainless steel ID tag with unique serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA requirements

Key Features & Benefits

• High-capacity 10-ton performance for demanding industrial lifting tasks

• Standard overload protection ensures safe operation and equipment longevity

• Smooth, low-effort operation via double-reduction gearing system

• Durable all-steel construction for long-term reliability in harsh conditions

• Ergonomic hand-wheel design allows precise chain control from any angle

• Grade 80 alloy chain offers maximum strength and corrosion resistance

• Weston-style brake system provides superior load control and safety

• 360° rotating hooks for flexible, tangle-free load handling

• Fully tested and certified for compliance with industrial safety standards
