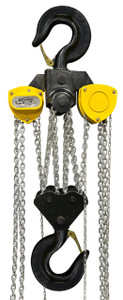

The OZ300-26CHOP Premium Chain Hoist delivers exceptional lifting performance with a 30-ton capacity and Standard Overload Protection set at approximately 150% of the rated load. Engineered for demanding industrial environments, it features double-reduction gearing for effortless lifting, a smooth-operating hand wheel, and rugged all-steel construction for lasting durability and reliability.

Product Description

When your operation demands maximum strength, safety, and dependability, the OZ300-26CHOP Premium Chain Hoist is the tool for the job. Built to handle extreme loads with ease, this hoist boasts an impressive 30-ton (60,000 lb) lifting capacity and 26-foot lift height, making it ideal for heavy-duty industrial lifting, pulling, and positioning tasks across manufacturing, construction, shipbuilding, and rigging applications.

At the core of its safety system is Standard Overload Protection, factory-set to engage around 150% of the rated load, preventing damage and ensuring operator safety. This feature automatically stops operation under excessive strain, preserving both the hoist and the load. Combined with double-reduction gearing, operators experience smooth, controlled lifting with significantly reduced manual effort — even with massive loads.

The innovative hand wheel design allows the chain to move freely from any angle, providing greater flexibility and control in tight or awkward working environments. Its Grade 80 alloy steel load chain, precision-engineered and heat-treated, ensures durability, corrosion resistance, and reliable load handling over years of heavy use.

Constructed entirely from industrial-grade steel, the OZ300-26CHOP offers unmatched ruggedness and stability. Inside, hardened gears and high-quality bearings deliver consistent, low-resistance performance. The mechanical load brake, built with dual pawls and a Weston-style design, provides precise load holding and positive control under all conditions.

Each hoist is individually tested and serialized, guaranteeing compliance with ASME B30.16 and OSHA standards for lifting safety. Designed with both performance and operator comfort in mind, this hoist represents the perfect combination of power, precision, and protection.

Specifications

• Model: OZ300-26CHOP

• Capacity: 30 Ton (60,000 lbs)

• Lift Height: 26 ft

• Overload Protection: Factory-set to activate at ~150% of rated capacity

• Operation Type: Manual (lifting and pulling applications)

• Body Construction: Heavy-duty all-steel housing and frame

• Gearing: Double-reduction gearing for smooth and efficient lifting

• Load Chain: Grade 80 alloy steel, heat-treated and zinc-plated

• Hooks: Forged steel upper and lower hooks with 360° swivel and safety latches

• Brake System: Mechanical Weston-style load brake with dual pawls

• Bearings: Precision roller bearings for consistent performance

• Finish: Corrosion-resistant, industrial-grade coating

• Identification: Stainless steel data plate with serial number and load test certification

• Standards Compliance: Meets or exceeds ASME B30.16 and OSHA safety requirements

Key Features & Benefits

• 30-ton lifting capacity for the toughest industrial tasks

• Standard Overload Protection ensures safe, controlled operation

• Double-reduction gearing reduces manual effort and increases efficiency

• Hand wheel operation allows smooth chain movement from any angle

• All-steel body and components for unmatched durability

• Precision load chain resists stretching and corrosion

• 360° swivel hooks with heavy-duty safety latches for secure rigging

• Positive mechanical braking guarantees reliable load control

• Fully tested and certified for quality and performance assurance
