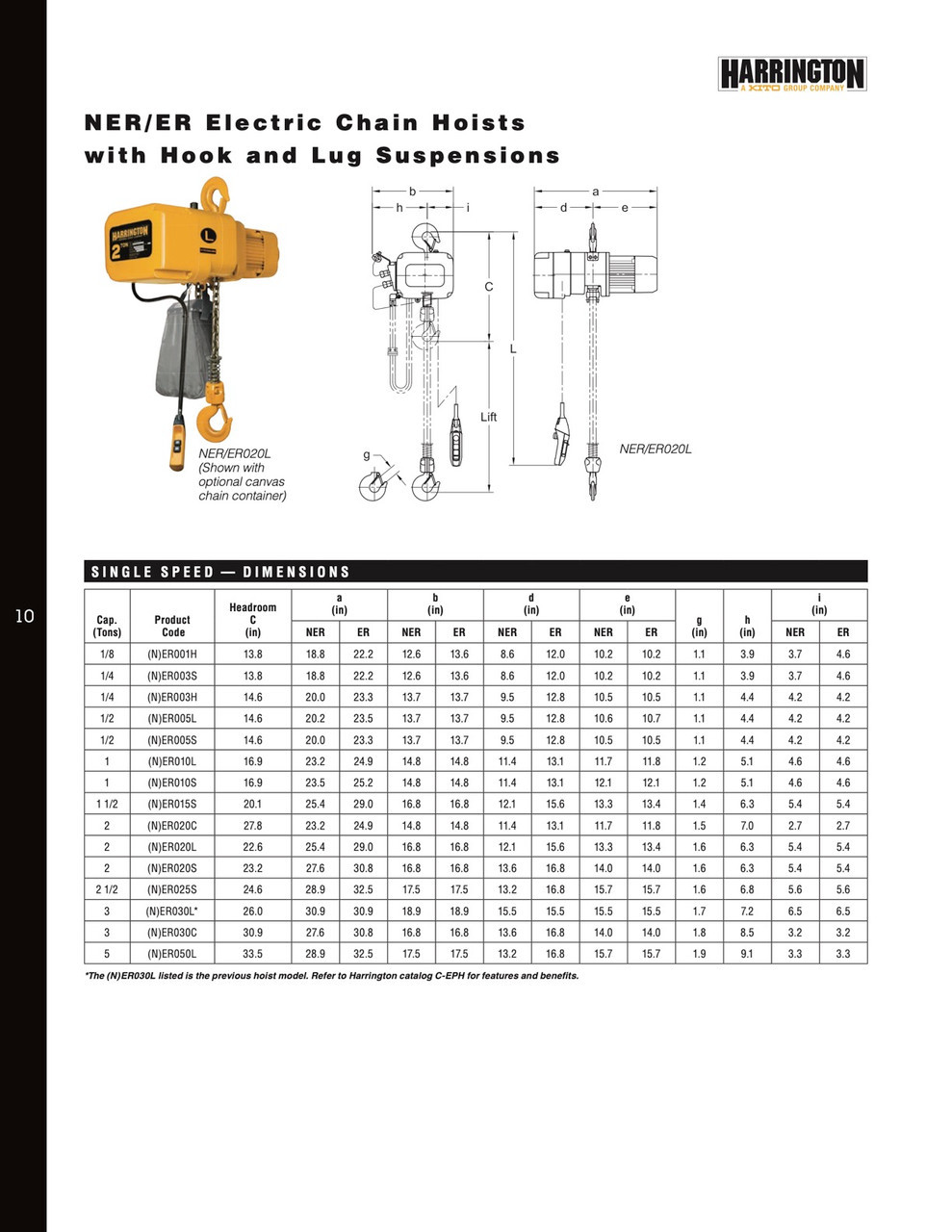

NER Electric Chain Hoist 20' Lift-Capacity 1/4 Tons NER003S Electric Chain Hoist HARRINGTON

Product Overview

The NER003S-20 HARRINGTON Electric Chain Hoist is engineered to deliver exceptional performance and reliability, making it the go-to solution for demanding lifting tasks. With a robust lifting capacity of 1/4 tons, this electric hoist makes short work of even the most formidable challenges in industrial settings.

Built for heavy-duty applications, the NER003S-20 boasts a durable construction that ensures longevity and resilience under pressure. Whether you're lifting equipment on a construction site or managing inventory in a warehouse, this hoist is designed to withstand even the toughest working conditions, providing operators with peace of mind.

Featuring an impressive 20-foot lift capacity, the NER003S-20 allows for effortless elevation of loads to the desired height. This extensive reach is particularly beneficial for tasks that require precision and safety, minimizing strain on workers and enhancing operational efficiency. Its intuitive controls further enhance user experience, ensuring a smooth lifting process while adhering to safety standards.

The advanced engineering behind the HARRINGTON name guarantees that this electric chain hoist will keep pace with your workflow. For those seeking unyielding performance coupled with outstanding reliability, the NER003S-20 stands out as the instrument of choice. Its ability to handle heavy loads with finesse makes it an invaluable asset for any job, allowing you to focus on the task at hand without the worry of equipment failure.

Investing in the NER003S-20 HARRINGTON Electric Chain Hoist means prioritizing reliability, durability, and efficiency. Designed to exceed expectations in various demanding environments, this hoist is ready to take on any heavy-duty lifting challenge. Choose unparalleled quality and transform your lifting operations today with the NER003S-20.

Product Specifications

.

Part Number:

NER003S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 500 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty

Lift Speed:

36 fpm

Housing Width:

12 19/32 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

6 5/8 in

Housing Length:

18 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

12 19/32 in

Body Depth:

6 5/8 in

For Minimum Beam Height:

Not Applicable

Body Length:

18 13/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

13 13/16 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 13/16 in

Motor HP:

0.75 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Clutch:

Friction

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

3.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

36 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

3.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

1.7 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
