Product Overview

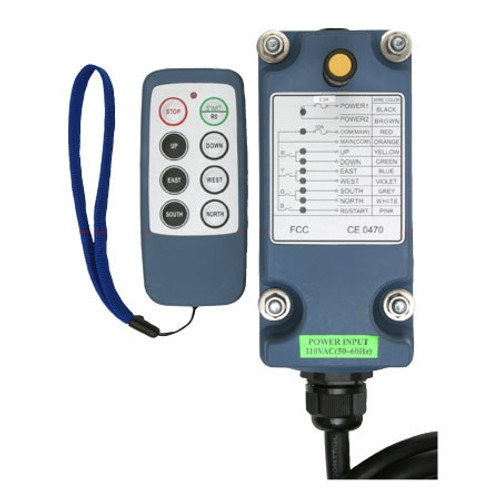

Duct-o-Wire RC-P3M1 Pocket-Sized Industrial Radio Control System
The Duct-o-Wire RC-P3M1 is part of the compact and rugged RC Pocket Series of industrial remote control systems. Designed with mobility and efficiency in mind, this transmitter offers unmatched convenience and control for light-duty, mobile, and industrial machinery. Weighing just one-third of a pound and small enough to fit in a pocket, the RC-P3M1 delivers powerful performance through advanced RF circuitry and intelligent features. It is built for demanding environments, including high-vibration, heavy-duty applications, and extreme temperatures. The RC-P3M1 features intuitive controls and long battery life, ensuring reliable field operation and reduced maintenance downtime via remote ID configuration. It's the perfect compact solution for industrial professionals seeking durability and performance.
Product Specifications:
Transmitter (RC-P3M1):
- Dimensions: 4.72" (L) x 2.17" (W) x 1" (H)
- Weight: ~1/3 lb (with batteries)
- Power Supply: 2 AA alkaline batteries
- Battery Life: Up to 3 months (typical use)
- Buttons: 4, 6, or 8 pushbuttons (1-step function)
- Output Power: ≤ 4 mW
- Power Consumption: ≈ 10 mA
- Frequency Modulation: Yes
- Enclosure: IP65 rated (fiberglass/ABS)
- Temperature Range: -49°F to +176°F
- Built-in Features:
- Low-power LED indicator
- Pushbutton jammed detection
- Shock-resistant construction
Receiver:
- Dimensions: 6.34" (L) x 2.91" (W) x 2.05" (H)
- Weight: 2.43 lbs
- Power Supply: AC 110V or DC 12-24V (AC standard; consult factory for DC)
- Relay Rating: 10A @ 250VAC / 15A @ 32VDC*
- Sensitivity: ≈ -105 dBm
- Shock-resistant mounting feet
- ID Code: 32-bit, over 4.1 billion combinations
- Remote ID Configuration: Yes
System Features:
- Operating Range: Up to 300+ feet

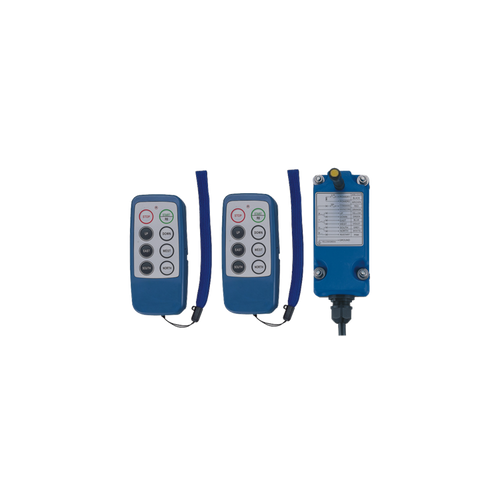

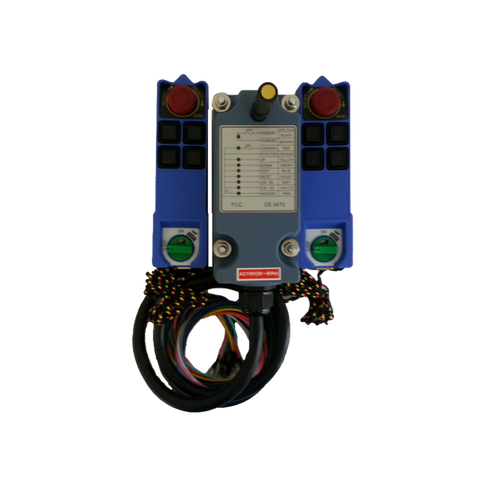

- Start/Stop Functionality: Supports 2 transmitters with 1 receiver
- Licensing: FCC Part 15 compliant, license-free operation
- Applications: Light-duty, mobile, and industrial equipment, especially where space and portability are critical
