Product Overview

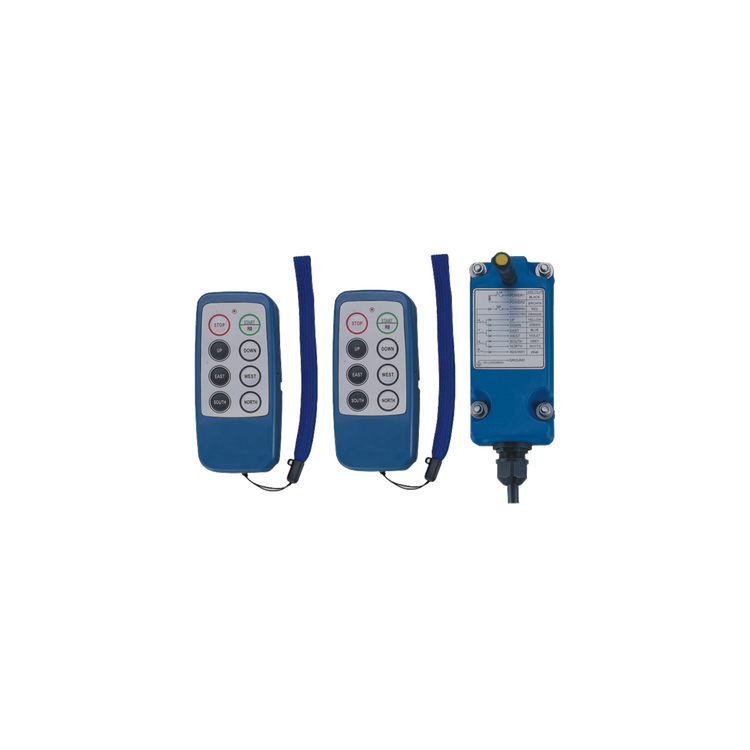

Duct-o-Wire RC-P2M1 Pocket Series Radio Control System
Product Description
The Duct-o-Wire RC-P2M1 is a compact, durable, and cost-effective industrial radio control transmitter, designed specifically for light-duty, mobile, and industrial applications. As part of the RC Pocket Series, it stands out as one of the smallest industrial-grade transmitters on the market, allowing for improved maneuverability, reduced operator fatigue, and ease of use in tight or high-vibration environments.
Despite its small size, the RC-P2M1 offers outstanding versatility and rugged performance. It features 4 pushbuttons with single-step functionality and incorporates advanced RF technology, a highly durable enclosure, and a long operating range—making it ideal for high-demand, mobile operations.
Product Specifications
General Features
-
Compact, lightweight design (approx. 1/3 lb.)
-
Industrial-grade, shock-resistant construction
-
Fiberglass/ABS enclosure rated to IP65
-
Exceptionally low power consumption — up to 3 months operation on 2 AA batteries
-
Working temperature range: -49°F to +176°F
-
Advanced 32-bit ID coding with over 4.1 billion unique codes
-
Remote ID setting for quick on-site maintenance
-
Long-distance operation: up to 300+ feet
-
FCC Part 15 unlicensed operation
-
Built-in pushbutton jammed detection and low battery indicator
-
Designed for high-vibration and mobile environments
Transmitter Specifications (RC-P2M1)
-
Dimensions: 4.72" L x 2.17" W x 1.00" H
-
Weight: ~1/3 lb. (with batteries)
-
Buttons: 4 pushbuttons, 1-step operation
-
Power Supply: 2 AA alkaline batteries
-
Power Consumption: ≈10 mA
-
Output Power: ≤ 4 mW
-
Frequency Modulation
-
Low Battery Indicator: Red LED flashing
-
Built-in Shock Resistance
Receiver Specifications
-
Dimensions: 6.34" L x 2.91" W x 2.05" H
-
Weight: 2.43 lbs.
-
Power Supply: AC 110V / DC 12–24V
-
Relay Rating: 10A @ 250VAC or 15A @ 32VDC (Consult factory for DC configuration)
-
Sensitivity: ~-105 dBm
-
Mounting: Shock-resistant feet
