Product Overview

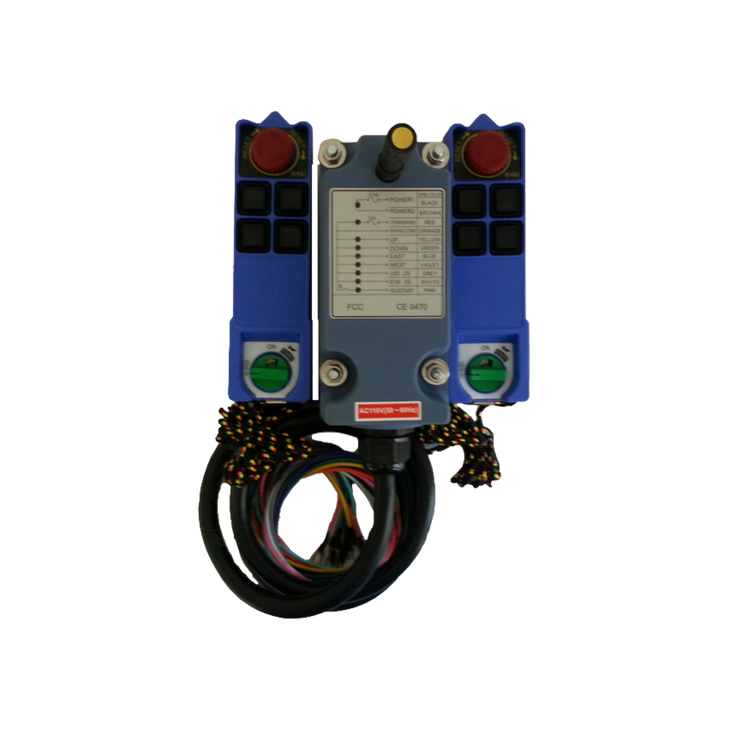

Duct-o-Wire RC-3M1 Wireless Radio Control System
Compact. Reliable. Built for Simplicity.
Product Overview
The Duct-o-Wire RC-3M1 is a wireless radio control system built for smaller, straightforward applications like light-duty cranes, hoists, and monorails. It features a six-button, single-step control layout, offering basic directional control (Up, Down, East, West, North, South), along with a Start key and Emergency Stop (EMS) for added safety.
Housed in a rugged, IP65-rated enclosure, the RC-3M1 is lightweight (only 250g) and easy to operate in any industrial environment—even under harsh temperatures or high-vibration conditions. With a 300-foot range, extended battery life, and straightforward setup, it delivers dependable performance without the complexity.
Key Features
-
1-Step Pushbutton Control:
6-directional functions (Up, Down, East, West, North, South) + EMS + Start -
Long Operating Range:
Wireless signal range of 300+ ft (approx. 100m) -
Low Power Consumption:
Operates for up to 3 months on two AA batteries -
Rugged Industrial Build:
Lightweight 250g transmitter with IP65 water/dust-resistant casing -
Advanced RF Technology:
-
Over 4 billion unique ID codes
-
Hamming code error protection
-
Remote ID setting for easy maintenance and setup
-
-
Temperature Ready:
Operates reliably in extreme conditions: -45°C to +80°C -
Flexible Power Options (Receiver):
-
AC: 48/110V, 48/200V, 110/220V, 220/380V VAC
-
DC: 12–24V (available on request)
-
-
Package Includes:
-
2 Transmitters
-
1 Receiver
-
-
Designed For:
Light-duty cranes, hoists, monorails, and mobile/industrial equipment with basic control needs.
