Product Overview

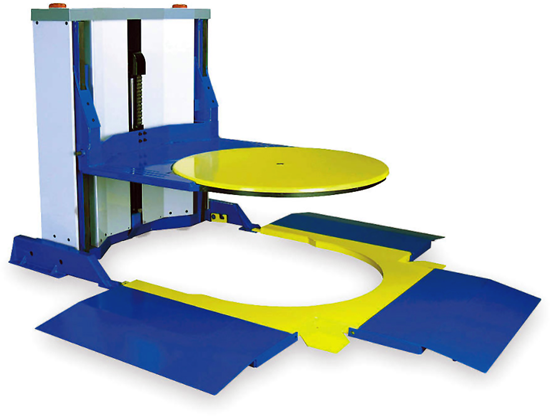

Bishamon® EZ Off Lifter® EZO-25E-3S
Low-profile electric Lift with 3-sided Access
Maximize Ergonomics. Streamline Workflow. Built to Perform.
The Bishamon EZ Off Lifter® EZO-25E-3S is an innovative, electric-powered ergonomic lift table designed for safe and efficient handling of open-bottom pallets, skids, and containers. With its three open approach sides, this model provides unmatched flexibility and Access, allowing operators to load, unload, and rotate pallets from multiple directions—ideal for tight workspaces and team-oriented stations.
The EZO-25E-3S features an ultra-low 3/8-inch platform height, eliminating the need for a pit or ramp and enabling direct floor loading. It includes a 360-degree rotating turntable, electric push-button lift, and automatic pallet retention bars for improved safety. Built for industrial-grade performance, this unit helps reduce operator fatigue and increase productivity across a range of applications.
Key Features
- Three-Sided Access – Provides loading/unloading flexibility for multi-operator work areas
- Ultra-Low Profile Platform – Just 3/8 in. lowered height enables ground-level loading
- Electric Hydraulic Lift – Smooth, push-button lift for precise height adjustment
- 360° Rotating Turntable – Enhances efficiency by eliminating the need to walk around the pallet
- Automatic Restraint Bars – Engage when lowered to secure pallets during loading
- Heavy-Duty Steel Construction – Supports heavy loads and withstands industrial use
- No Pit Required – Freestanding design fits into most work cells and layouts
- Removable Ramp – Included for optional use when needed
- Compact Footprint – Optimized for tight or high-traffic areas
Benefits
- Enhances Ergonomics – Minimizes bending, reaching, and lifting
- Reduces Injury Risk – Designed to support safe manual handling practices
- Speeds Up Workflows – 3-sided Access and rotating platform improve load handling
- Boosts Versatility – Ideal for packaging, palletizing, assembly, and inspection tasks
- Maintenance-Friendly – Durable components, minimal service required
Technical Specifications – EZO-25E-3S
SpecificationDetails
Model EZO-25E-3S
Capacity 2,500 lbs (1,135 kg)
Platform 43-inch diameter rotating turntable
Lowered Height 0.38 inches (3/8 inch)
Raised Height 27.25 inches
Power Source 115V AC, single-phase
Lift Type Electric hydraulic lift
Control Push-button pendant
Ramp Included, removable
Approach Sides Three open-access sides
Restraint System Automatic pallet retainers
Construction Powder-coated heavy-duty steel
Weight Approx. 1,250 lbs
Recommended Use Warehousing, order fulfillment, packaging lines, assembly stations
