Product Overview

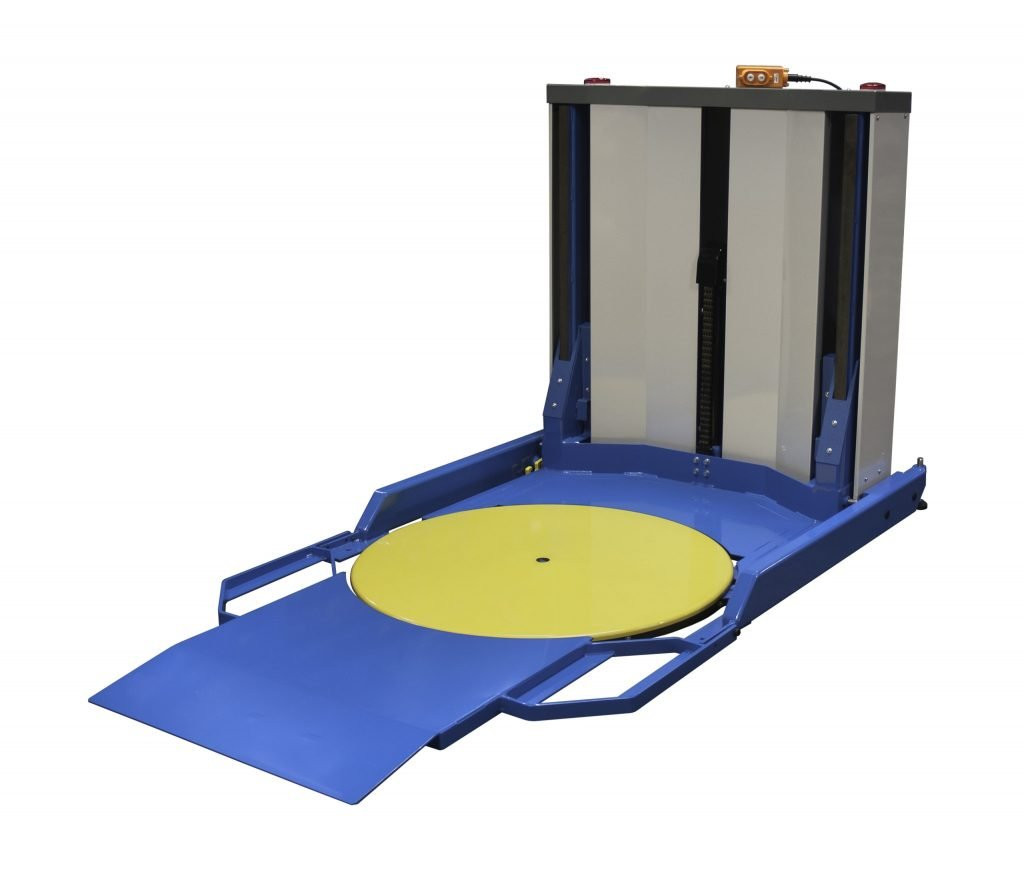

Bishamon EZO-25E EZ Off Lifter – Electric Lift
Low-Profile Lifting. Ergonomic Excellence. Built for Efficiency.
The Bishamon EZO-25E is a high-performance, electric-powered EZ Off Lifter engineered to deliver safe, ergonomic handling of open-bottom pallets, skids, and containers. Its ultra-low 3/8-inch lowered height allows for direct floor loading without the need for ramps or pallet jacks, making it ideal for manual palletizing, assembly, and packaging operations.
Featuring an integrated rotating turntable and built-in ramp, the EZO-25E allows workers to load or unload from any side without bending, stretching, or walking around the pallet. The electric lift mechanism provides precise vertical positioning at the push of a button, reducing fatigue and improving throughput.
Key Features
- Ultra-Low Profile Design – 3/8-inch lowered height allows direct pallet access
- Electric Lift Operation – Smooth, powered vertical positioning via push-button pendant
- 360° Rotating Turntable – Enables full pallet access from any side
- Removable Ramp – Eases pallet positioning and access
- Open Base Design – Accommodates open-bottom skids and containers
- Safety Retention Bars – Automatically engages when the platform is lowered
- Solid Steel Construction – Built to withstand industrial use
- Ergonomic Benefits – Reduces bending, reaching, and manual lifting
- No Pit Required – Freestanding installation on any solid surface
- Clean, Compact Footprint – Fits seamlessly into most workstation layouts
Benefits
- Increases Worker Safety: Keeps work at optimal height to prevent strain
- Boosts Productivity: Allows quick, safe, and comfortable access to loads
- Energy-Efficient: Electric lift with low power consumption
- Minimal Maintenance: Simple, durable design with sealed components
- Ideal for Repetitive Tasks: Perfect for manufacturing lines, packing stations, and fulfillment centers

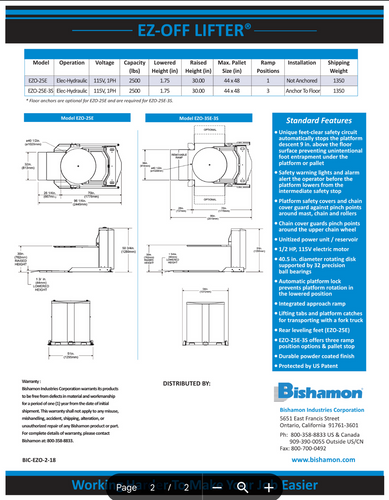

Technical Specifications – EZO-25E
SpecificationDetails
Model EZO-25E
Capacity 2,500 lbs (1,135 kg)
Platform Diameter 43 inches (rotating turntable)
Lowered Height 0.38 inches (3/8 inch)
Raised Height 27.25 inches
Power Source 115V AC, single-phase
Lift Type Electric hydraulic lift
Control Type Push-button pendant
Ramp Included Yes (removable, steel)
Turntable Rotation 360°, manual
Construction Heavy-duty steel, powder-coated finish
Weight Approx. 1,200 lbs
Applications Manufacturing, assembly, packaging, order fulfillment, ergonomic workstations
