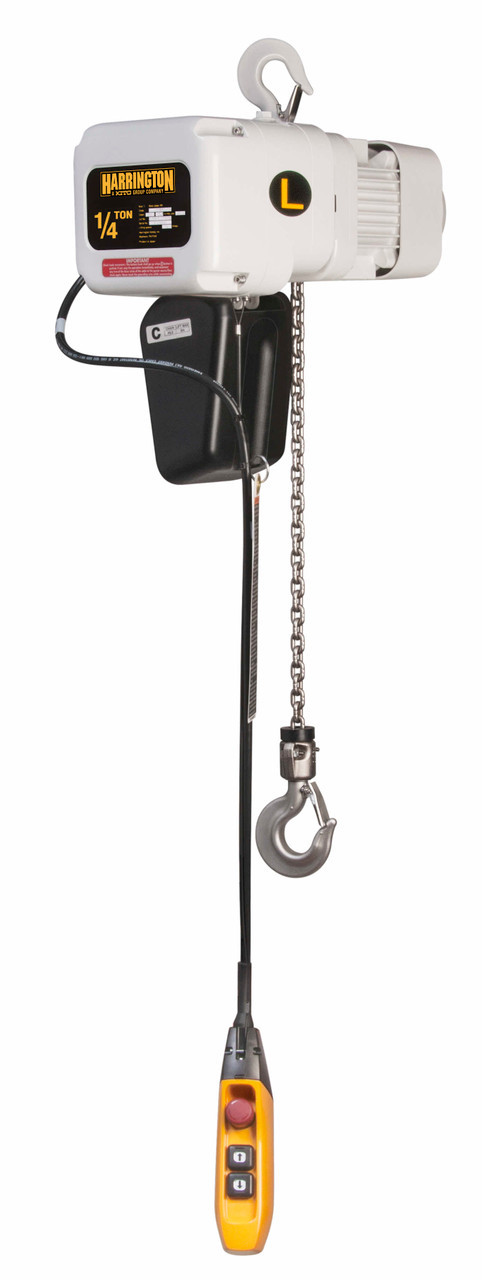

NER-FG Food Grade Electric Chain Hoist 10' Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

Product Overview

The NER003L-FG-10 HARRINGTON NER-FG Food Grade Electric Chain Hoist is an essential tool for the food processing and packaging industry. This hoist is specially designed to meet the rigorous demands of the food industry and is built with food-grade materials to ensure the safety and purity of your products.With a lift capacity of 10', this hoist is capable of lifting loads ranging from 1/4 to 2 tons, making it versatile and suitable for a wide range of applications. Whether you need to lift heavy sacks of ingredients or maneuver delicate packaging materials, this hoist can handle the task with ease.The electric-powered operation of the NER003L-FG-10 adds convenience and precision to your workflow. With the push of a button, you can lift and lower loads smoothly and efficiently, saving time and effort. The electric power also allows for cleaner and quieter operation compared to traditional manual hoists.Harrington's NER-FG hoist is known for its exceptional performance and compliance with food safety standards. The food-grade materials used in its construction ensure that your products remain safe and free from contaminants. This is crucial in the food industry where product safety and quality are of utmost importance.In addition to its reliable and efficient operation, the NER003L-FG-10 is also designed for durability and longevity. It is built to withstand the demanding environments of food processing and packaging facilities, ensuring that it will continue to perform reliably year after year.Overall, the NER003L-FG-10 HARRINGTON NER-FG Food Grade Electric Chain Hoist is a high-quality and dependable tool that will enhance the efficiency and safety of your food processing or packaging operations. Invest in this hoist and experience peace of mind knowing that you are using a product that meets the highest standards of food safety and performance.

Product Specifications

.

Part Number:

NER003L-FG-10

Color:

White

Hoist Lift:

10 ft

Product:

Electric Food Grade Chain Hoist, 500 lb, 10 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cord

Lift Speed:

15 fpm

Housing Width:

8 1/2 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

13 13/16 in

Housing Length:

13 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 1/2 in

Body Depth:

13 13/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

13 13/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

13 13/16 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 13/16 in

Motor HP:

0.75 hp

Phase:

3

Standards:

ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Food Grade Oil

Reeving:

1

Thermal Protection:

Yes

Brake:

DC Current

Control Cord:

6 ft

Amps @ Low Volts:

3.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Epoxy Painted

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

3.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.4 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
