Product Overview

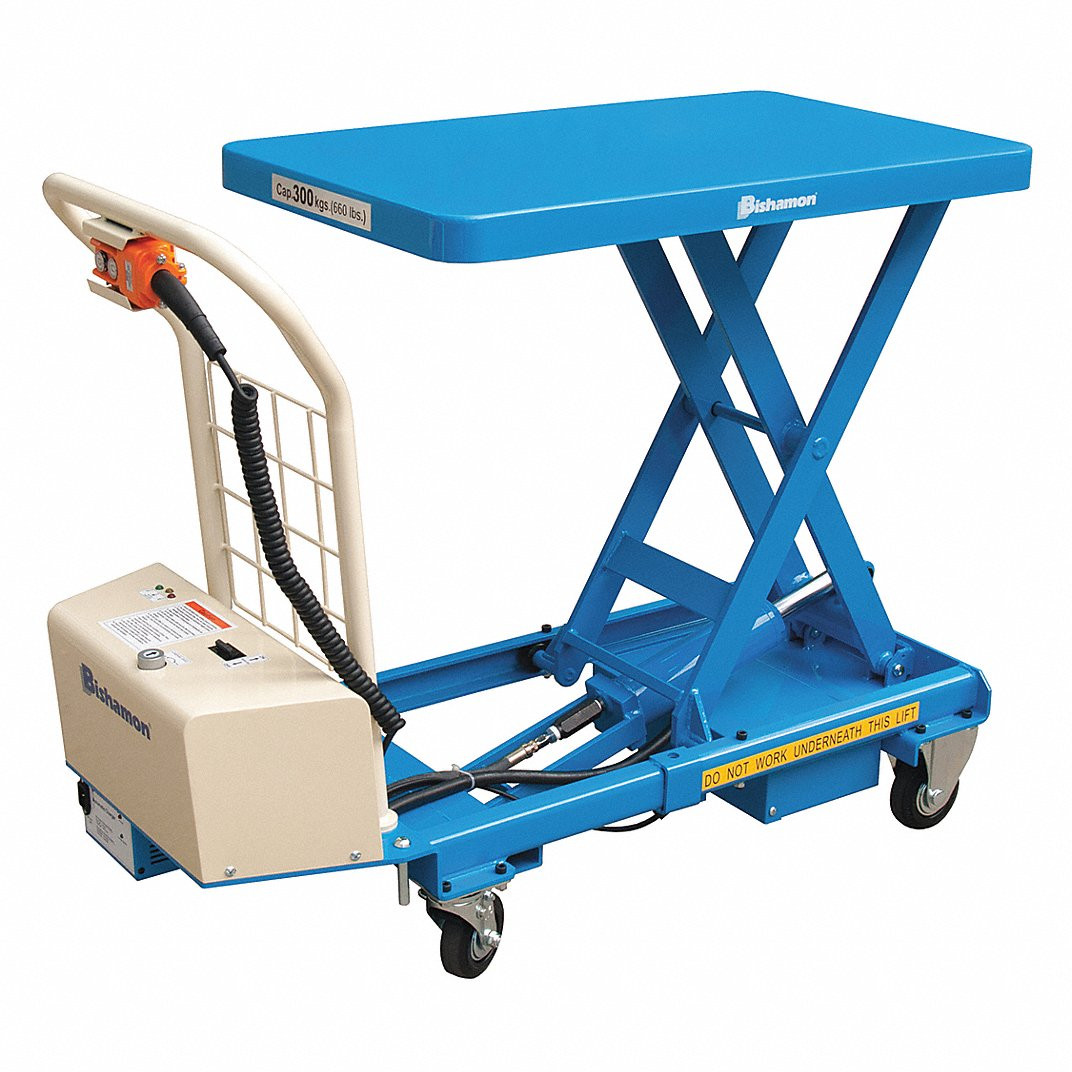

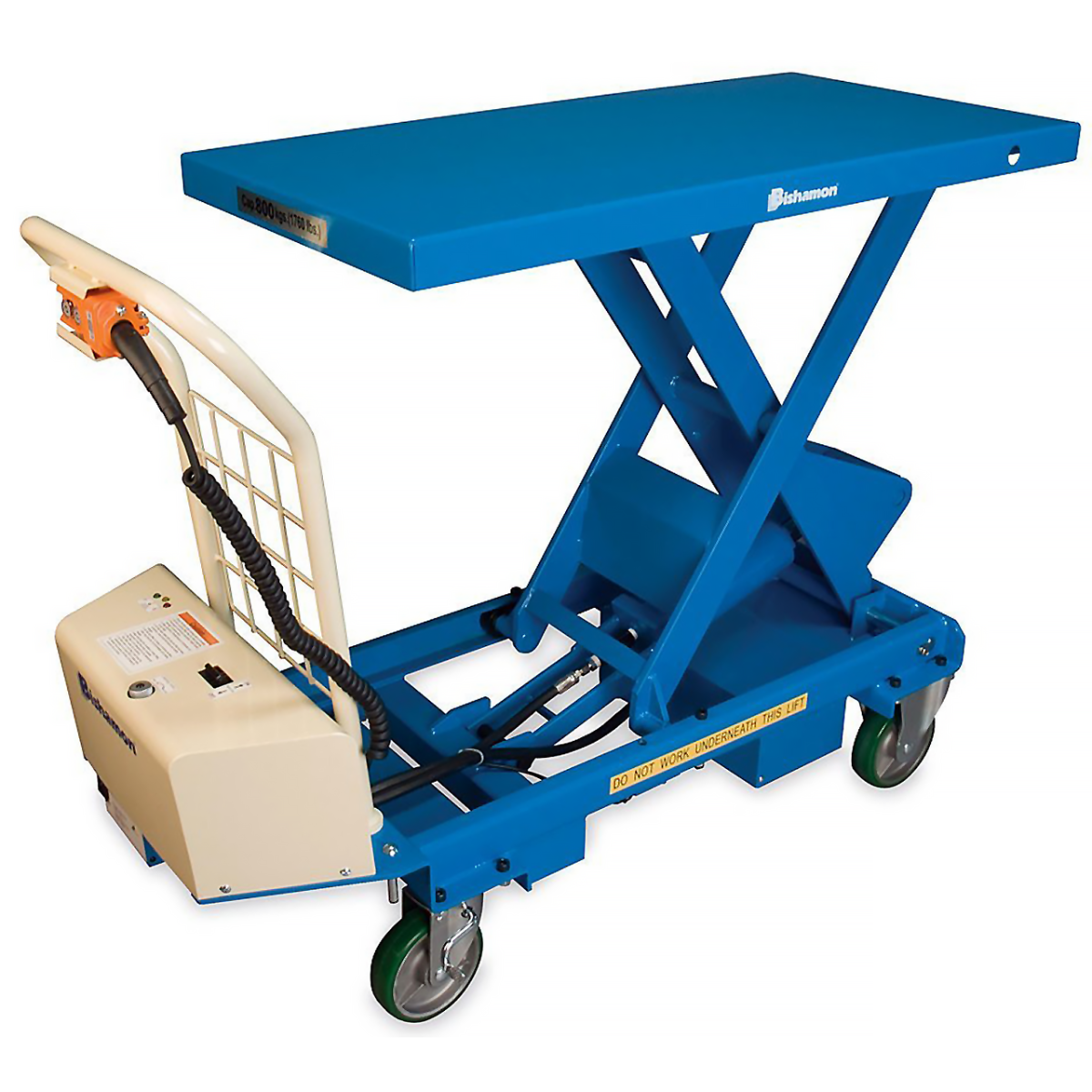

Bishamon BX-30B – Powered Mobile Scissor Lift Table
Effortless Lifting. Ergonomic Design. Powered Performance.
The Bishamon BX-30B is a battery-powered, mobile scissor lift table designed to safely and efficiently handle medium-duty lifting tasks in material handling, manufacturing, packaging, and warehouse environments. With a 660 lb (300 kg) load capacity, this powered lift table combines the convenience of electric lifting with the flexibility of manual mobility, allowing operators to raise loads at the push of a button and transport them without strain.
Made with 13-gauge steel, a solid platform, and heavy-duty polyurethane wheels, the BX-30B offers exceptional durability and maneuverability. It's scissor lift mechanism provides a wide range of vertical travel, making it easy to position loads at the ideal working height while minimizing bending and lifting injuries.
Key Features
- 660 lb Load Capacity – Perfect for medium-duty lifting and positioning
- Electric Hydraulic Lift – Push-button operation powered by onboard battery
- Manual Push Mobility – Easily moved with an ergonomic handle and smooth-rolling wheels
- Wide Lift Range – Raises from 11.5" to 35" for versatile material handling
- Solid Steel Platform – 13-gauge steel for rugged and stable load support
- Durable Polyurethane Wheels – Two swivel with brakes, two rigid for smooth, secure movement
- Onboard Battery Charger – Includes 10-ft cord for convenient recharging
- Raised Handle with Side Pedal Brakes – Comfortable control and added safety
- Mobil DTE Light Hydraulic Fluid – Ensures smooth and consistent lift performance
Benefits
- Reduces Operator Fatigue – Eliminates manual pumping with electric lift
- Improves Workflow Efficiency – Quick and precise height adjustments
- Built for Demanding Use – Ideal for assembly lines, stockrooms, and production floors
- Safe and Ergonomic – Enhances worker safety and comfort during repetitive tasks
Technical Specifications – Bishamon BX-30B
SpecificationDetails
Model BX-30B (Powered)
Load Capacity 660 lbs (300 kg)
Platform Dimensions 32.25" L x 19.75" W
Minimum Height 11.5 inches
Maximum Height 35 inches
Platform Material Steel, 13-gauge
Lift Mechanism Hydraulic, powered
Operation Push-button control
Power Source DC Battery, onboard charger (10 ft cord)
Frame Material Steel
Wheel Diameter 6 inches
Wheel Configuration (2) Swivel w/ Brake, (2) Rigid
Wheel Material Polyurethane tread on core
Brake Type Side pedal brake
Handle Type Raised, ergonomic
Handle Height 34.5 inches
Overall Dimensions 34.5" L x 19.75" W x 34.5" H
Hydraulic Fluid Mobil DTE Light
