Product Overview

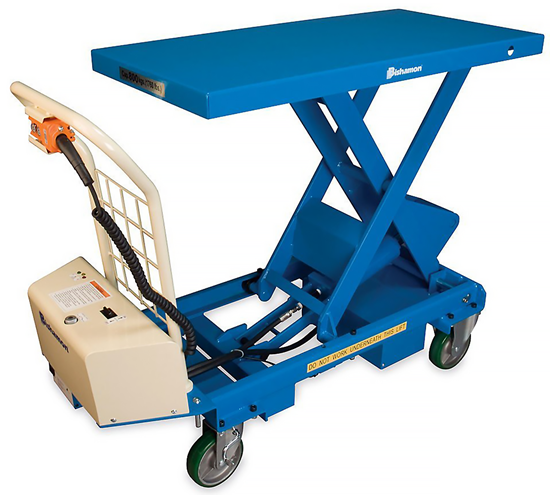

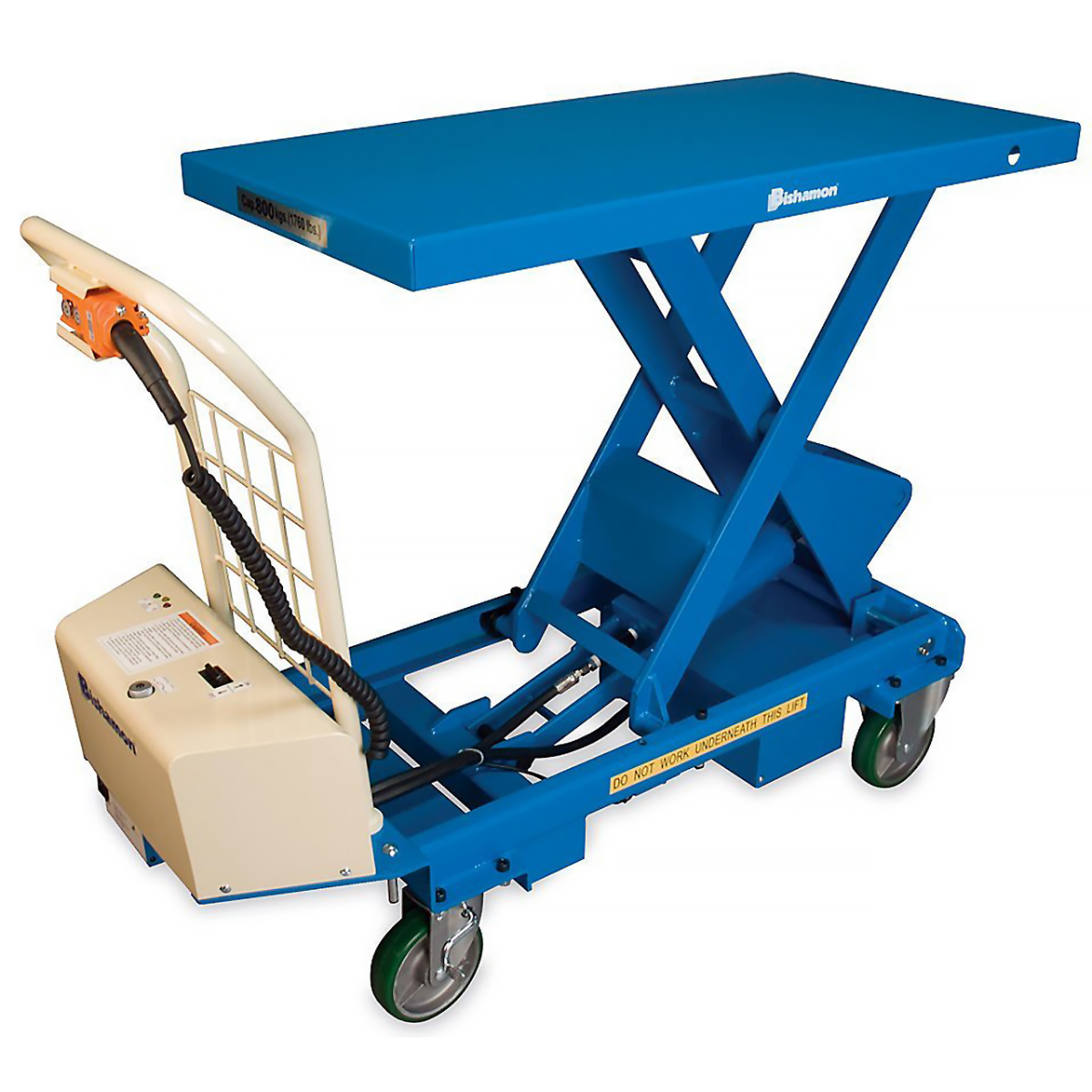

Bishamon BX-50B – Powered Mobile Scissor Lift Table
Heavy-Duty Lifting. Powered Precision. Industrial Durability.
The Bishamon BX-50B is a powered mobile scissor lift table engineered for heavy-duty material handling applications that require safe, efficient, and ergonomic load positioning. With an impressive 1,100 lb (500 kg) load capacity, this battery-operated lift table delivers smooth, push-button hydraulic lifting and effortless transport in warehouses, production lines, packaging areas, and more.
Built with a rugged steel frame and solid 13-gauge steel platform, the BX-50B is designed to withstand demanding daily use. The scissor mechanism provides a generous lifting range of 11.5 to 35 inches, helping operators work at comfortable, efficient heights. It features an onboard charger, polyurethane wheels, and a reliable braking system to ensure safety, mobility, and productivity.
Key Features
- 1,100 lb Capacity – Handles heavy loads with stability and ease
- Battery-Powered Hydraulic Lift – Smooth vertical motion with push-button control
- Manual Push Operation – Ergonomic handle and premium wheels ensure smooth mobility
- Wide Lift Range – Platform adjusts from 11.5" to 35" for ergonomic working positions
- Durable Steel Construction – 13-gauge solid steel platform with powder-coated finish
- Polyurethane Wheels – Quiet, non-marking, and ideal for various floor surfaces
- Onboard Battery Charger – Includes 10-ft cord for convenient recharging
- Swivel Casters with Brakes – Locks table in place securely during loading and unloading
- Clean and Professional Finish – Built for both industrial performance and workplace appearance
Benefits
- Reduces Lifting Injuries – Brings loads to the ideal working height
- Improves Efficiency – Fast, reliable lift action with minimal effort
- Long-Lasting Performance – Bishamon quality built for intensive use
- Easy to Use and Maintain – Minimal training needed for operation
Technical Specifications – Bishamon BX-50B
SpecificationDetails
Model BX-50B
Load Capacity 1,100 lbs (500 kg)
Platform Size 32.25" L x 19.75" W
Lowered Height 11.5 inches
Raised Height 35 inches
Platform Material Steel, 13-gauge
Lift Mechanism Powered hydraulic (push-button)
Power Source DC Battery (Onboard charger, 10-ft cord)
Handle Height 34.5 inches
Wheel Diameter 6 inches
Wheel Type Polyurethane tread on the core
Wheel Configuration 2 swivel with brake, 2 rigid
Brake Type Side pedal brake
Frame Material Welded steel
Finish Durable powder coat
Fluid Type Mobil DTE Light
Overall Dimensions 34.5" L x 19.75" W x 34.5" H
