Product Overview

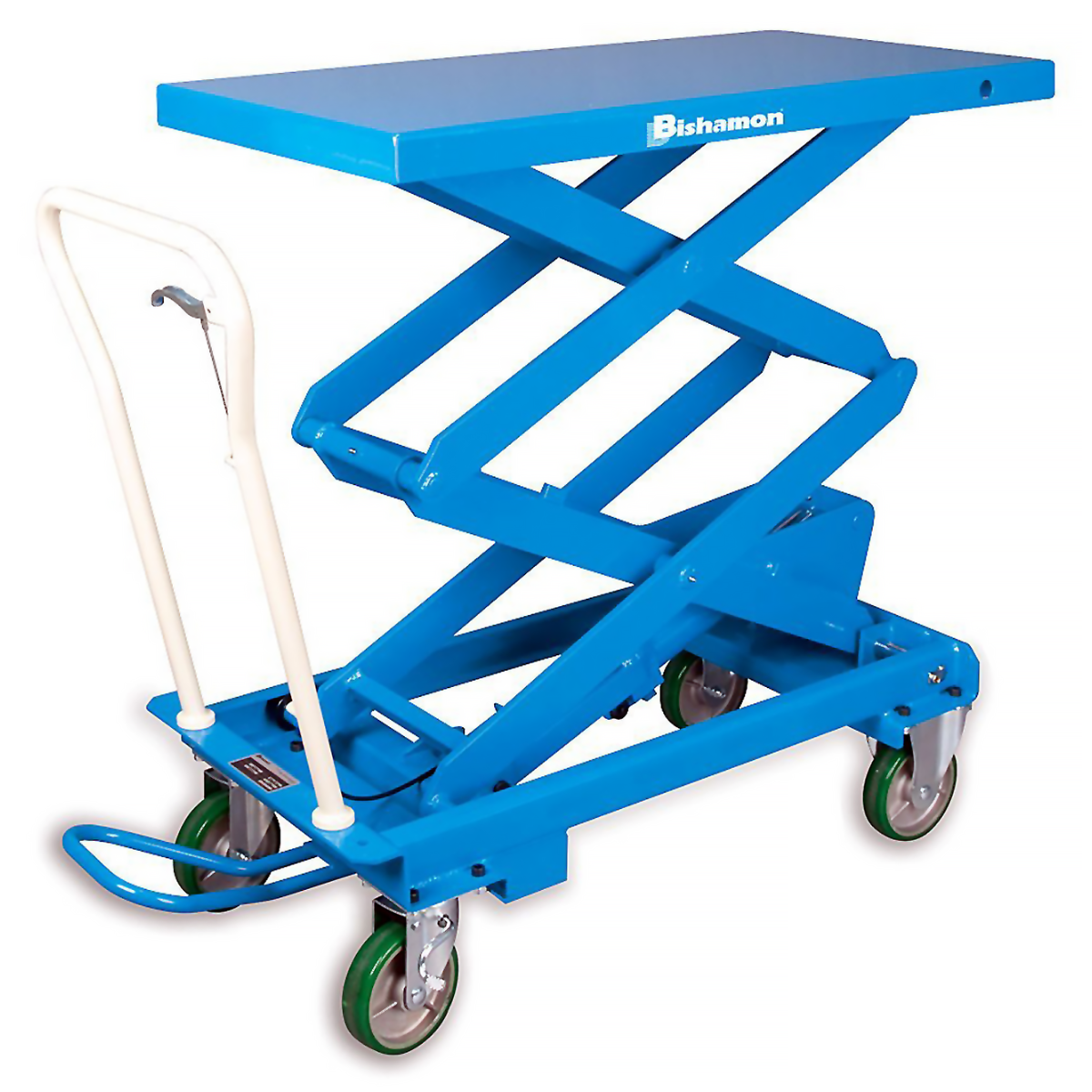

Bishamon BX-50W – Wide-Deck Mobile Scissor Lift Table
Wider Platform. Heavy-Duty Capacity. Ergonomic Material Handling.
The Bishamon BX-50W is a wide-deck mobile scissor lift table specifically designed for lifting and transporting larger or bulkier loads. With a 1,100 lb (500 kg) capacity and a wider 24-inch platform, this lift table provides added surface area and increased stability for improved material handling in manufacturing, warehousing, maintenance, and production settings.
It features a manual foot-operated hydraulic pump for safe and efficient lifting, along with a heavy-duty steel frame and industrial-grade casters for smooth mobility. The BX-50W is built for demanding environments where load size and ergonomics matter.
Key Features
- 1,100 lb Load Capacity – Handles heavy loads with confidence
- Wider Platform (24") – Ideal for oversized items or improved load distribution
- Manual Hydraulic Operation – The foot pump enables hands-free, controlled lifting
- Heavy-Duty Steel Construction – Built for long-term industrial use
- Four Casters for Mobility – 2 swivel casters with brakes and 2 fixed for stable transport
- Ergonomic Handle – Designed for comfortable maneuvering and control
- Durable Powder-Coated Finish – Industrial-grade coating resists wear and corrosion
Benefits
- Improves Workplace Ergonomics – Reduces bending and lifting strain
- Boosts Material Flow Efficiency – Simplifies transport between stations
- Supports Larger Items – A wider platform improves load balance and safety
- Versatile and Mobile – Great for varied environments without needing power
Technical Specifications – Bishamon BX-50W
SpecificationDetails
Model BX-50W
Capacity 1,100 lbs (500 kg)
Platform Size 24" x 36"
Lowered Height 13.5 inches
Raised Height 36.5 inches
Lift Mechanism Manual foot-operated hydraulic pump
Casters 2 swivel (with brakes), 2 fixed
Construction Welded heavy-duty steel frame
Finish Blue powder-coated enamel
Weight Approx. 270 lbs
Applications Assembly, warehouses, parts handling, repair stations, production floors
