Product Overview

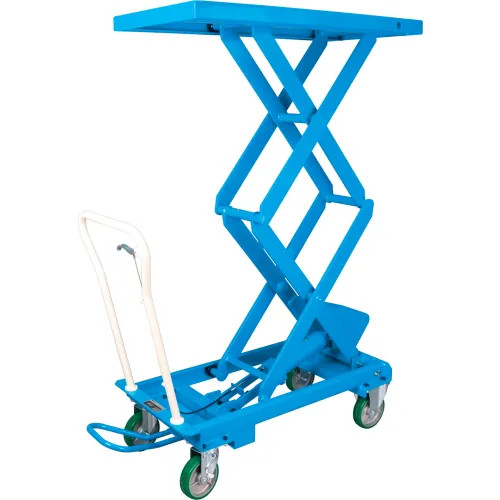

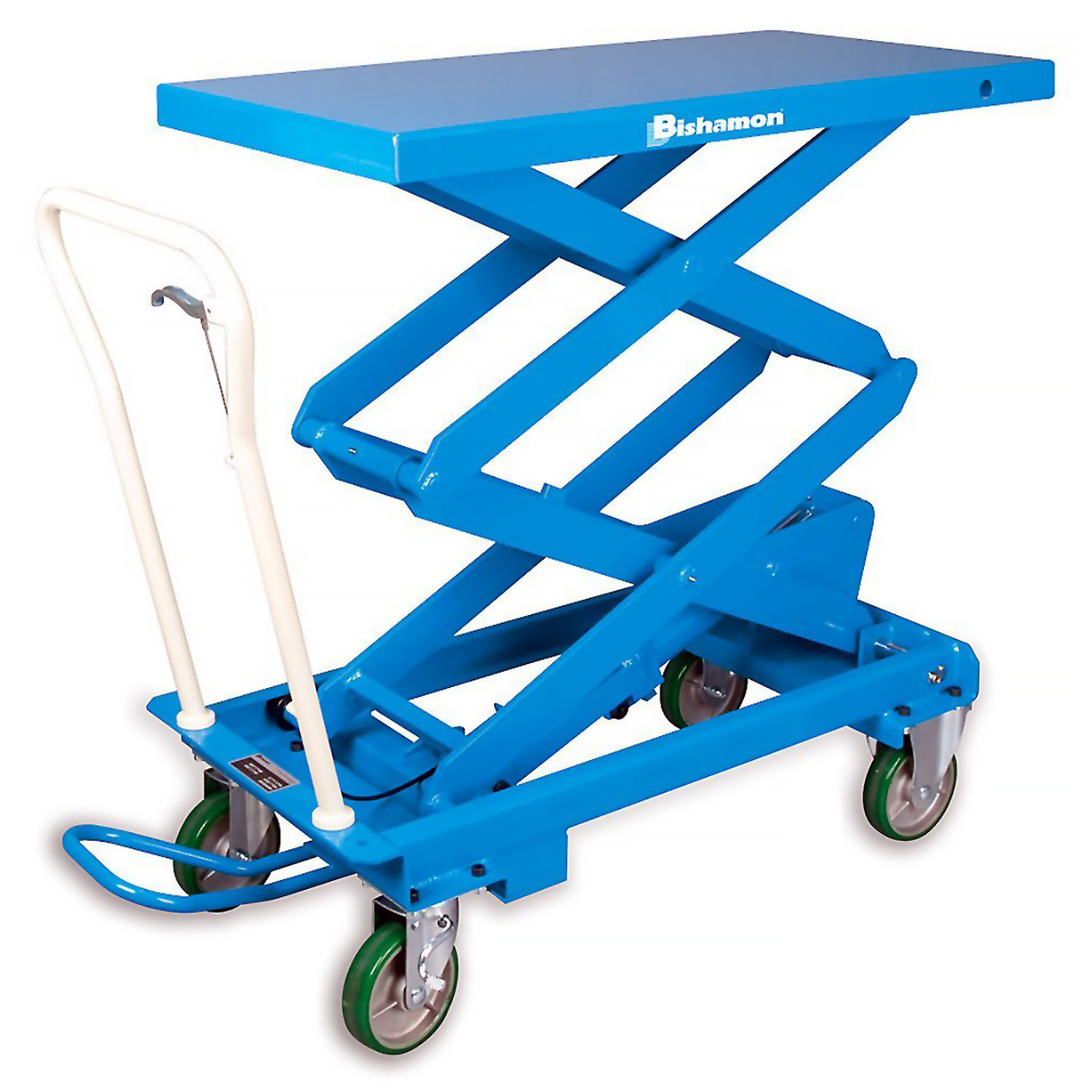

Bishamon BX-30S – Compact Mobile Scissor Lift Table
Compact Design. Precise Lifting. Superior Maneuverability.
The Bishamon BX-30S is a compact mobile scissor lift table designed for lighter-duty lifting and positioning tasks in tight workspaces. With a 660 lb (300 kg) capacity and smaller platform size, it is ideal for applications where space is limited, but ergonomic material handling is still essential.
Engineered for performance, the BX-30S features a manual hydraulic foot pump for smooth, controlled lifting and a durable steel platform that supports a variety of light-to-medium loads. Its compact frame and swivel casters allow for effortless movement through narrow aisles, labs, assembly lines, and workshops.
Key Features
- 660 lb Capacity – Perfect for light to medium-duty material handling
- Compact Platform – Fits into tight or confined workspaces
- Manual Hydraulic Operation – The foot pump allows hands-free, precise lifting
- Durable Steel Frame – Built to last with rugged construction
- Ergonomic Handle – Provides excellent control and maneuverability
- Heavy-Duty Casters – Includes two swivel casters with brakes for stability
- Powder-Coated Finish – Resists corrosion and wear
Benefits
- Reduces Operator Fatigue – Raises work to an ergonomic height
- Improves Efficiency – Easy transport and adjustment of materials
- Compact & Mobile – Designed for movement in constrained spaces
- No Power Needed – Operates manually, making it versatile anywhere
Technical Specifications – Bishamon BX-30S
SpecificationDetails
Model BX-30S
Capacity 660 lbs (300 kg)
Platform Size 20" x 32"
Lowered Height 13.5 inches
Raised Height 36.5 inches
Lift Mechanism Manual foot-operated hydraulic pump
Casters 2 swivel (with brakes), 2 fixed
Construction Heavy-duty steel
Finish Blue powder-coated enamel
Weight Approx. 190 lbs
Applications Electronics assembly, repair benches, labs, warehouses, small parts handling
