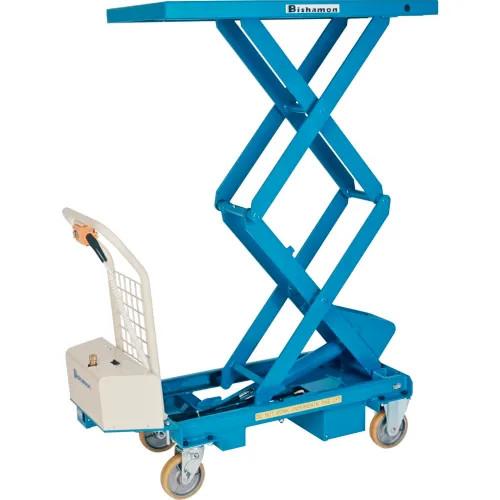

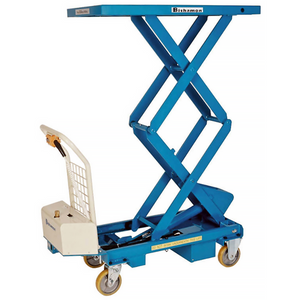

Bishamon BX-50WB – Battery-Powered Double Scissor Lift Table

High Lift. Compact Mobility. Ergonomic Power.

The Bishamon BX-50WB is a battery-powered double-scissor lift table designed for applications that require a higher lift range and increased load capacity in a mobile, user-friendly form. With a maximum lifting height of 54 inches and a load capacity of 1,100 lbs, this model is ideal for assembly, maintenance, repair operations, and other tasks where materials need to be elevated to an ergonomic working height.

Equipped with a 12V battery-powered hydraulic lift system, the BX-50WB provides smooth, push-button lifting with a fast lift time of just 10 seconds. Its rugged steel frame and double-scissor mechanism ensure stability and longevity, while its polyurethane wheels and built-in side pedal brakes allow for easy, secure movement across shop floors.

Key Features

• 1,100 lb Load Capacity – Supports heavier materials and equipment
• Double Scissor Design – Offers a high lift range of up to 54 inches
• Battery Powered Hydraulic Lift – Push-button operation for quick, controlled lifting
• Mobile Design – Easily moved between work areas
• Compact Footprint – Great for tight spaces where vertical lift is needed
• Non-marking polyurethane Wheels – Smooth, floor-safe mobility
• Durable Steel Platform – Built for industrial environments
• No Assembly Required – Ready to use out of the box

Benefits

• Ergonomic Handling – Reduces bending and reaching
• Improves Productivity – Speeds up tasks that involve frequent lifting or staging
• Reliable Performance – Designed for long-term daily use
• Safety Built-In – Foot brake keeps unit stable during lifting or loading

Technical Specifications – Bishamon BX-50WB

SpecificationDetails

Model BX-50WB

Load Capacity 1,100 lbs (500 kg)

Lift Mechanism Battery-powered hydraulic

Platform Size 32" L x 19" W

Minimum Height 15-3/16 inches

Maximum Height 54 inches

Lift Time Approx. 10 seconds

Wheel Type Polyurethane

Wheel Diameter 5 inches

Wheel Configuration 2 swivel with brake, 2 rigid

Operation Push-button hand control

Voltage 12V DC

Charger Type On-board (standard 10 ft. cord)

Frame Material Powder-coated steel

Color Blue

Assembly Required No
