Product Overview
- Product Description
-
These manual cable hoists lift, pull, and apply tension on heavy loads that travel long distances and high heights. Cable is strong, supports heavy loads, and is less susceptible to corrosion and cutting damage than rope and web straps.

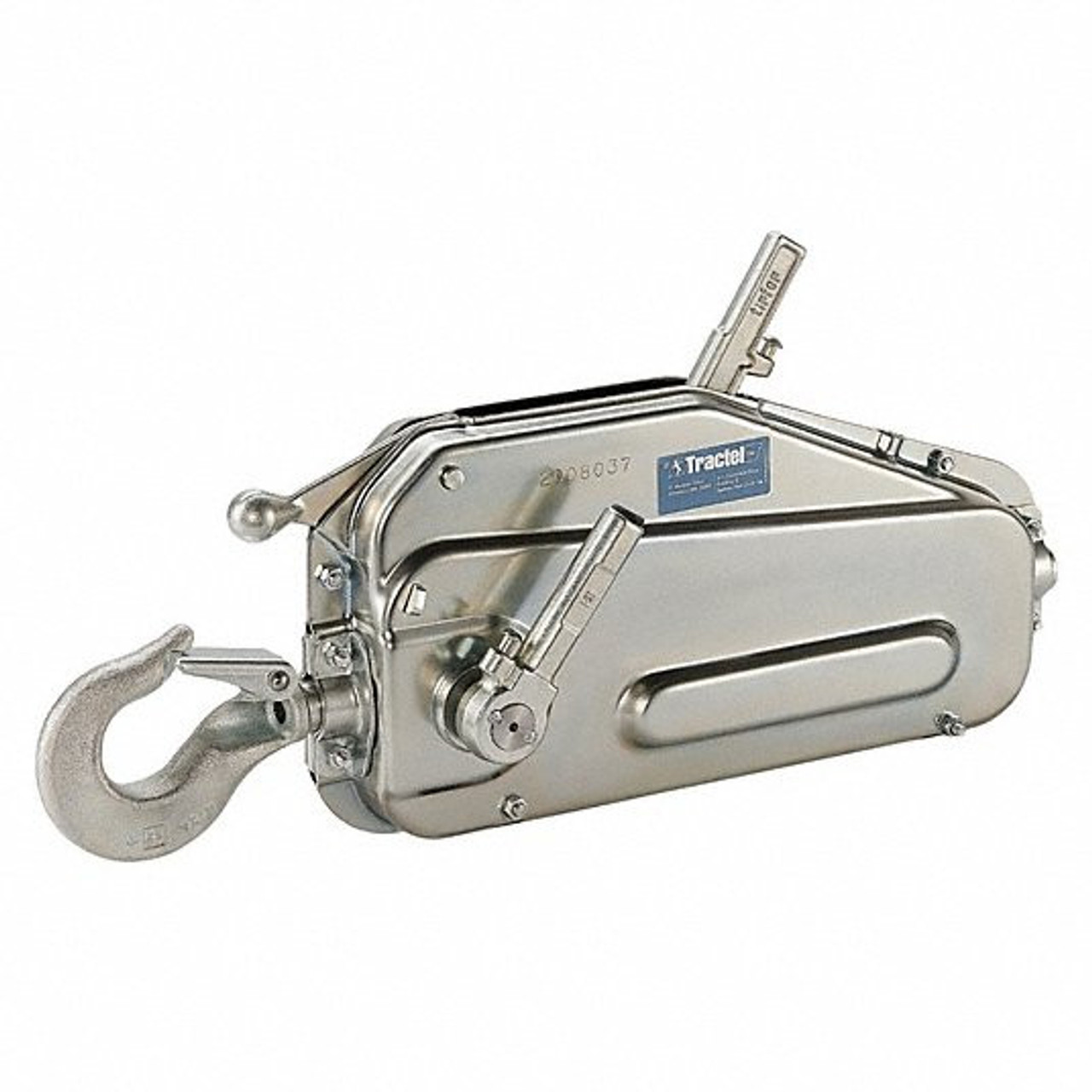

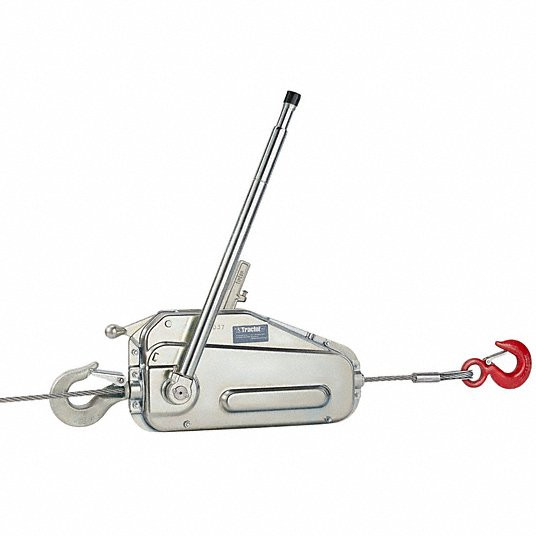

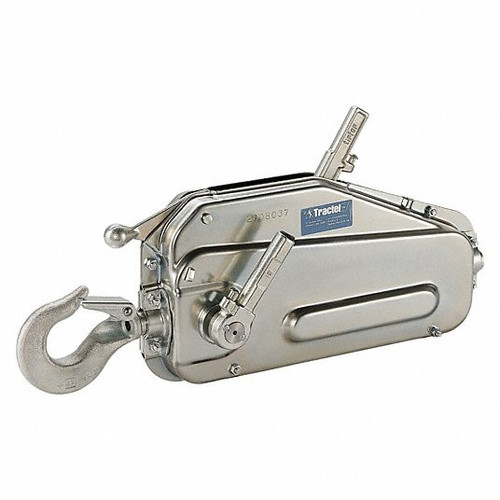

The Griphoist® is a portable manual hoist with traversing wire rope. They can lift, pull and place loads across great distances without exceeding their maximum working load limit. These lever operated wire rope hoists are suitable for use in numerous applications and are the ideal solution for professionals. An outstanding option of the Griphoist® hoist is that load capacity of the device can be increased with a sheave block.
These hoists are portable, strong and can be used in any orientation. The design of these hoists allow for a virtual unlimited lift or pull, the limit of which is determined only by the length of wire rope inserted into it.
- Light weight for quick installation
- No limitation in terms of wire rope length
- Easy to use, heavy duty, and powerful
- Increase load capacity with deflection sheaves
- Overload protectionProduct Details
Brand : TRACTELMount Type : Hook Mounted - No TrolleyProduct Type : Wire Rope HoistOperating Position : Horizontal; VerticalLifting Capacity : 2,000 lbTonnage - Lifting Capacity : 1 TonPulling Capacity : 4,000 lbMaximum Lifting Length : 28 ftMinimum Line Length : 30 ftMaximum Line Length : 30 ftLine Length : 30 ftLine Type : RopeLine Diameter : 5/16 inLine Material : Galvanized SteelMinimum Retracted Length : 24 inHeadroom : 28-1/2 inLifting Hook Type : Hook with Safety LatchHook Opening Width : 1 inLifting Hook Material : SteelLever Length : 28 inIncludes Clutch : Clutch Not IncludedBody Material : SteelBody Width : 4-5/16 inBody Depth : 20-3/4 inIncluded Components : Wire RopeBody Finish : Zinc PlatedStandards : UL ListedManufacturer Part Number : 849202430KSub-brand : Tractel,Tirfor(R)UNSPSC : 24101602Country of Origin : France (subject to change)
