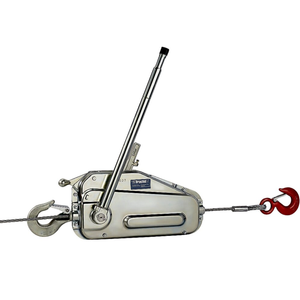

Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist – 1 Ton Capacity, 100 ft (30 m) Assembly

Product Description

The Tractel Griphoist / Tirfor TU17, equipped with a 100 ft (30 m) wire rope assembly, is a lightweight, portable hoist designed for safe and reliable lifting, pulling, and tensioning tasks. With a 2,000 lb (1 ton) capacity, this hoist is well-suited for construction, industrial maintenance, utility work, rescue operations, and general material handling.

Unlike traditional chain hoists, the TU17 utilizes a continuous pass-through wire rope system, enabling it to handle virtually unlimited rope lengths. The included 100 ft assembly provides extended reach, while additional lengths can be added as needed.

Its dual jaw gripping mechanism locks automatically at every point, ensuring safe load control whether pulling horizontally, lifting vertically, or operating at an angle. A telescopic lever provides the user with an added mechanical advantage, enabling heavy-duty lifting with controlled effort. Built-in shear pins provide overload protection, safeguarding both the operator and the hoist.

Compact, rugged, and field-ready, the Griphoist / Tirfor TU17 – 100 ft assembly is the practical choice for professionals who need dependable manual power in environments where mechanical handling or powered hoists are not feasible.

Key Specifications

• Model / SKU: TU17 – 60 ft Assembly
• Type: Griphoist / Tirfor TU17
• Nominal Capacity: 2,000 lbs (907 kg)
• Wire Rope Diameter: 5/16 in (8 mm)
• Wire Rope Length: 100 ft (30 m) assembly included
• Unit Weight (hoist body): 18.7 lbs (8.5 kg)
• Wire Rope Weight (60 ft): 16 lbs (7.2 kg)
• Effort on Lever (Forward): 79 lbs (36 kg)
• Effort on Lever (Reverse): 40 lbs (18 kg)
• Rope Travel per Forward Stroke: 2 in (50 mm)
• Rope Travel per Reverse Stroke: 2 3/8 in (60 mm)
• Minimum Wire Rope Breaking Strength: 10,000 lbs (4,536 kg)
• Safety Factor: 4:1 (material handling applications)
• Operation Modes: Horizontal, vertical, or angled pulling and lifting
• Safety Features: Dual jaw load-holding system; overload shear pins
• Compliance: UL certified for man-riding applications; meets ASME B30.21 standards
