Product Overview
Description

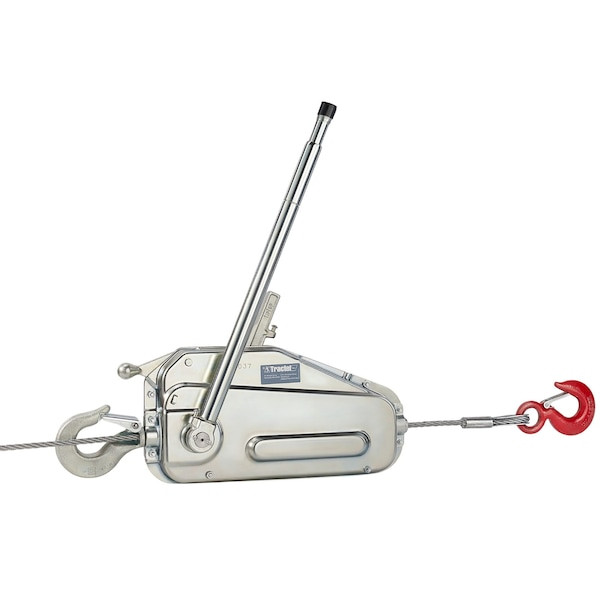

The ultra portable griphoist TU17 heavy duty hoist with 150 ft. wire rope assembly is ideal in daily operation on construction sites where power is needed for lifting, pulling, and handling a wide variety of loads. This 2,000 lbs. nominal capacity lever operated wire rope hoist features easy installation, reduced maintenance, and is economical. It is UL certified for man-riding. Designed to replace other conventional portable winches and hoists as it can operate horizontally, vertically, or even at an angle with millimetre accuracy. The use of the wire rope is easier to handle than a chain hoist and makes the perfect come along puller tool. It works in any position, with unlimited length of wire rope, and can increase capacity by using multiple snatch rigging blocks so you can enjoy convenient use. The TU series is in daily operations on construction sites around the world putting power where it is needed for lifting, pulling and handling a wide variety of loads.
Dimensions
Housing Length | 20.7 in |
Housing Width | 9.8 in |
Housing Depth | 20 7/8 in |
Cord Length | 150 ft |
Cord Diameter | 5/16 in |
Minimum Retracted Length | 24 in |
Lever Length | 28 in |
Minimum Cord Length | 150 ft |
