Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist 1 Ton Capacity, 60 ft (18 m) Assembly

Write a Review
$2,734.69
$2,221.94
(You save $512.75 )
SKU: 849202460K
Weight: 34.00 LBS
Width: 2.50 (in)
Height: 10.50 (in)
Depth: 2.34 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist 1 Ton Capacity, 60 ft (18 m) Assembly

Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist 1 Ton Capacity, 60 ft (18 m) Assembly

$2,734.69
$2,221.94
(You save $512.75 )
Description

Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist – 1 Ton Capacity, 60 ft (18 m) Assembly

Product Description

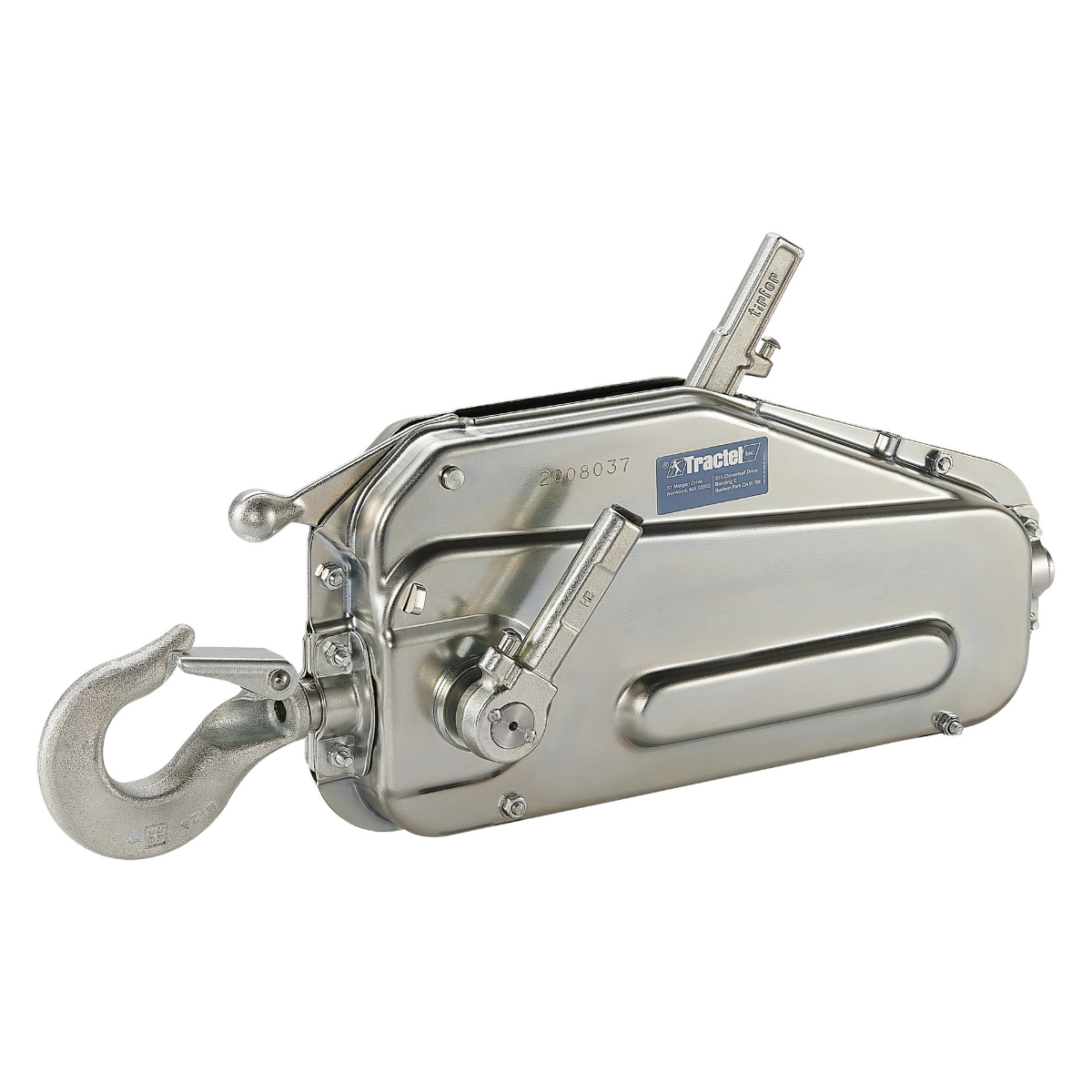

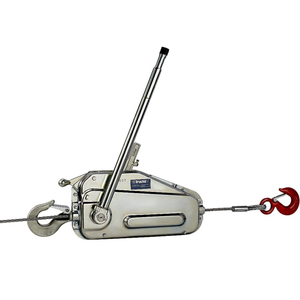

The Tractel Griphoist / Tirfor TU17, equipped with a 60 ft (18 m) wire rope assembly, is a lightweight, portable hoist designed for safe and reliable lifting, pulling, and tensioning tasks. With a 2,000 lb (1 ton) capacity, this hoist is well-suited for construction, industrial maintenance, utility work, rescue operations, and general material handling.

Unlike traditional chain hoists, the TU17 utilizes a continuous pass-through wire rope system, enabling it to handle virtually unlimited rope lengths. The included 60 ft assembly provides extended reach, while additional lengths can be added as needed.

Its dual jaw gripping mechanism locks automatically at every point, ensuring safe load control whether pulling horizontally, lifting vertically, or operating at an angle. A telescopic lever provides the user with an added mechanical advantage, enabling heavy-duty lifting with controlled effort. Built-in shear pins provide overload protection, safeguarding both the operator and the hoist.

Compact, rugged, and field-ready, the Griphoist / Tirfor TU17 – 60 ft assembly is the practical choice for professionals who need dependable manual power in environments where mechanical handling or powered hoists are not feasible.

Key Specifications

  • Model / SKU: TU17 – 60 ft Assembly
  • Type: Griphoist / Tirfor TU17
  • Nominal Capacity: 2,000 lbs (907 kg)
  • Wire Rope Diameter: 5/16 in (8 mm)
  • Wire Rope Length: 60 ft (18 m) assembly included
  • Unit Weight (hoist body): 18.7 lbs (8.5 kg)
  • Wire Rope Weight (60 ft): 16 lbs (7.2 kg)
  • Effort on Lever (Forward): 79 lbs (36 kg)
  • Effort on Lever (Reverse): 40 lbs (18 kg)
  • Rope Travel per Forward Stroke: 2 in (50 mm)
  • Rope Travel per Reverse Stroke: 2 3/8 in (60 mm)
  • Minimum Wire Rope Breaking Strength: 10,000 lbs (4,536 kg)
  • Safety Factor: 4:1 (material handling applications)
  • Operation Modes: Horizontal, vertical, or angled pulling and lifting
  • Safety Features: Dual jaw load-holding system; overload shear pins
  • Compliance: UL certified for man-riding applications; meets ASME B30.21 standards
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
