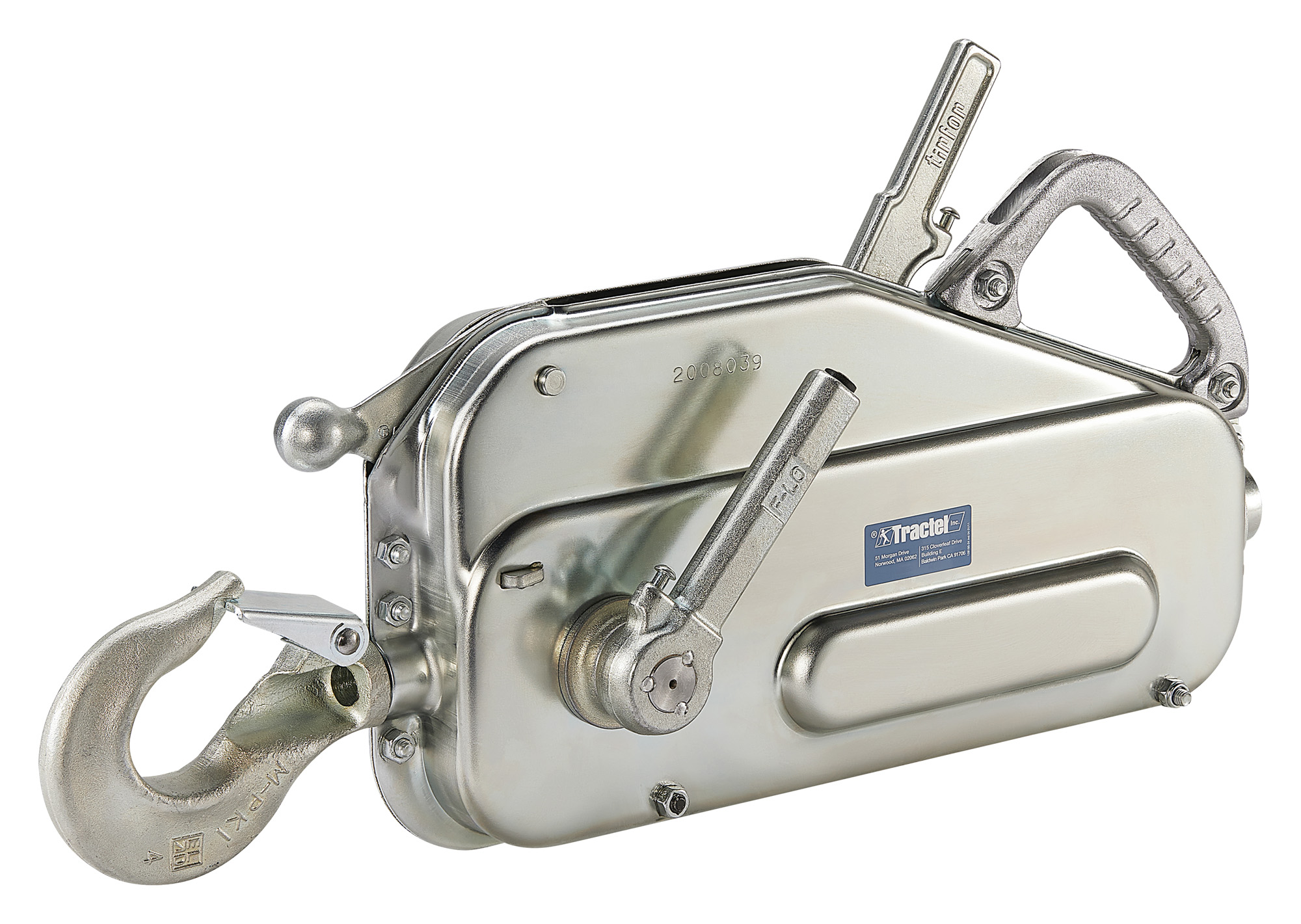

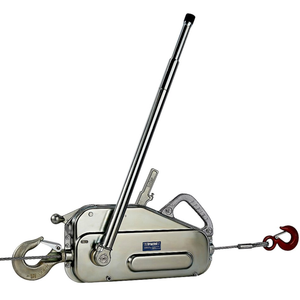

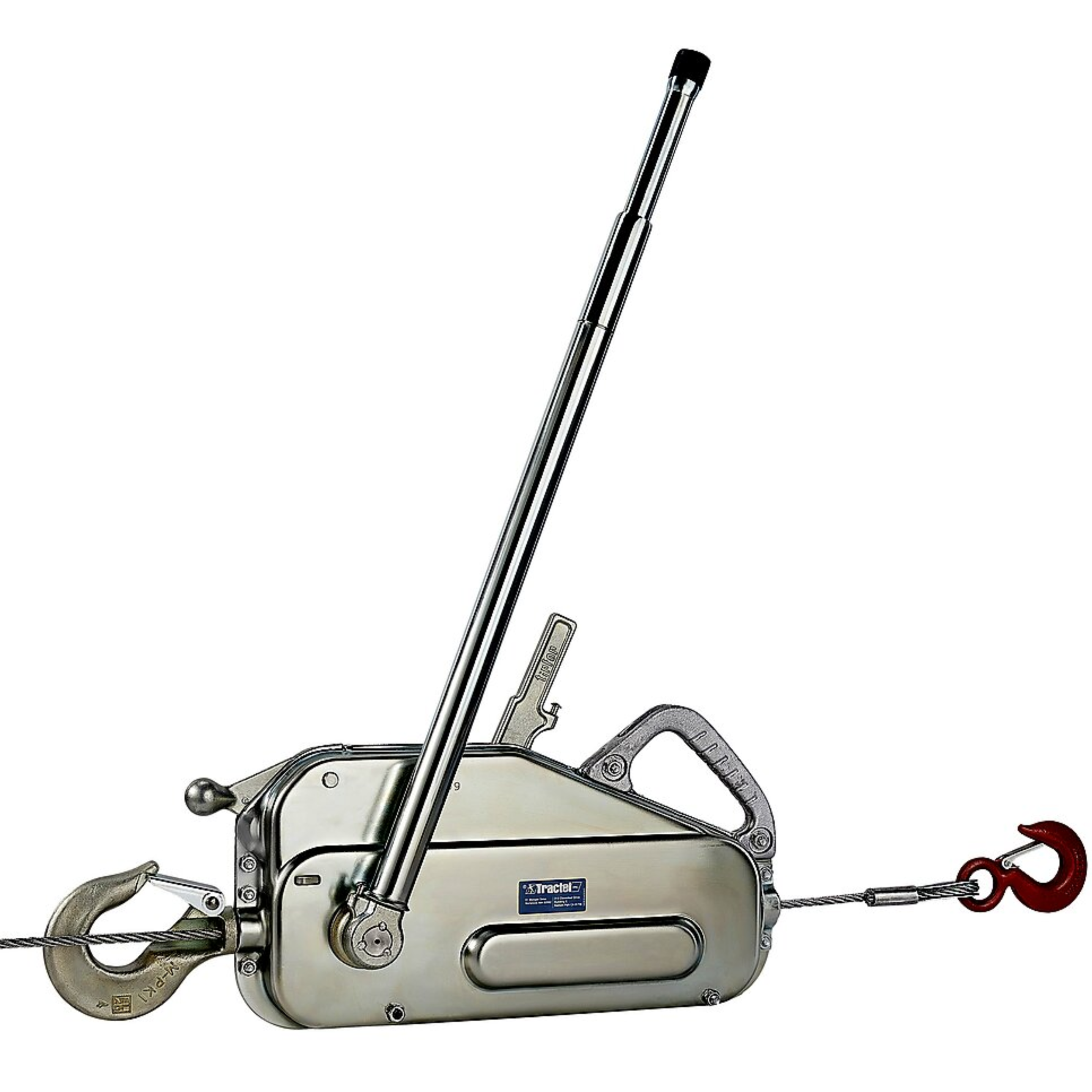

Tractel Griphoist / Tirfor TU28 Manual Wire Rope Hoist – 2 Ton Capacity, 30 ft (9 m) Assembly

Product Description

The Tractel Griphoist/Tirfor TU28, equipped with a 30 ft (9 m) wire rope assembly, is a versatile manual hoist designed for professional lifting, pulling, and tensioning tasks. Built to handle up to 4,000 lbs, this hoist is well-suited for construction sites, utilities, heavy rigging, and field operations where reliable manual power is required.

The pass-through wire rope design enables unlimited working distances, while the included 30 ft rope assembly provides immediate jobsite capability. Operators can use the TU28 in horizontal, vertical, or angled applications, and the dual jaw gripping system ensures safe and automatic load control at every stage.

Equipped with a telescopic lever for mechanical advantage and shear pins for overload protection, the TU28 with 30 ft assembly offers a combination of safety, strength, and portability.

Key Specifications

• Model / SKU: TU28 – 30 ft Assembly
• Type: Griphoist / Tirfor TU28
• Nominal Capacity: 4,000 lbs (1,814 kg)
• Wire Rope Diameter: 7/16 in (11.5 mm)
• Wire Rope Length: 30 ft (9 m) assembly included
• Unit Weight (hoist body): 41 lbs (14 kg)
• Wire Rope Weight (30 ft): 14 lbs (5.4 kg)
• Effort on Lever (Forward): 119 lbs (54 kg)
• Effort on Lever (Reverse): 44 lbs (20 kg)
• Rope Travel per Forward Stroke: 2 13/64 in (56 mm)
• Rope Travel per Reverse Stroke: 2 3/4 in (70 mm)
• Minimum Wire Rope Breaking Strength: 20,000 lbs (9,072 kg)
• Safety Factor: 4:1 (material handling applications)
• Operation Modes: Horizontal, vertical, or angled pulling and lifting
• Safety Features: Dual jaw gripping system; overload shear pins
• Compliance: Meets ASME B30.21 standards
