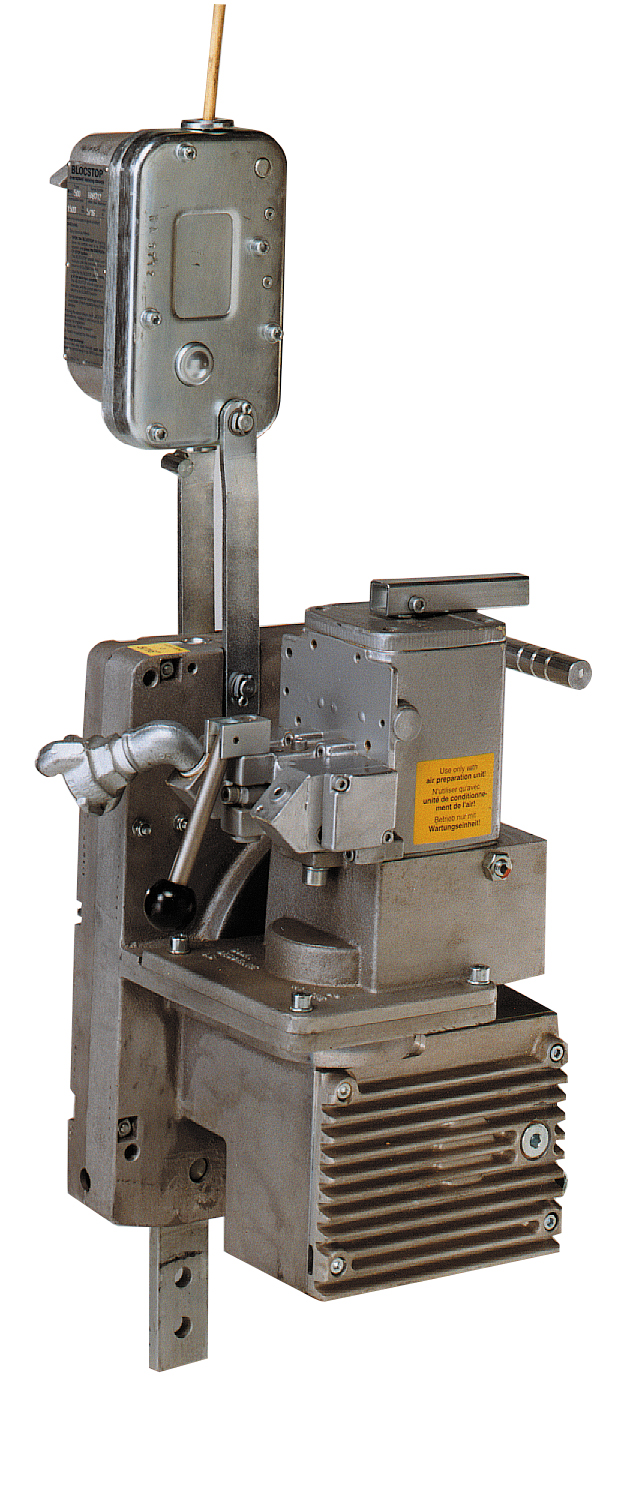

Tractel Tirak® XA700 Pneumatic Wire Rope Hoist — 700 kg (1,500 lb) Capacity

When your lifting tasks require flexibility, reliability, and operator-friendly performance in environments where electricity is limited or hazardous, the Tirak XA700 pneumatic wire rope hoist delivers. Engineered for heavy-duty material handling, this hoist is ideal for industrial, construction, and suspended access applications.

Product Description

The Tirak XA700 combines pneumatic power with a robust traction design to give you consistent, smooth lifting. With a nominal capacity of 700 kg (1,500 lb), it lifts loads at two selectable speeds — 17 or 30 feet per minute (6 or 9 m/min) — allowing operators to adjust performance to match the load and jobsite conditions.

Its pass-through wire rope system ensures the rope is never stored inside the hoist, providing virtually unlimited lifting height. This makes it perfect for tall structures, scaffold platforms, or any situation requiring long lifts. The traction drive design maintains a constant lifting speed regardless of load position, reducing sway and improving control.

Safety and reliability are central to the XA700. This hoist has an automatic braking system that engages whenever pneumatic pressure drops, as well as emergency stop capabilities that can protect both the operator and their loads. Its rugged construction and low-maintenance design ensure long service life, even in demanding industrial environments.

Whether used for vertical lifts, horizontal pulls, or suspended access systems, the XA700 offers the versatility and control you need, backed by the proven quality of Tractel’s Tirak line.

Key Specifications

• Rated Capacity: 700 kg (1,500 lb)
• Motor Type: Pneumatic
• Lifting Speeds: 17 / 30 ft/min (6 / 9 m/min)
• Rope System: Pass-through traction design for unlimited lift height
• Drive System: Constant speed traction with internal roller sheave
• Braking: Automatic pneumatic brake engages on pressure loss
• Controls: Pendant with up/down operation and emergency stop
• Safety Features: Emergency stop, fail-safe braking, load control
• Applications: Vertical lifting, horizontal pulling, scaffold and suspended platform operations
• Maintenance: Low-maintenance design for extended service life

Why Choose the Tirak XA700?

• Unlimited lift height with pass-through rope design
• Dual-speed operation to optimize performance for different loads
• Pneumatic-powered — ideal for non-electric or hazardous environments
• Smooth and consistent lifting with traction drive technology
• Durable and low-maintenance for long-term industrial use
• Built-in safety features protecting both operators and loads
