Tractel Tirak XA500 Pneumatic Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Write a Review
$13,774.99
SKU: XA500
Weight: 91.00 LBS
Width: 16.90 (in)
Height: 33.50 (in)
Depth: 14.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Tirak XA500 Pneumatic Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Tractel Tirak XA500 Pneumatic Wire Rope Hoist – 1,100 lb (500 kg) Capacity

$13,774.99

Tractel Tirak XA500 Pneumatic Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Product Description

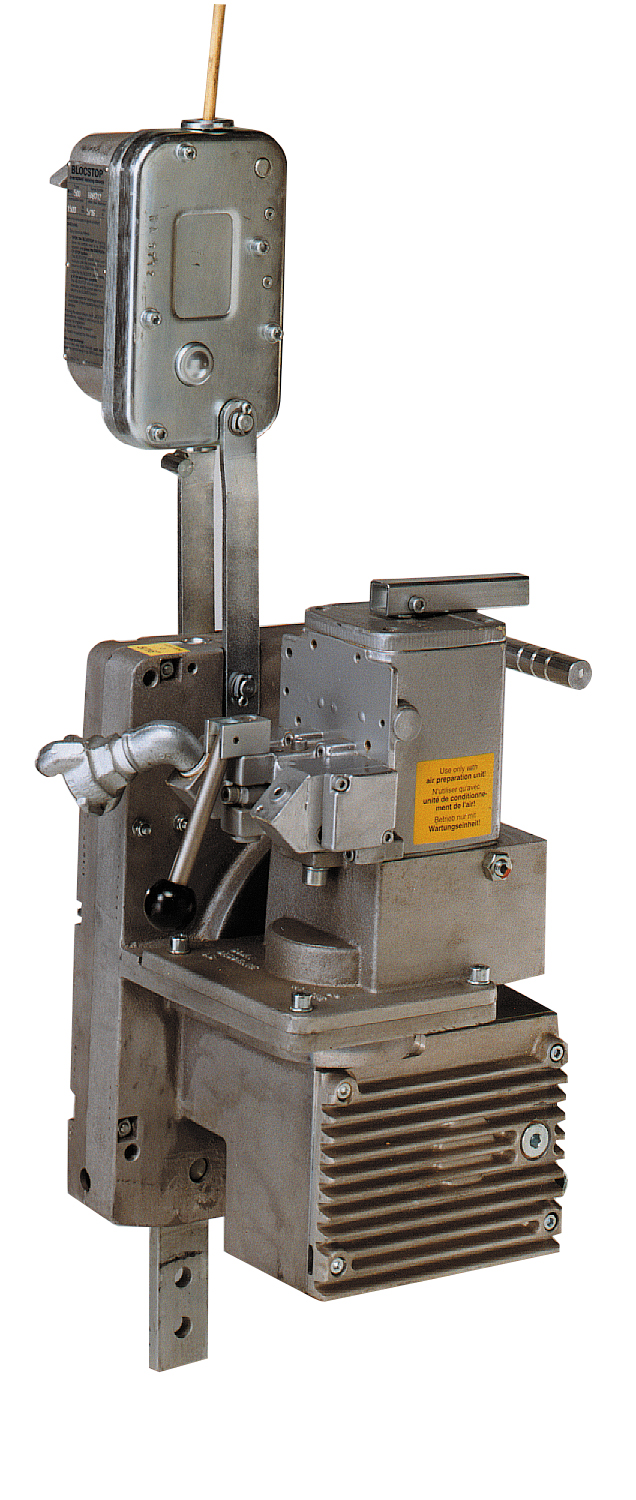

The Tractel Tirak XA500 is a pneumatic wire rope hoist. It was designed for safe and efficient lifting in environments where compressed air is available or electrical power may not be. With a lifting capacity of 1,100 lb (500 kg), it is ideal for industrial workshops, maintenance operations, assembly lines, and other applications that require reliable material handling.

The XA500 features a pass-through wire rope system, allowing for virtually unlimited rope length, providing flexible horizontal, vertical, or angled lifting. Its pneumatic motor delivers consistent, controlled operation at a lifting speed of 30 ft/min (9 m/min), providing the operator with smooth and steady load movement.

Built for durability and low maintenance, the XA500 features an integrated mechanical brake and overload protection, enhancing safety for both the load and the operator. This hoists design provides easy installation and mobility, making it a practical choice for industrial material handling where pneumatic power is preferred.

Key Specifications

  • Model: Tirak XA500
  • Nominal Capacity: 1,100 lb (500 kg)
  • Motor Type: Pneumatic
  • Lifting Speed: 30 ft/min (9 m/min)
  • Rope Design: Pass-through system (virtually unlimited rope length)
  • Traction System: Single sheave
  • Weight: Approx. 91 lb
  • Operation Modes: Horizontal or vertical lifting applications
  • Safety Features: Integrated mechanical brake, overload protection
  • Applications: Workshops, maintenance, assembly lines, industrial material handling
  • Compliance: Meets applicable industry safety and performance standards
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
