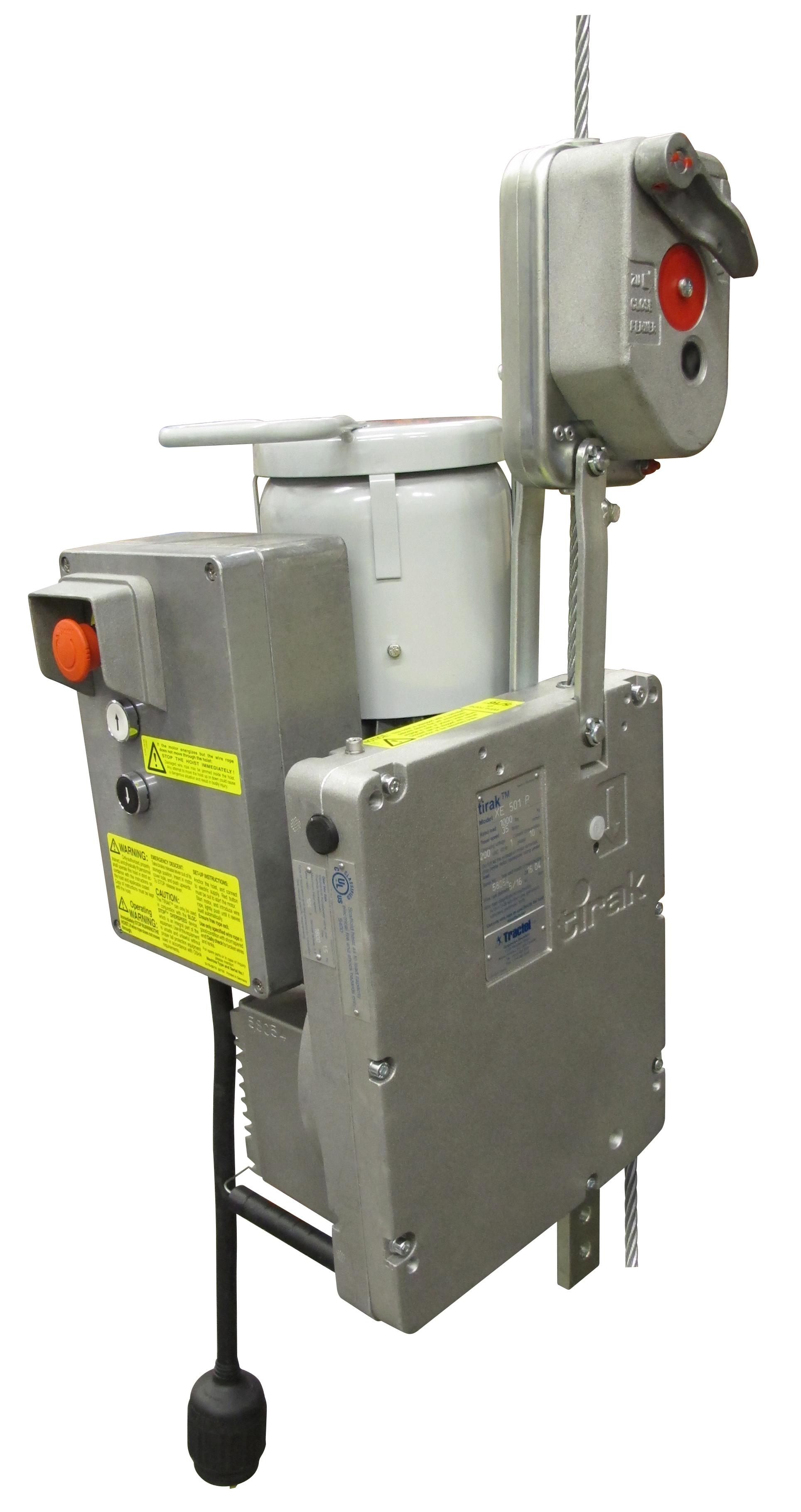

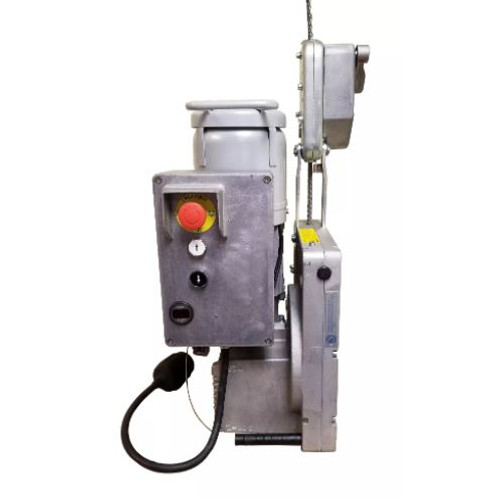

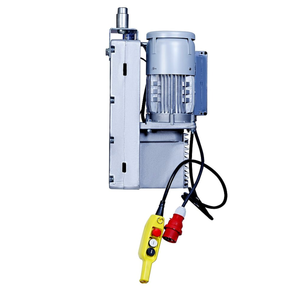

Tractel Tirak X500 Electric Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Product Description

The Tractel Tirak X500 is a reliable electric wire rope hoist built for industry safe and precise material handling in industrial, maintenance, and construction applications. With a lifting capacity of 1,100 lb (500 kg), it provides the ideal balance of speed and control for a wide range of lifting tasks.

Equipped with a three-phase motor rated at 6.3 A, the X500 operates at a controlled lifting speed of 35 ft/min, allowing for smooth and consistent movement of loads. Its pass-through rope system allows for virtually unlimited rope lengths, giving flexibility in both vertical and horizontal applications. The single sheave traction system helps maintain steady load travel while minimizing rope wear.

Enginereed with reliability and extended use in mind, the X500 includes an integrated mechanical brake and overload protection features that enhances both operator and load safety. Its simple design makes installation and maintenance easy, making it a smart choice for industrial material handling operations.

Key Specifications

• Model: Tirak X500
• Nominal Capacity: 1,100 lb (500 kg)
• Motor Type: Three-phase, 6.3 A
• Lifting Speed: 35 ft/min (11 m/min)
• Rope Design: Pass-through system (virtually unlimited rope length)
• Traction System: Single sheave
• Weight: Approx. 77 lb (35 kg)
• Dimensions: 19 in (L) × 10 in (W) × 11 in (H)
• Operation Modes: Horizontal or vertical lifting applications
• Safety Features: Integrated mechanical brake, overload protection
• Applications: Industrial lifting, workshops, maintenance, construction
• Compliance: Meets applicable industry safety and performance standards
