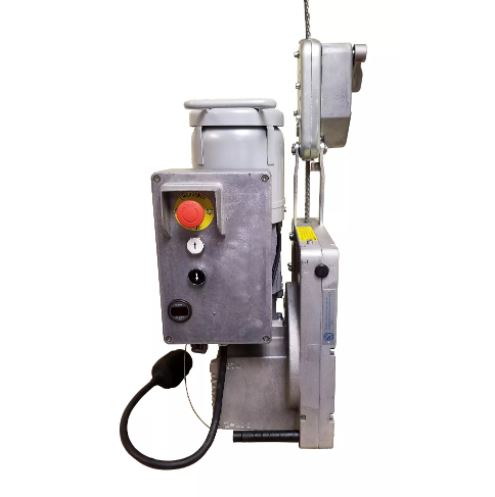

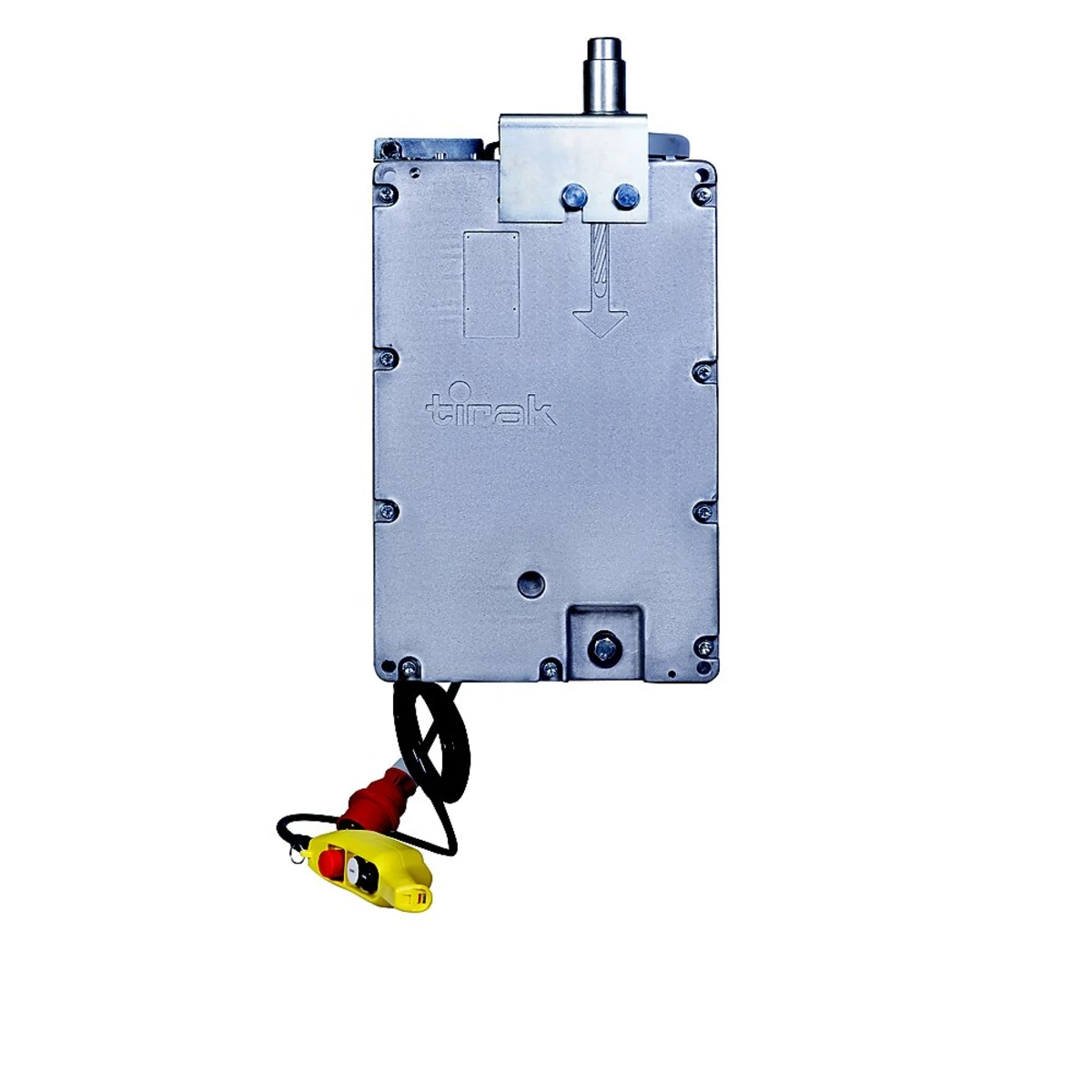

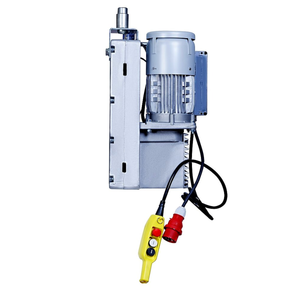

Tractel Tirak X502 Electric Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Product Description

The Tractel Tirak X502 is a high-performance electric wire rope hoist that is designed for precise material handling in an array of daily environments. With a lifting capacity of 1,100 lb (500 kg), it is suitable for construction, maintenance, and production applications where higher lifting speeds and consistent performance are required.

Equipped with a three-phase motor rated at 9.0 A, the X502 provides powerful, continuous operation at a lifting speed of 69 ft/min (21 m/min). The pass-through rope design allows virtually unlimited rope lengths, providing flexibility for horizontal, vertical, or angled lifting applications. The single-sheave traction system ensures smooth and controlled load movement, reducing the risk of load swing or drift.

Durable and low-maintenance, the Tirak X502 features an integrated mechanical brake and overload protection for maximum safety. The hoists design allows for easy installation and operation, making it a versatile solution for industrial material handling where speed, efficiency, and safety are critical.

Key Specifications

• Model: Tirak X502
• Nominal Capacity: 1,100 lb (500 kg)
• Motor Type: Three-phase, 9.0 A
• Lifting Speed: 69 ft/min (21 m/min)
• Rope Design: Pass-through system (supports virtually unlimited rope length)
• Traction System: Single sheave
• Weight: Approx. 88 lb (40 kg)
• Operation Modes: Horizontal or vertical lifting applications
• Safety Features: Integrated mechanical brake, overload protection
• Applications: Industrial material handling, workshops, construction, maintenance
• Compliance: Meets applicable industry safety and performance standards
