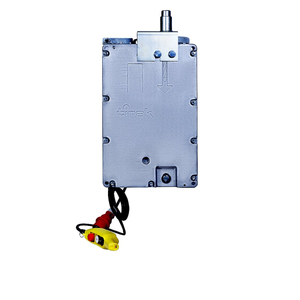

Tractel Tirak XA300 Pneumatic Wire Rope Hoist – 700 lb (300 kg) Capacity

Product Description

The Tractel Tirak XA300 is a pneumatic wire rope hoist designed for industrial material handling where air-powered operation is preferred or electricity is not available. With a lifting capacity of 700 lb (300 kg), this hoist is ideal for workshops, maintenance, assembly lines, and other environments requiring safe, precise load handling.

Equipped with a pass-through wire rope system, the XA300 allows virtually unlimited rope length, providing flexibility for horizontal, vertical, or angled lifting applications. Its pneumatic motor delivers controlled, reliable operation, with variable lifting speeds of 17/30 ft/min (6/9 m/min), allowing the operator to match speed to task requirements for increased efficiency and safety.

The hoist includes an integrated mechanical brake and built-in overload protection to safeguard both the load and operator. Compact and portable, the XA300 is simple to install, use, and maintain, making it a practical solution for material handling in environments where pneumatic power is preferred over electric solutions.

Key Specifications

• Model: Tirak XA300
• Nominal Capacity: 700 lb (300 kg)
• Motor Type: Pneumatic
• Lifting Speeds: 17 / 30 ft/min (6 / 9 m/min)
• Rope Design: Pass-through system (virtually unlimited rope length)
• Traction System: Single sheave
• Weight: Approx. 67 lb
• Operation Modes: Horizontal or vertical lifting applications
• Safety Features: Integrated mechanical brake, overload protection
• Applications: Workshops, maintenance, assembly lines, industrial material handling
• Compliance: Meets applicable industry safety and performance standards
