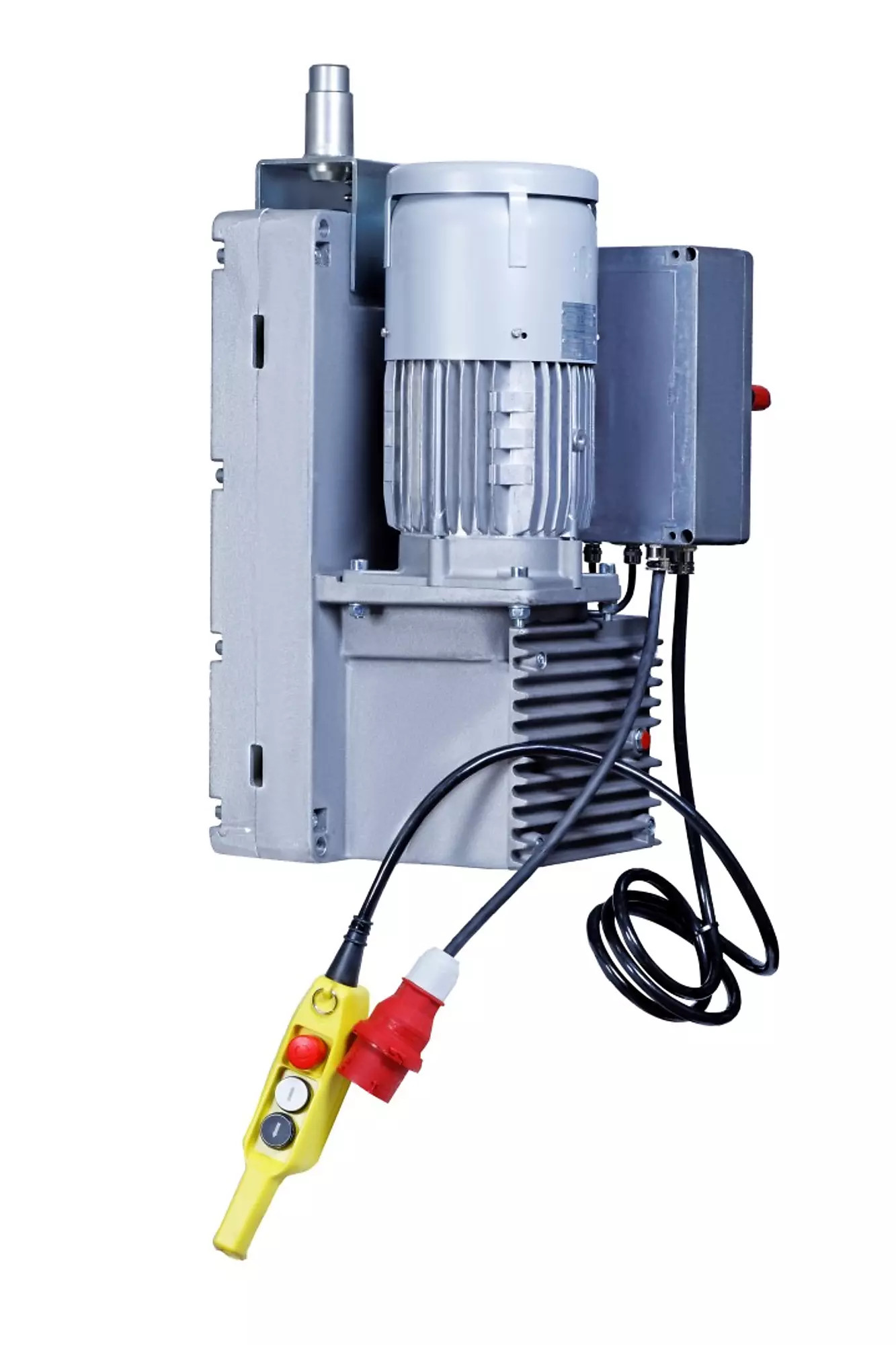

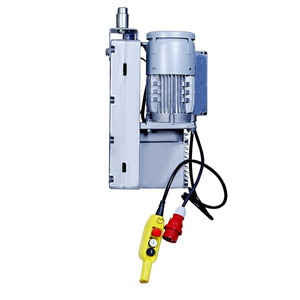

Tractel Tirak® X700 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Three-Phase
Tractel Tirak® X700 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Three-Phase
When your lifting tasks demand reliability, precision, and durability, the Tirak X700 from Tractel is built to deliver, designed for heavy-duty applications, this hoist provides dependable performance in construction, industrial maintenance, and suspended access systems.
Product Description
The Tirak X700 gives you the lifting power you need with the flexibility you expect. Powered by a three-phase motor drawing 5.0 amps, it raises loads at a steady speed of 16 feet per minute (5 m/min). Its pass-through wire rope design means the rope is never stored inside the hoist, giving you virtually unlimited lifting height and adaptability for different jobsite conditions.
Thanks to its traction drive system, the X700 maintains a constant lifting speed regardless of load position. This allows for smooth and consistent movement, even when handling shifting or awkward loads. Built to withstand tough working environments, the unit features a rugged gearbox, a reliable braking system, and simple maintenance requirements for long service life.
Safety is engineered into every detail, from the automatic electromagnetic brake that activates instantly in the event of power loss, to an emergency stop function and phase sequence monitoring. Whether you’re lifting vertically, pulling horizontally, or adjusting platform height, the X700 offers the performance and protection you can trust.
Key Specifications
- Rated Capacity: 700 kg (1,500 lb)
- Motor Type: Three-phase electric motor, 5.0 A
- Lifting Speed: 16 ft/min (5 m/min)
- Rope System: Pass-through traction design for unlimited height
- Drive System: Constant speed, single-sheave traction with internal rollers
- Braking: The Electromagnetic primary brake engages on power loss or control release
- Controls: Pendant with up/down operation and emergency stop
- Safety Features: Phase sequence monitoring, emergency stop, load-limit capability (depending on configuration)
- Applications: Vertical lifting, horizontal pulling, suspended access platforms, and general material handling
- Maintenance: Low-maintenance design with long service life
Why Choose the Tirak X700?
- Unlimited lifting height thanks to the pass-through rope system
- Smooth, consistent operation with traction drive technology
- Rugged and reliable for continuous industrial use
- Flexible applications — one hoist for lifting, pulling, or platform control
- Built-in safety systems to protect both operators and loads
