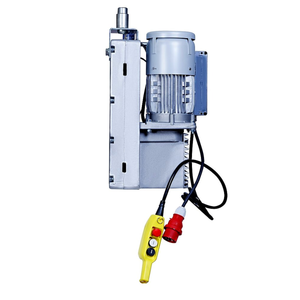

Tractel Tirak X501 Electric Wire Rope Hoist – 1,100 lb (500 kg) Capacity

Product Description

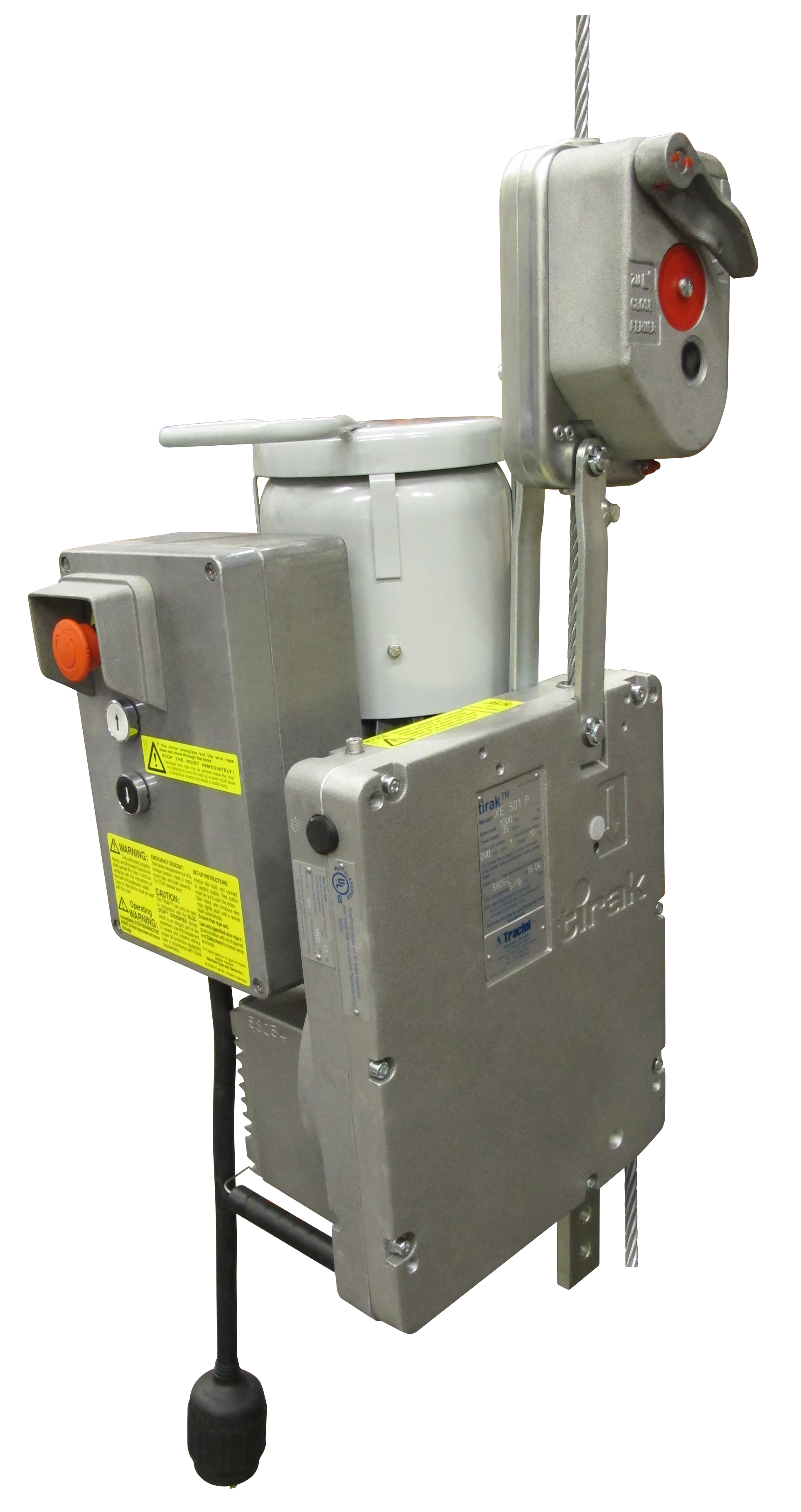

The Tractel Tirak X501 is a single-phase electric wire rope hoist made for safe, precise, and efficient material handling. With a lifting capacity of 1,100 lb (500 kg), it is ideal for workshops, light industrial settings, and maintenance operations where reliable performance and controlled speed are essential.

Equipped with a single-phase 8.3 A motor, the X501 delivers a consistent lifting speed of 35 ft/min (11 m/min), allowing smooth movement of loads with minimal operator effort. Hoist uses a pass-through wire rope system that provides flexibility for virtually unlimited rope lengths, enabling horizontal, vertical, or angled lifting applications. The single sheave traction system ensures steady load travel while protecting the ropes integrity.

On top of it's reliability and low maintenance, the Tirak X501 has an integrated mechanical brake, and built-in overload protection for increased safety for it's users. Its compact form factor simplifies installation and operation, making it an ideal solution for efficient material handling in various industrial environments.

Key Specifications

• Model: Tirak X501
• Nominal Capacity: 1,100 lb
• Motor Type: Single-phase, 8.3 A
• Lifting Speed: 35 ft/min (11 m/min)
• Rope Design: Pass-through system (virtually unlimited rope length)
• Traction System: Single sheave
• Weight: Approx. 121 lbs.
• Operation Modes: Horizontal or vertical lifting applications
• Safety Features: Integrated mechanical brake, overload protection
• Applications: Workshops, light industrial lifting, maintenance, construction
• Compliance: Meets applicable industry safety and performance standards
