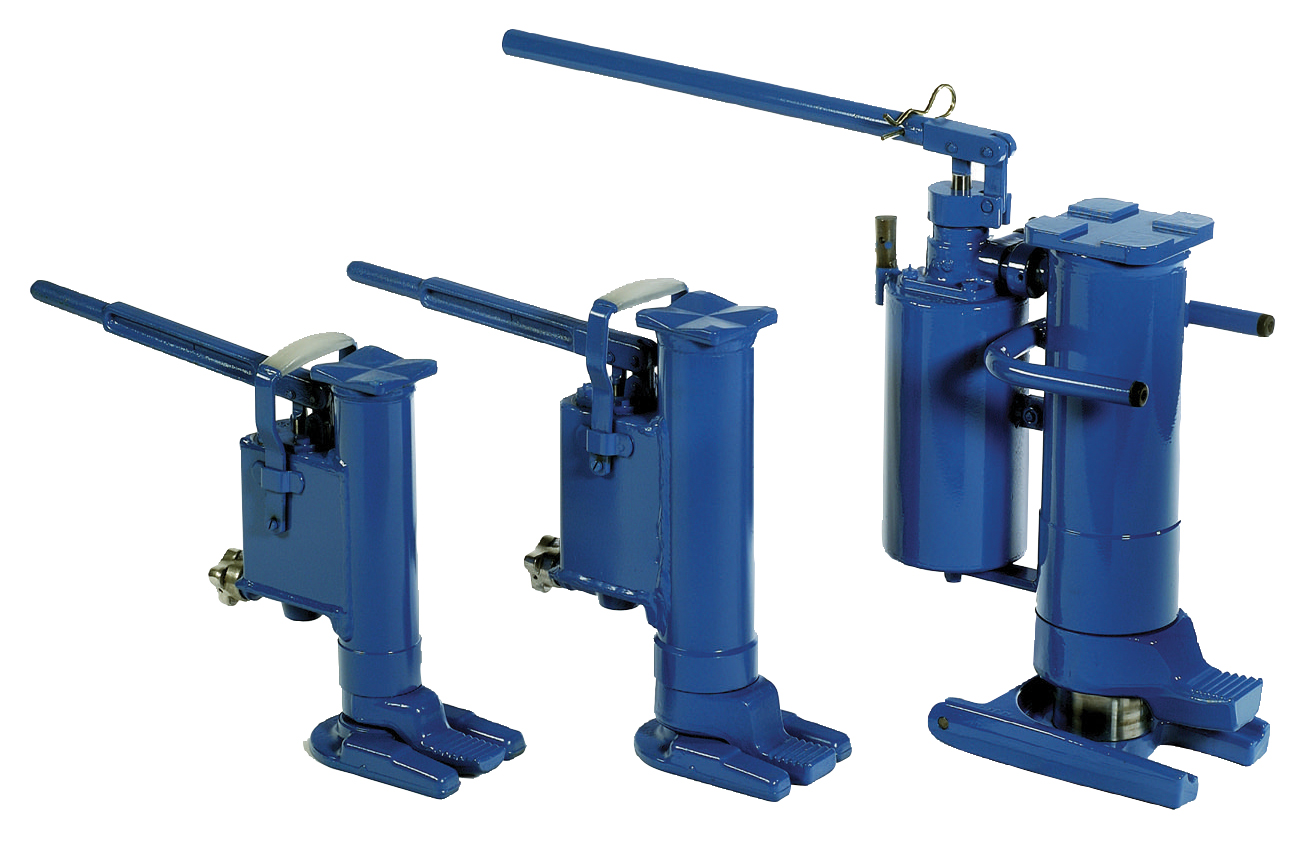

Tractel Hydrofor 5 T Hydraulic Toe Jack – 5,000 kg Capacity

The Hydrofor 5 T Hydraulic Toe Jack delivers powerful, and reliable lifting performance for heavy machinery and industrial equipment. Designed for professional use, this hydraulic jack offers a 5,000 kg (11,023 lbs) lifting capacity with the versatility to lift loads from either the head or the toe. Its quality construction, and smooth hydraulic action make it the perfect tool for workshops, factories, and maintenance operations that need controlled, high-capacity lifting.

Strong, Reliable, and Built to Perform

The Hydrofor toe jack is built with a high-strength steel frame and industrial-grade hydraulic system, ensuring dependable performance under demanding loads. The smaller design allows it to fit under low-clearance machinery, while the hydraulic pump provides effortless lifting every time.

Dual Lifting Points

This model is equipped with both a top head lift and a low-profile toe lift, allowing you to handle a variety of lifting scenarios. The toe plate is designed for low clearance, making it useful for raising heavy machines, or structural components from ground level.

Safe and Easy to Use

A built-in safety release valve protects from overloading, while the smooth hydraulic lowering control allows for precise positioning and secure handling. The wide base provides users with excellent stability, and lowers the risk of tipping under load.

Specifications

• Model: Hydrofor 5 T Hydraulic Toe Jack
• Lifting Capacity: 5,000 kg (11,023 lbs)
• Lifting Type: Hydraulic (Head and Toe Lifting Points)
• Lift Height (Approx.): 180 mm (Toe) / 360 mm (Head)
• Toe Height (Lowered): ~25 mm
• Frame Construction: Heavy-duty steel
• Operation: Manual hydraulic pump
• Safety Features: Overload protection valve, controlled lowering
• Base: Wide, reinforced for stability
• Finish: Industrial-grade corrosion-resistant coating

Recommended Uses

• Lifting and positioning heavy industrial machinery
• Equipment maintenance, installation, and repair
• Precision alignment and setup in production facilities
• Construction and plant service applications

Key Advantages

• High 5 T (5,000 kg) lifting capacity for heavy-duty applications
• Dual lifting design for flexibility in tight or low-clearance spaces
• Smooth, controlled hydraulic lift with overload protection
• Compact design for easy transport and setup
• Rugged all-steel construction for long-term reliability
