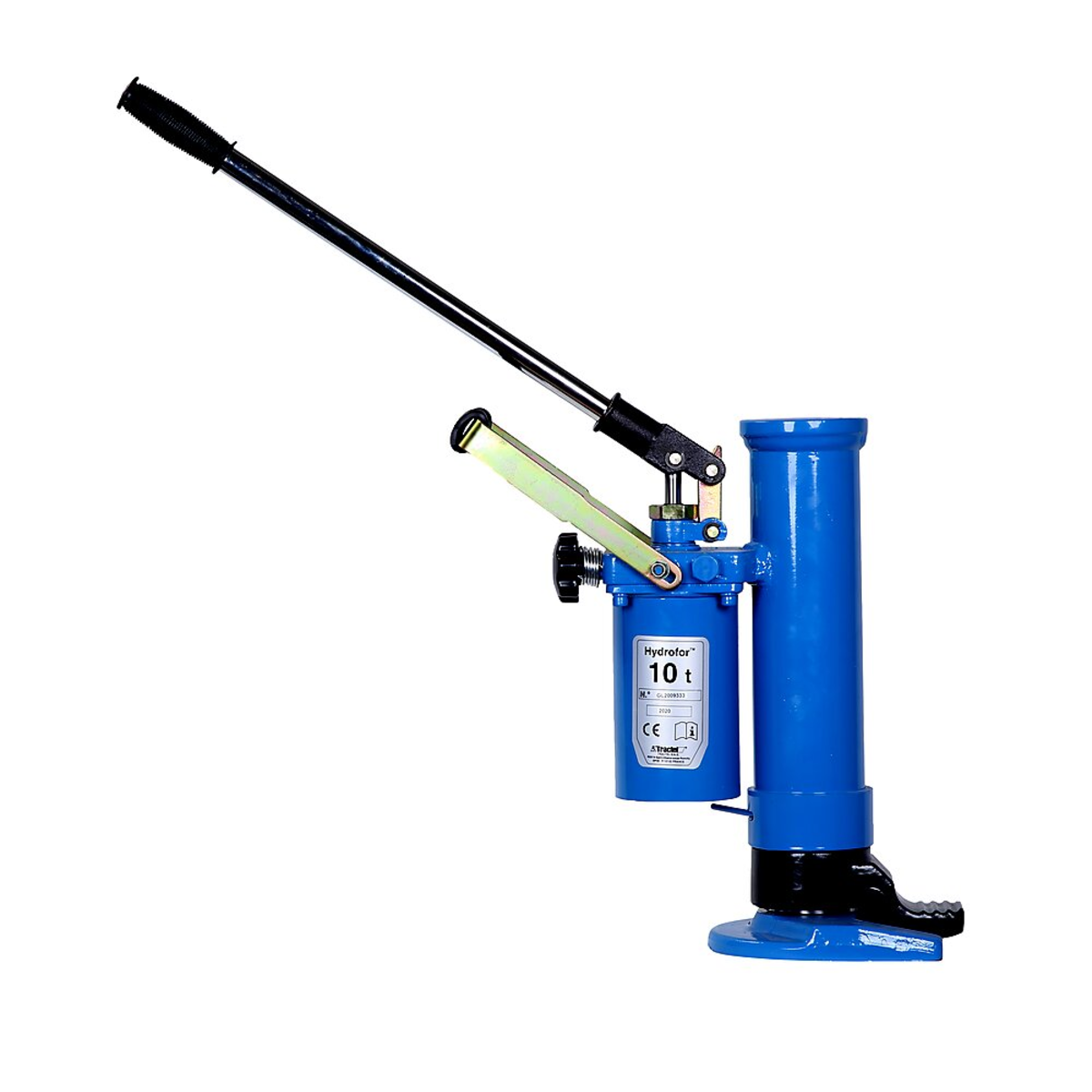

Tractel Hydrofor 10 T Hydraulic Toe Jack – 10,000 kg Capacity

The Hydrofor 10 T Hydraulic Toe Jack gives you the strength, and reliability required for lifting the heaviest industrial loads. With a 10,000 kg (22,046 lbs) lifting capacity, this heavy-duty hydraulic jack is built for professional applications where safety, and durability are non-negotiable. Its dual lifting points—on both the toe and head—provide maximum versatility, making it an ideal tool for machinery movers, maintenance crews, and rigging professionals.

Powerful and Efficient Lifting Performance

Engineered with a high-strength steel body and a precision hydraulic system, the Hydrofor 10 T Toe Jack ensures smooth, consistent lifting under maximum loads. The low-profile toe design easily fits under machinery with minimal ground clearance, while the head lift accommodates taller applications. Each lift is controlled through an efficient hydraulic pump that offers power and precision with minimal effort.

Dual Lifting Functionality

Whether you’re raising large equipment from floor level or performing setup adjustments, this jack’s dual lifting ability gives you the flexibility you need. The toe lift handles low-clearance loads effortlessly, while the top head lift allows for higher engagement points when necessary. Both lifting points are built to withstand repeated use without deformation.

Safety and Stability

A built-in overload protection valve prevents excess pressure and safeguards both operator and equipment. The wide, reinforced base ensures excellent balance under full load, while the smooth lowering control provides precise handling for delicate positioning. Every detail of this design reflects Hydrofor’s commitment to performance and safety.

Specifications

• Model: Hydrofor 10 T Hydraulic Toe Jack
• Lifting Capacity: 10,000 kg (22,046 lbs)
• Lifting Type: Hydraulic (Toe and Head Lift)
• Lift Height (Approx.): 220 mm (Toe) / 380 mm (Head)
• Toe Height (Lowered): ~30 mm
• Frame Material: Heavy-duty steel
• Operation: Manual hydraulic pump
• Safety Features: Overload protection, controlled lowering valve
• Base Design: Extra-wide, stable platform
• Finish: Durable corrosion-resistant industrial coating

Ideal For:

• Lifting and positioning heavy machinery and equipment
• Plant maintenance, machine installation, and industrial service work
• Manufacturing, construction, and engineering applications
• Situations requiring low-clearance or uneven lift points

Key Benefits:

• Powerful 10-ton capacity for the heaviest industrial loads
• Dual lift points for low or elevated lifting operations
• Smooth hydraulic control for safe and precise handling
• Durable steel construction for long service life
• Stable, compact design ideal for tight working spaces
