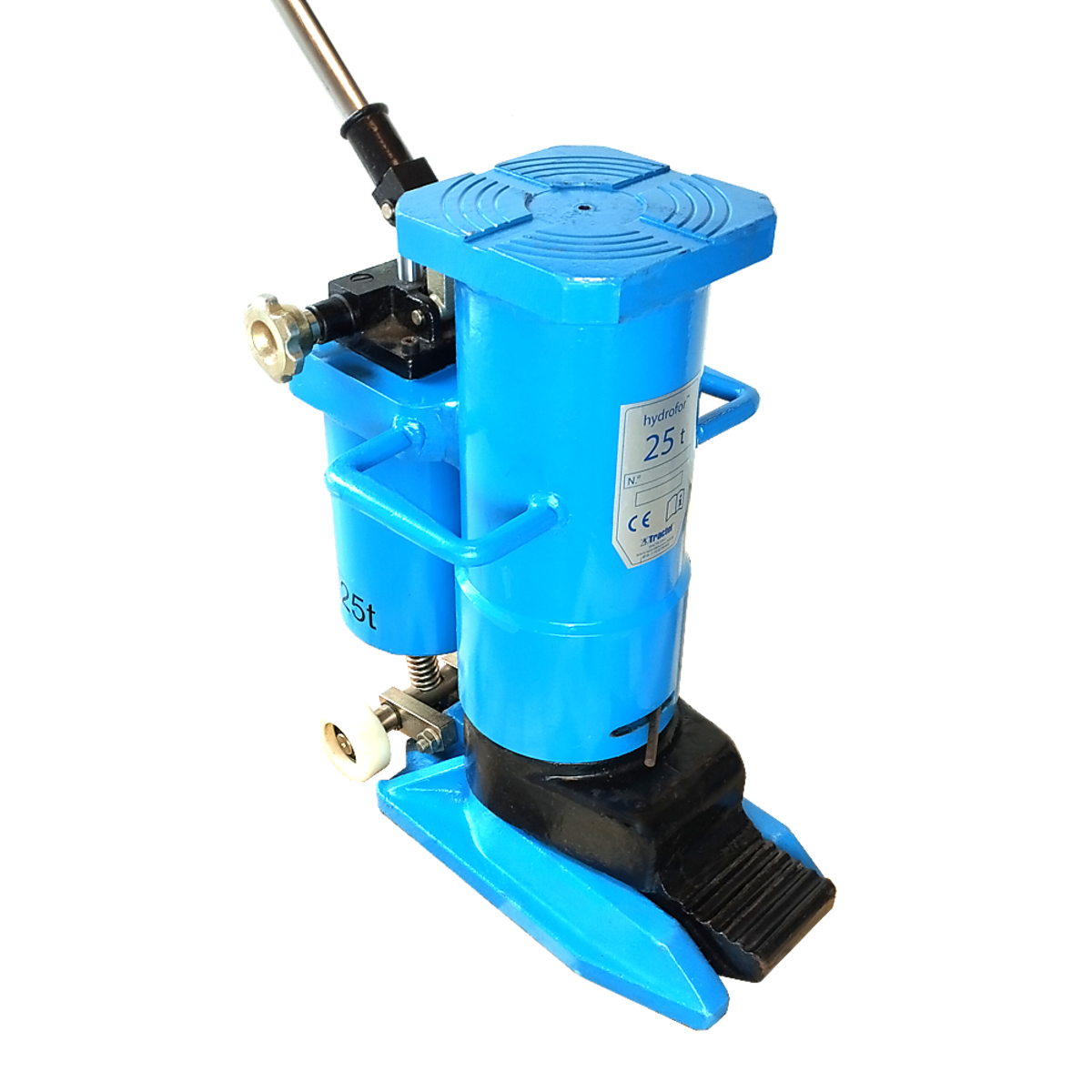

Tractel Hydrofor 25 T Hydraulic Toe Jack – 25,000 kg Capacity

The Hydrofor 25 T Hydraulic Toe Jack is made for the most demanding lifting tasks with a massive 25,000 kg (55,115 lbs) lifting capacity. This heavy-duty hydraulic jack provides unmatched power, control, and safety for moving and positioning large-scale machinery and equipment. Designed for professional rigging, and installation applications, it combines exceptional strength with precise hydraulic performance for dependable lifting under extreme conditions.

Unmatched Heavy-Duty Lifting Performance

Built with a reinforced steel frame, the Hydrofor 25 T Toe Jack delivers maximum stability and strength when handling oversized loads. Its hydraulic system ensures smooth, controlled lifting and lowering, even under full load capacity. The low-profile toe allows easy access beneath low-clearance machines, while the top head lift accommodates higher lift points, offering total flexibility for various lifting needs.

Dual Lifting Capability for Versatile Applications

This hydraulic toe jack features both toe and head lifting points that allow operators to lift from near-ground level or from a higher surface. The toe lift provides a low entry height for machinery setup, while the head lift handles bulkier loads. Both positions are designed to maintain full load integrity without compromise to balance or stability.

Engineered for Safety and Longevity

The Hydrofor 25 T includes a safety overload valve that automatically prevents over-pressurization, protecting both the jack and the operator. A wide, reinforced base provides maximum stability, while a controlled hydraulic release system ensures smooth lowering for precise positioning. Every component is built for reliability, and minimizing maintenance.

Specifications

• Model: Hydrofor 25 T Hydraulic Toe Jack
• Lifting Capacity: 25,000 kg (55,115 lbs)
• Lifting Type: Hydraulic (Toe and Head Lift)
• Lift Height (Approx.): 250 mm (Toe) / 400 mm (Head)
• Toe Height (Lowered): ~35 mm
• Frame Material: High-tensile, heat-treated steel
• Operation: Manual hydraulic pump
• Safety Features: Overload protection valve, controlled lowering system
• Base: Extra-wide, reinforced stability platform
• Finish: Industrial-grade corrosion-resistant coating

Applications

• Industrial machinery lifting and relocation
• Manufacturing, assembly, and production line maintenance
• Construction and engineering equipment handling
• Rigging and plant service operations requiring precision lifts

Key Advantages

• 25-ton capacity for ultra-heavy lifting applications
• Dual lifting design for high or low access points
• Smooth, controlled hydraulic operation with overload protection
• Rugged all-steel frame for extreme durability
• Wide, stable base for superior balance and safety under full load
