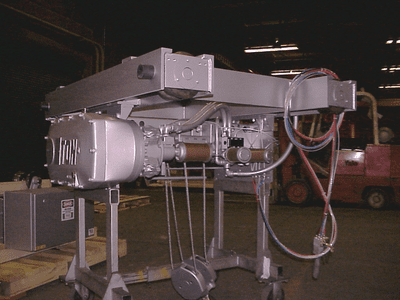

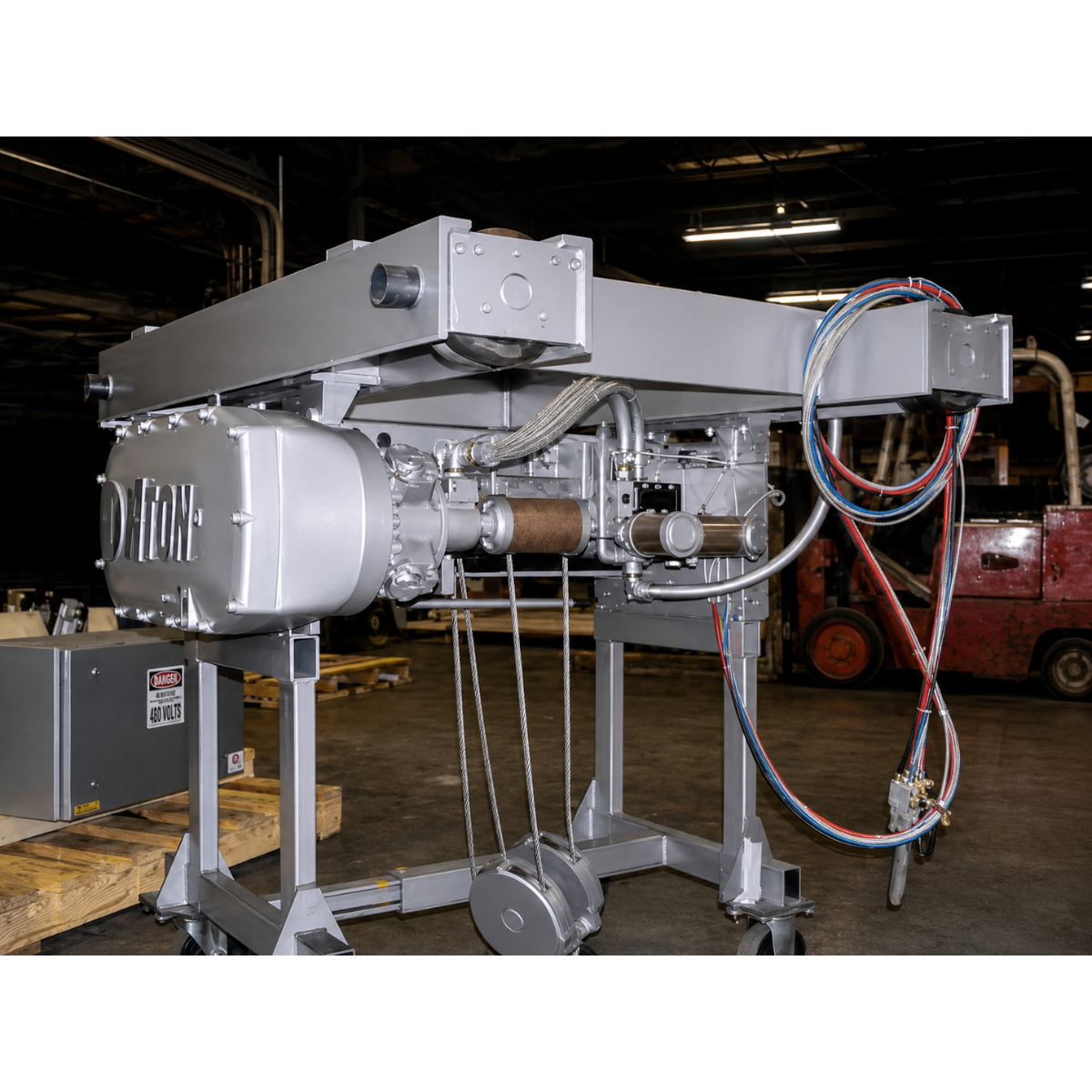

Product Overview
Suspension / Mount: Top-running double girder low-profile suspension/mount provides sturdy support for lifting operations with minimal overhead space requirements, suitable for various industrial settings.
Capacity: Designed to handle loads of up to 8.25 tons, offering versatility for a range of lifting tasks in industrial environments.
Reeving / Lift: Features 3 part line reeving, allowing the crane to lift loads up to 38 feet and 8 inches, offering flexibility in lifting heights and accommodating various load sizes.
Hoist Lift Speed: The hoist operates at a maximum speed of 18 feet per minute, ensuring efficient vertical movement of loads.
Hoist Motor: Powered by a 7.5 KW motor, the hoist provides robust lifting power for handling heavy loads with precision and control.
Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control, ensuring smooth and precise hoist operation, enhancing safety and load handling accuracy.
Trolley Speed: Offers a maximum trolley speed of 80 feet per minute, enabling swift horizontal movement of loads along the runway beams.
Trolley Motor: Equipped with two motors, each rated at 0.55 KW, ensuring reliable and consistent trolley movement for efficient load transportation.
Trolley Control: Utilizes sensorless vector VFD control for precise and responsive trolley maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, compatible with 230VAC, 3-phase, 60Hz power supply, with a tolerance of ±5%, ensuring compatibility with standard power sources.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, suitable for outdoor installations, and designed to withstand various weather conditions.
Trolley Gauge: Offers a trolley gauge of 96 inches, providing ample spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighing approximately 2100 lbs, the crane is designed for easy installation while maintaining structural integrity and reliability.

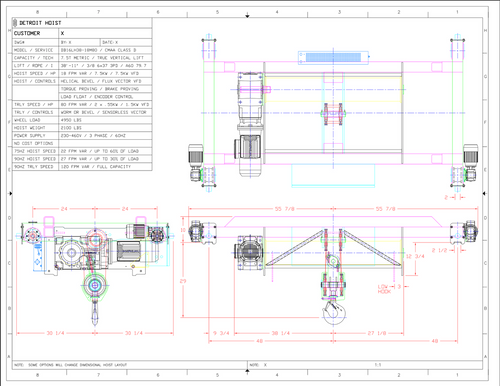

Model DB16LH38-18
Suspension / Mount Top Running Double Girder Low Profile
Capacity 8.25 Ton
Reeving | Lift 3 PD | 38'8"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 96.0000"
Approximate Weight: 2100 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
