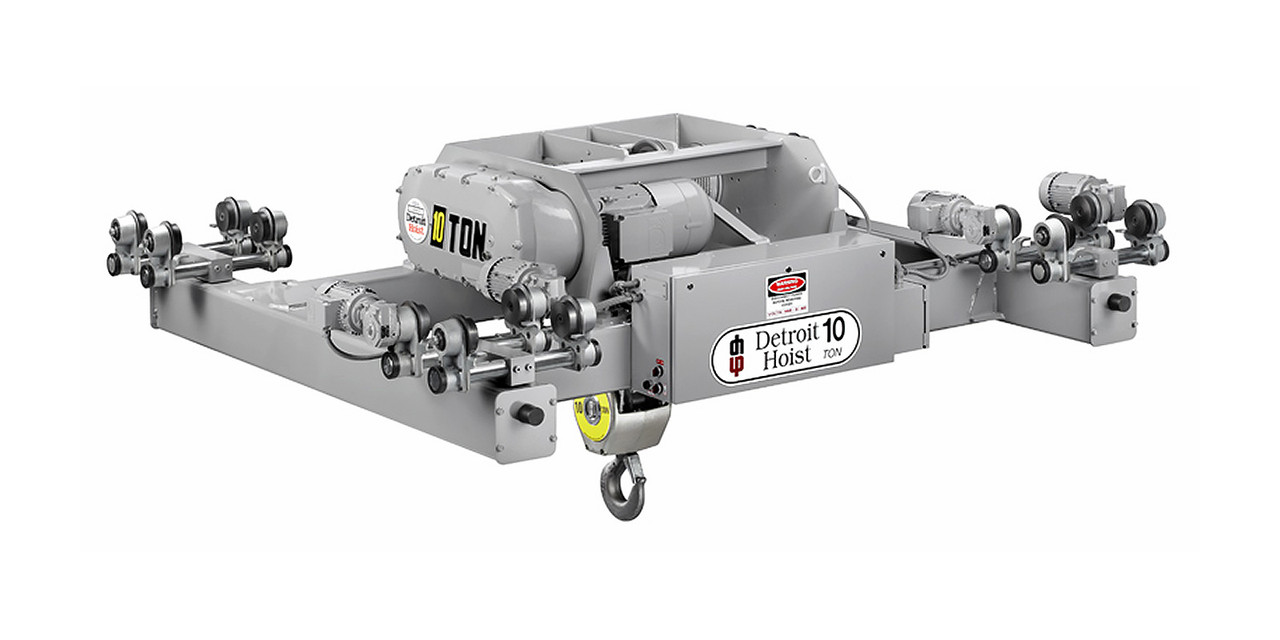

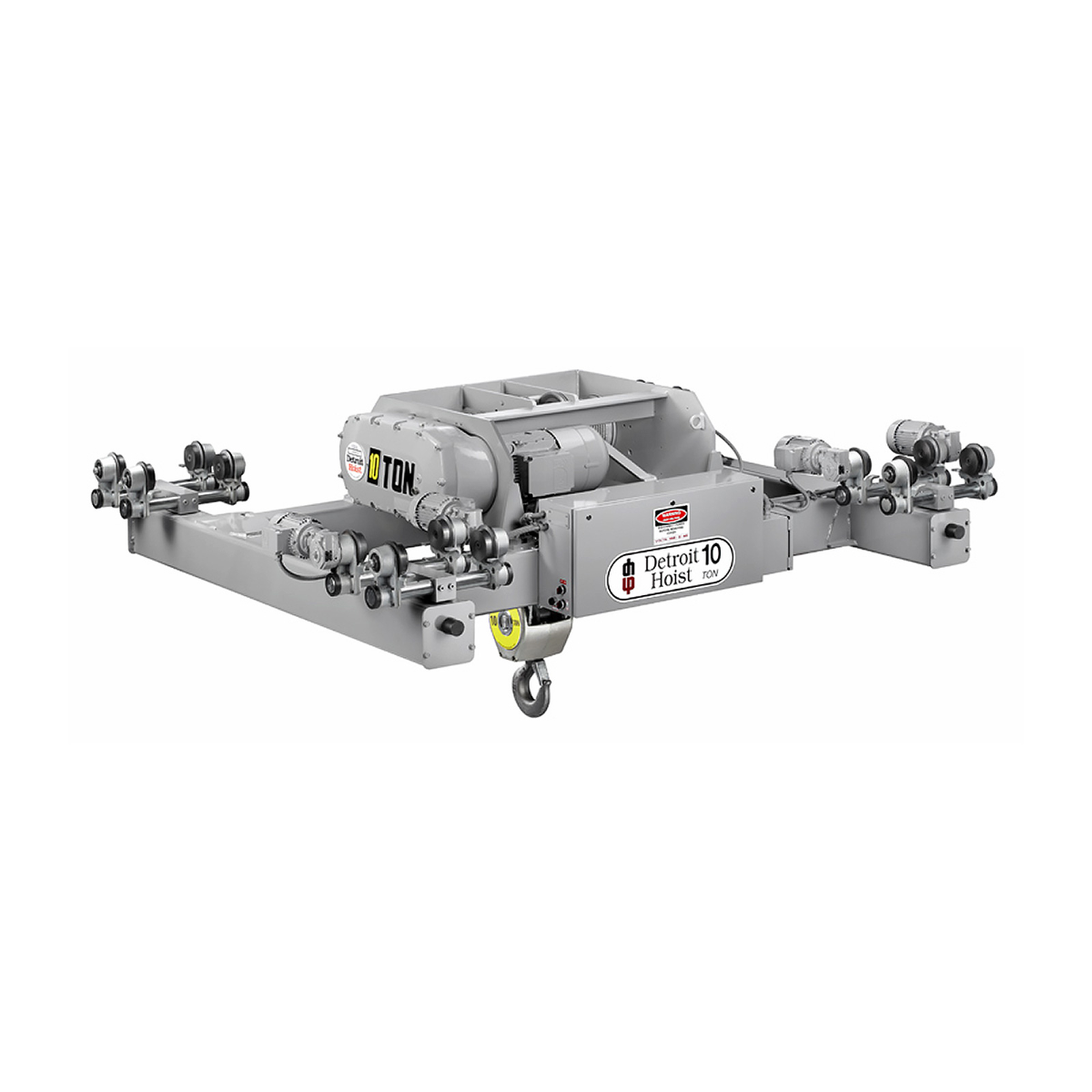

Detroit Hoist Top Running Double Girder Crane, 8.25 Ton Capacity, 18 FPM Lift Speed, 80 FPM Trolley Speed, 66" Trolley Gauge, Model DB16T38-18

Write a Review
$24,000.00
$21,000.00
(You save $3,000.00 )
SKU: DB16T38-18
Availability: Subject to Availability
Weight: 0.00 LBS
Shipping: Calculated at Checkout
Capacity: 10,000 - 19,999 lbs
Lift: 38 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane, 8.25 Ton Capacity, 18 FPM Lift Speed, 80 FPM Trolley Speed, 66" Trolley Gauge, Model DB16T38-18

Detroit Hoist Top Running Double Girder Crane, 8.25 Ton Capacity, 18 FPM Lift Speed, 80 FPM Trolley Speed, 66" Trolley Gauge, Model DB16T38-18

$24,000.00
$21,000.00
(You save $3,000.00 )

Detroit Hoist Top Running Double Girder Crane, 8.25 Ton Capacity, 18 FPM Lift Speed, 80 FPM Trolley Speed, 66" Trolley Gauge, Model DB16T38-18

$24,000.00
$21,000.00
(You save $3,000.00 )

Experience unparalleled lifting capabilities with the Top Running Double Girder DB16T38-18 crane, designed to tackle heavy-duty applications while ensuring safety and efficiency in every operation.

This advanced crane model boasts a lifting capacity of 8.25 tons, making it an ideal solution for a wide variety of industrial tasks. The top running double girder configuration guarantees robust stability and effective load distribution, enabling you to handle and maneuver substantial loads with precision.

  • Suspension/Mount: Top running double girder setup for enhanced stability and load distribution.
  • Capacity: 8.25 tons, perfect for diverse industrial applications.
  • Reeving/Lift: 3-part reeving system with a lift height of 38 feet 8 inches for facilitating efficient vertical movements.
  • Hoist Lift Speed: Maximum lift speed of 18.00 feet per minute for precise positioning of loads.
  • Hoist Motor: Powered by a 7.5 kW motor ensuring reliable performance under demanding conditions.
  • Hoist Control: Closed-loop vector Variable Frequency Drive (VFD) control for enhanced precision and responsiveness.
  • Trolley Speed: Maximum trolley speed of 80.00 FPM for efficient horizontal load movement.
  • Trolley Motor: Two 0.55 kW motors for synchronized movement along the beam.
  • Trolley Control: Sensorless vector VFD control for enhanced operational flexibility.
  • Power Supply: Reliable electric power supply at 230VAC, 3-phase, 60Hz.
  • CMAA Class: Compliant with Class D standards, making it suitable for harsh industrial environments.
  • Trolley Gauge: Spacious 66.0000-inch gauge for optimal load maneuverability.
  • Approximate Weight: Remarkably lightweight at 0.00 lbs for ease of installation and maintenance.

The Top Running Double Girder DB16T38-18 crane is engineered for reliability, safety, and efficiency. With its state-of-the-art features and robust construction, this crane stands ready to elevate your operational capabilities and transform your industrial workflows. Don’t miss the opportunity to enhance your productivity with this highly efficient and versatile lifting solution.

The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
