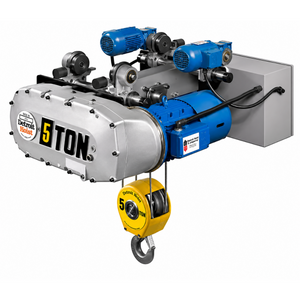

Monorail, Capacity: 8.25 Ton, Hoist Lift Speed: 18.00 FPM Max, Trolley Speed: 80.00 FPM Max, DB16M26-18, Detroit

Product Overview

Suspension / Mount: Specifically designed for monorail suspension or mounting configurations, offering versatility in installation to suit various industrial setups and spatial requirements.

Capacity: With an impressive lifting capacity of 8.25 tons, this hoist system demonstrates substantial strength and capability, making it suitable for handling heavy loads with ease and efficiency in demanding material handling applications.

Reeving | Lift: Utilizing a 3-part reeving system for lift operation, this hoist system achieves a lift height of 26 feet and 11 inches, providing ample vertical reach for lifting tall or bulky loads with precision and control.

Hoist Lift Speed: Featuring a maximum lift speed of 18.00 feet per minute (FPM), this hoist system ensures controlled and efficient vertical movement of loads, contributing to enhanced productivity and safety in material handling operations.

Hoist Motor: Powered by a 7.5 kW hoist motor, this system delivers robust power and torque to facilitate smooth and reliable lifting of heavy loads, ensuring consistent performance even under challenging conditions.

Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the hoist system offers precise speed and torque regulation, enabling accurate positioning and safe operation of the lifting mechanism.

Trolley Speed: The trolley system boasts a maximum speed of 80.00 FPM, allowing for rapid horizontal movement of loads along the monorail beam, further enhancing operational efficiency and flexibility.

Trolley Motor: Equipped with two .55 kW trolley motors, the system provides ample power to support the lateral movement of loads with precision and control, ensuring smooth and reliable material handling.

Trolley Control: Utilizing sensorless vector VFD control for the trolley, this system enables smooth acceleration and deceleration, as well as precise positioning during lateral movement of loads, contributing to operational safety and efficiency.

Power Supply: Designed to operate on electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, ensuring compatibility with standard industrial power sources and facilitating seamless integration into existing electrical systems.

CMAA Class | Atmosphere | Location: Compliant with CMAA Class D standards, this hoist system is engineered to operate reliably in standard atmospheric conditions, while also featuring weather-resistant characteristics for enhanced durability in outdoor environments.

Beam Size: The beam size is specified in the reference mechanical drawing provided, ensuring proper compatibility and integration with existing infrastructure, further enhancing the system's versatility and adaptability to different operating environments.

Approximate Weight: The weight information is not available. Please refer to the manufacturer's documentation or specifications for precise weight details.

Model DB16M26­-18
Suspension / Mount Monorail
Capacity 8.25 Ton
Reeving | Lift 3 PD | 26'­11"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Beam Size Reference Mechanical Drawing
Approximate Weight: 0.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors. Rubber bumpers and drop lugs/rail sweeps. Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
