Monorail, Capacity: 11.00 Ton, Hoist Lift Speed: 18.00 FPM Max, Trolley Speed: 80.00 FPM Max, DB22M26­-18, Detroit

Product Overview

Suspension / Mount: Specifically engineered for monorail suspension or mounting configurations, offering adaptability to diverse industrial settings and spatial constraints.

Capacity: With a remarkable lifting capacity of 11.00 tons, this hoist system exemplifies strength and reliability, ensuring efficient handling of heavy loads in demanding material handling applications.

Reeving | Lift: Utilizing a 3-part reeving system for lift operation, this hoist system achieves a lift height of 26 feet and 11 inches, providing substantial vertical reach for lifting tall or bulky loads with precision and control.

Hoist Lift Speed: Featuring a maximum lift speed of 18.00 feet per minute (FPM), this hoist system enables controlled and efficient vertical movement of loads, optimizing productivity and reducing cycle times in material handling operations.

Hoist Motor: Powered by a robust 10.4 kW hoist motor, this system delivers enhanced torque and power to facilitate smooth and reliable lifting of heavy loads, ensuring consistent performance even under demanding conditions.

Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the hoist system offers precise speed and torque regulation, enabling accurate positioning and safe operation of the lifting mechanism.

Trolley Speed: The trolley system boasts a maximum speed of 80.00 FPM, facilitating rapid horizontal movement of loads along the monorail beam, enhancing operational efficiency and flexibility.

Trolley Motor: Equipped with two 0.55 kW trolley motors, the system provides ample power to support lateral movement of loads with precision and control, ensuring smooth and reliable material handling.

Trolley Control: Employing sensorless vector VFD control for the trolley, this system enables smooth acceleration and deceleration, as well as precise positioning during lateral movement of loads, contributing to operational safety and efficiency.

Power Supply: Designed to operate on electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, the hoist system ensures compatibility with standard industrial power sources, facilitating seamless integration into existing electrical systems.

CMAA Class | Atmosphere | Location: Compliant with CMAA Class D standards, the hoist system is engineered to operate reliably in standard atmospheric conditions, while also featuring weather-resistant characteristics for enhanced durability in outdoor environments.

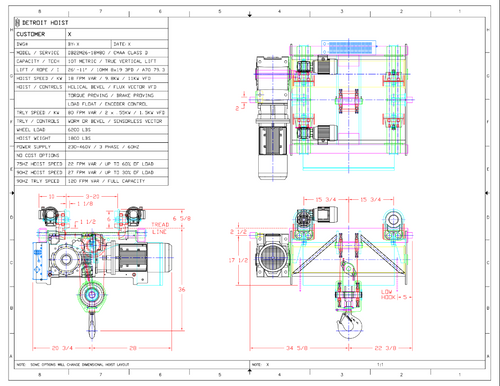

Beam Size: The beam size is specified in the reference mechanical drawing provided, ensuring proper compatibility and integration with existing infrastructure, further enhancing the system's versatility and adaptability to different operating environments.

Approximate Weight: Weighing approximately 1800.00 lbs, this hoist system strikes a balance between sturdy construction and manageable weight, facilitating ease of installation and handling while maintaining structural integrity and stability.

Model DB22M26­-18
Suspension / Mount Monorail
Capacity 11.00 Ton
Reeving | Lift 3 PD | 26'­11"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Beam Size Reference Mechanical Drawing
Approximate Weight 1800.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
