Product Overview
Suspension / Mount: Designed for monorail suspension or mounting configurations, this model offers flexible installation options suitable for various industrial settings.
Capacity: With a hefty lifting capacity of 11.00 tons, this hoist can handle heavy loads with ease, making it perfect for demanding material handling tasks.
Reeving | Lift: Using a 3-part reeving system, this hoist achieves a lift height of 26 feet and 11 inches, providing ample vertical reach for lifting tall or bulky loads with precision.
Hoist Lift Speed: Featuring a maximum lift speed of 21.00 feet per minute (FPM), this hoist allows for swift and efficient vertical movement of loads, helping to improve productivity.
Hoist Motor: Powered by a robust 13.4 kW hoist motor, this system delivers the necessary power to lift heavy loads smoothly and reliably.
Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the hoist ensures precise speed and torque regulation, allowing for accurate positioning and safe operation.
Trolley Speed: The trolley system boasts a maximum speed of 80.00 FPM, enabling fast horizontal movement of loads along the monorail beam.
Trolley Motor: Equipped with two 0.55 kW trolley motors, the system provides sufficient power to support lateral movement of loads with precision and control.
Trolley Control: Using sensorless vector VFD control, the trolley system allows for smooth acceleration, deceleration, and precise positioning during lateral movement of loads.
Power Supply: Designed to operate on standard electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, ensuring compatibility with most industrial power sources.
CMAA Class | Atmosphere | Location: Compliant with CMAA Class D standards, this hoist is designed to operate reliably in standard atmospheric conditions, with weather-resistant features for durability.
Beam Size: The beam size is specified in the reference mechanical drawing provided, ensuring proper compatibility and integration with existing infrastructure.
Approximate Weight: Weighing approximately 1800.00 lbs, this hoist strikes a balance between sturdy construction and manageable weight, facilitating installation and handling while maintaining structural integrity.
Model DB22M26-21
Suspension / Mount Monorail
Capacity 11.00 Ton
Reeving | Lift 3 PD | 26'11"
Hoist Lift Speed 21.00 FPM Max
Hoist Motor 13.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant

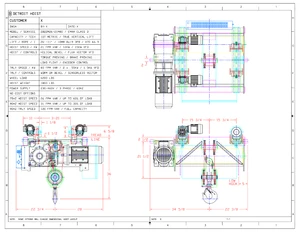

Beam Size Reference Mechanical Drawing
Approximate Weight 1800.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
