Product Overview
Suspension / Mount: This model is designed for monorail suspension or mounting configurations, offering versatile installation options suitable for a variety of industrial settings.
Capacity: With a robust lifting capacity of 11.00 tons, the DB22M50-21 is engineered to handle heavy loads reliably, making it well-suited for demanding material handling applications that require strength and durability.
Reeving | Lift: The hoist utilizes a 3-part reeving system to achieve a lift height of 50 feet and 8 inches, providing substantial vertical reach for precise handling of tall or bulky loads.
Hoist Lift Speed: Featuring a maximum lift speed of 21.00 feet per minute (FPM), the hoist allows for efficient vertical movement of loads, contributing to enhanced productivity in material handling operations.
Hoist Motor: Powered by a robust 13.4 kW hoist motor, the DB22M50-21 delivers ample torque and power to lift heavy loads smoothly and reliably, ensuring consistent performance under varying operating conditions.
Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the hoist system ensures precise speed and torque regulation, facilitating accurate positioning and safe operation of the lifting mechanism.
Trolley Speed: With a maximum speed of 80.00 FPM, the trolley system enables swift horizontal movement of loads along the monorail beam, optimizing efficiency and throughput in material handling processes.
Trolley Motor: Equipped with two 0.55 kW trolley motors, the system provides sufficient power to support lateral movement of loads with precision and control, ensuring smooth and reliable material handling.
Trolley Control: Employing sensorless vector VFD control, the trolley system offers smooth acceleration, deceleration, and precise positioning during lateral movement of loads, enhancing operational safety and efficiency.
Power Supply: The hoist system is designed to operate on standard electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, ensuring compatibility with common industrial power sources and facilitating seamless integration into existing electrical systems.
CMAA Class | Atmosphere | Location: Compliant with CMAA Class D standards, the DB22M50-21 is engineered to operate reliably in standard atmospheric conditions, with weather-resistant features ensuring durability in challenging environments.
Beam Size: The beam size is specified in the reference mechanical drawing provided, ensuring proper compatibility and integration with existing infrastructure, thereby enhancing versatility and adaptability to different operating environments.
Approximate Weight: Weighing approximately 2000.00 lbs, the DB22M50-21 strikes a balance between robust construction and manageable weight, facilitating installation and handling while ensuring structural integrity and stability.
Model DB22M50-21
Suspension / Mount Monorail
Capacity 11.00 Ton
Reeving | Lift 3 PD | 50'8"
Hoist Lift Speed 21.00 FPM Max
Hoist Motor 13.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant

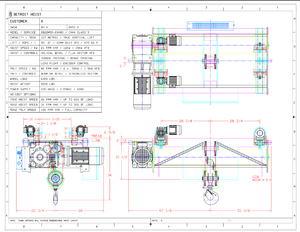

Beam Size Reference Mechanical Drawing
Approximate Weight 2000.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
