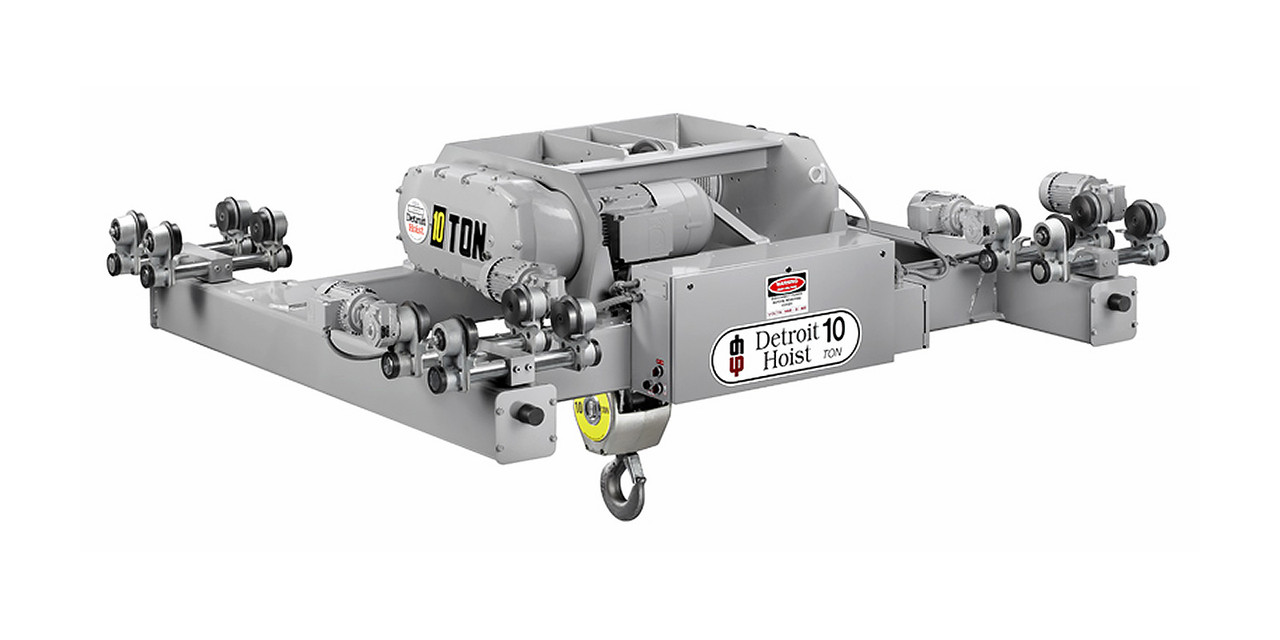

Top Running Double Girder, Capacity: 8.25 Ton, Hoist Lift Speed: 18.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 60.0000", DB16T26-18, Detroit

Product Overview

• Suspension/Mount: It's got that top running double girder setup, which means it's super stable and can handle big loads like a champ.

• Capacity: This bad boy can lift up to 8.25 tons, making it perfect for industrial jobs that require some serious muscle.

• Reeving/Lift: With a 3-part reeving system and a lift height of 26 feet and 11 inches, it's got the versatility to handle various lifting tasks.

• Hoist Lift Speed: Moves at a max speed of 18 feet per minute, so it's not the fastest, but it gets the job done with precision.

• Hoist Motor: Runs on a powerful 7.5 kW motor, ensuring reliable and consistent lifting performance.

• Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation.

• Trolley Speed: Zooms along at up to 80 feet per minute, ensuring quick and efficient horizontal movement of loads.

• Trolley Motor: Features two 0.55 kW motors for smooth trolley movement across the beam.

• Trolley Control: Employs sensorless vector VFD control for accurate and seamless trolley positioning.

• Power Supply: It's electric-powered, running on 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, ensuring consistent power for uninterrupted operation.

• CMAA Class/Atmosphere/Location: Built to meet CMAA standards and withstand Class D atmospheric conditions, making it suitable for a variety of industrial environments.

• Trolley Gauge: Provides a trolley gauge of 60.0000 inches, giving plenty of room for load clearance and maneuverability.

• Approximate Weight: Well, it seems this crane is so light it weighs in at 0.00 lbs! That's certainly convenient for installation and maintenance!

Model DB16T26­-18
Suspension / Mount Top Running Double Girder
Capacity 8.25 Ton
Reeving | Lift 3 PD | 26'­11"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 60.0000"
Approximate Weight 0.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
