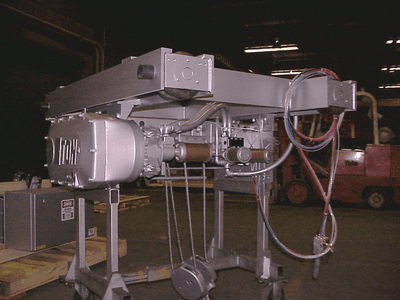

Top Running Double Girder Low Profile, Capacity: 3.30 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 78.0000", DB7LH41-26, Detroit

Product Overview

• Suspension / Mount: Top Running Double Girder Low Profile, indicating that it's mounted on the structure above, featuring a low-profile design for space-saving efficiency.
• Capacity: With a capacity of 3.30 tons, it's suitable for handling moderate loads in industrial settings.
• Reeving / Lift: It uses a 2-part line reeving system and can lift loads up to 41 feet and 7 inches.
• Hoist Lift Speed: Capable of lifting loads at a maximum speed of 26 feet per minute, ensuring efficient vertical movement.
• Hoist Motor: Powered by a 7.5 kW motor, providing sufficient lifting power for smooth and reliable operations.
• Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive lifting operations.
• Trolley Speed: The trolley system can travel at a maximum speed of 80 feet per minute, facilitating efficient horizontal movement along the runway beams.
• Trolley Motor: It has two motors, each rated at 0.55 kW, ensuring smooth and reliable movement of the trolley system.
• Trolley Control: Utilizes sensorless vector VFD control for precise and efficient control over horizontal movements.
• Power Supply: Designed for electric operation, compatible with a standard power supply of 230VAC, 3-phase, 60Hz, with a tolerance of ±5%.
• CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D, suitable for standard weather-resistant service, making it suitable for outdoor installations and capable of withstanding various weather conditions.
• Trolley Gauge: With a trolley gauge of 78 inches, it provides sufficient spacing between the runway beams for smooth trolley movement.
• Approximate Weight: Weighs approximately 2000.00 lbs, making it relatively lightweight and easy to install while maintaining structural integrity.

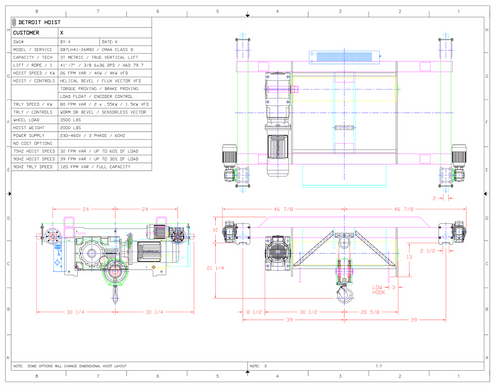

Model DB7LH41-26
Suspension / Mount Top Running Double Girder Low Profile
Capacity 3.30 Ton
Reeving | Lift 2 PD | 41'­7"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 7.5 kw
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 78.0000"
Approximate Weight 2000.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
