Top Running Double Girder Low Profile, Capacity: 3.30 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 104.0000", DB7LH77-26, Detroit

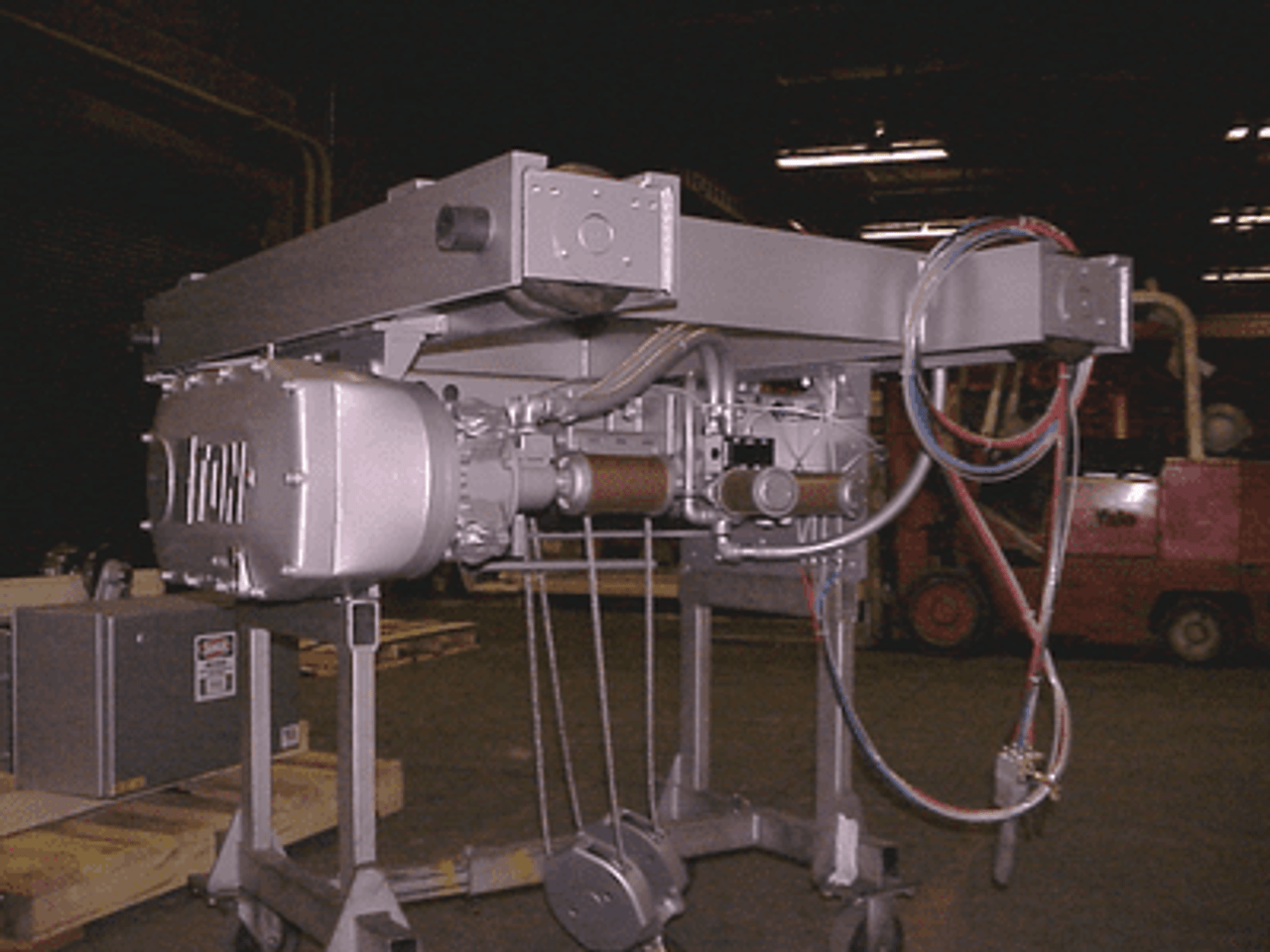

Suspension / Mount: This crane is a top-running double girder low-profile model, designed to be mounted on the structure above, providing stability and support for lifting operations. The low-profile design ensures efficient use of space while maintaining structural integrity.

Capacity: With a capacity of 3.30 tons, this crane is suitable for handling moderate loads in various industrial applications. It offers versatility and reliability for lifting and transporting materials safely and efficiently.

Reeving / Lift: Equipped with a 2-part line reeving system, this crane can lift loads up to 77 feet and 3 inches in height. The reeving configuration enhances the crane's lifting capability, enabling it to handle a wide range of loads effectively.

Hoist Lift Speed: Capable of lifting loads at a maximum speed of 26 feet per minute, the hoist ensures efficient vertical movement, allowing for quick and precise positioning of materials.

Hoist Motor: Powered by a 7.5 kW motor, the hoist provides reliable performance and sufficient lifting power. The motor ensures smooth and controlled lifting operations, even when handling heavy loads.

Hoist Control: Featuring closed-loop vector Variable Frequency Drive (VFD) control, the hoist system offers precise and responsive control over lifting operations. This control mechanism enhances safety and efficiency by allowing operators to adjust lifting speed and direction as needed.

Trolley Speed: The crane boasts a trolley speed of 80 feet per minute, enabling swift and efficient horizontal movement along the runway beams. This high-speed capability contributes to increased productivity and reduced downtime.

Trolley Motor: Equipped with two motors, each rated at 0.55 kW, the trolley system ensures smooth and reliable movement across the crane runway. The dual-motor configuration provides balanced and consistent performance, supporting precise material handling.

Trolley Control: Utilizing sensorless vector VFD control, the trolley system offers precise and responsive control over horizontal movements. This control mechanism enhances operational efficiency and safety by allowing operators to adjust trolley speed and direction accurately.

Power Supply: Designed for electric operation, the crane is compatible with a standard power supply of 230VAC, 3-phase, 60Hz, with a tolerance of ±5%. This ensures compatibility with most industrial power sources, facilitating easy installation and operation.

CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, this crane is designed to withstand harsh environmental conditions. It is suitable for outdoor installations and capable of operating effectively in various weather conditions.

Trolley Gauge: With a trolley gauge of 104 inches, this crane provides sufficient spacing between the runway beams, allowing for smooth and reliable trolley movement.

Approximate Weight: The crane has an approximate weight of 2400.00 lbs, making it relatively lightweight and easy to install while maintaining robust structural integrity.
