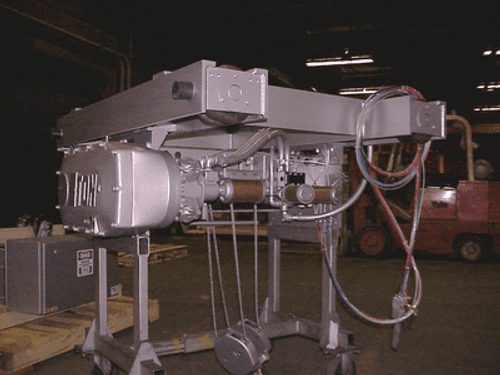

Product Overview
Suspension / Mount: Utilizes a top-running double girder low-profile suspension/mount, providing sturdy support for lifting operations while maintaining a lower profile, ideal for installations with limited vertical space.
Capacity: 16.50-ton lifting capacity, making it suitable for handling heavy loads in various industrial applications.
Reeving / Lift: Features 4 part line reeving, enabling a lift of 20'2", providing flexibility to accommodate different lifting heights and load requirements, ensuring efficient and precise vertical movement of loads.
Hoist Lift Speed: Operates at a maximum lift speed of 13.00 feet per minute (FPM), ensuring smooth and efficient vertical movement of loads.
Hoist Motor: Equipped with a 10.4 KW motor, providing reliable lifting performance while consuming efficient power.
Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation, ensuring accurate load positioning and enhanced safety.
Trolley Speed: Features a maximum trolley speed of 80.00 FPM, facilitating swift and efficient horizontal movement of loads within the workspace.
Trolley Motor: Two motors, each rated at 0.55 kW, drive the trolley, ensuring consistent and reliable movement along the runway beams.
Trolley Control: Employs sensorless vector Variable Frequency Drive (VFD) control for accurate and responsive trolley maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, compatible with 230VAC, 3-phase, 60Hz power supply with a tolerance of ±5%.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, suitable for outdoor installations subject to weather conditions, ensuring durability and longevity.
Trolley Gauge: Offers a trolley gauge of 84.0000 inches, providing ample spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighs approximately 2100.00 lbs, designed for easy installation and maneuverability while maintaining structural integrity and reliability.
Suspension / Mount: Utilizes a top-running double girder low-profile suspension/mount, providing sturdy support for lifting operations while maintaining a lower profile, ideal for installations with limited vertical space.
Capacity: 16.50-ton lifting capacity, making it suitable for handling heavy loads in various industrial applications.
Reeving / Lift: Features 4 part line reeving, enabling a lift of 20'2", providing flexibility to accommodate different lifting heights and load requirements, ensuring efficient and precise vertical movement of loads.
Hoist Lift Speed: Operates at a maximum lift speed of 13.00 feet per minute (FPM), ensuring smooth and efficient vertical movement of loads.
Hoist Motor: Equipped with a 10.4 KW motor, providing reliable lifting performance while consuming efficient power.
Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation, ensuring accurate load positioning and enhanced safety.
Trolley Speed: Features a maximum trolley speed of 80.00 FPM, facilitating swift and efficient horizontal movement of loads within the workspace.
Trolley Motor: Two motors, each rated at 0.55 kW, drive the trolley, ensuring consistent and reliable movement along the runway beams.
Trolley Control: Employs sensorless vector Variable Frequency Drive (VFD) control for accurate and responsive trolley maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, compatible with 230VAC, 3-phase, 60Hz power supply with a tolerance of ±5%.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, suitable for outdoor installations subject to weather conditions, ensuring durability and longevity.
Trolley Gauge: Offers a trolley gauge of 84.0000 inches, providing ample spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighs approximately 2100.00 lbs, designed for easy installation and maneuverability while maintaining structural integrity and reliability.

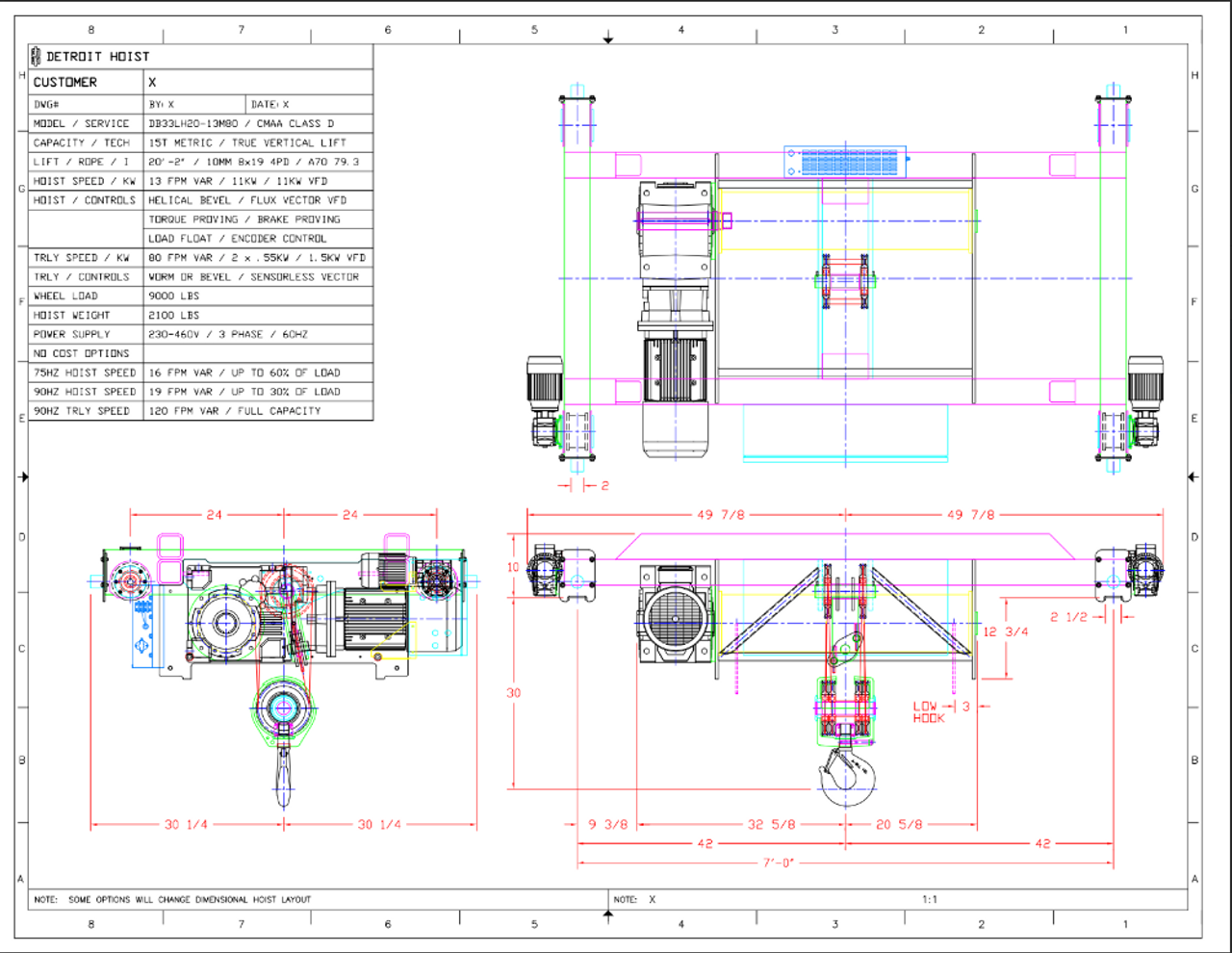

Model DB33LH20-13
Suspension / Mount Top Running Double Girder Low Profile
Capacity 16.50 Ton
Reeving | Lift 4 PD | 20'2"
Hoist Lift Speed 13.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 84.0000"
Approximate Weight 2100.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
