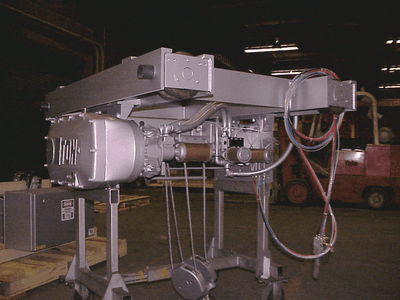

Product Overview
Suspension / Mount: It utilizes a top-running double girder low-profile suspension/mount, providing sturdy support for lifting operations while maintaining a lower profile.
Capacity: With a lifting capacity of 16.50 tons, this crane is capable of handling heavy loads in various industrial settings.
Reeving / Lift: Equipped with 4 part line reeving, enabling a lift of 38'0", providing flexibility to accommodate different lifting heights and load requirements.
Hoist Lift Speed: The crane's hoist operates at a maximum lift speed of 13.00 feet per minute (FPM), ensuring efficient and precise vertical movement of loads.
Hoist Motor: Powered by a 10.4 KW motor, the hoist provides reliable lifting performance, suitable for handling heavy loads with precision and efficiency.
Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control, the hoist operation is smooth and precise, enhancing safety and productivity in material handling tasks.
Trolley Speed: With a maximum trolley speed of 80.00 FPM, the crane facilitates swift and efficient horizontal movement of loads within the workspace.
Trolley Motor: Utilizing two motors, each rated at 0.55 kW, the crane's trolley system ensures consistent and reliable movement along the runway beams, contributing to smooth load positioning.
Trolley Control: Featuring sensorless vector Variable Frequency Drive (VFD) control, the crane provides accurate and responsive trolley maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, the crane operates at 230VAC, 3-phase, 60Hz, with a tolerance of ±5%, ensuring compatibility with standard power supplies and reliable performance.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, making it suitable for outdoor environments subject to weather conditions, ensuring durability.
Trolley Gauge: With a trolley gauge measuring 108.0000 inches, the crane offers ample spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighing approximately 2300.00 lbs, the crane is designed for easy installation and maneuverability while maintaining structural integrity.
Model DB33LH38-13
Suspension / Mount Top Running Double Girder Low Profile
Capacity 16.50 Ton
Reeving | Lift 4 PD | 38'0"
Hoist Lift Speed 13.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 108.0000"
Approximate Weight 2300.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
