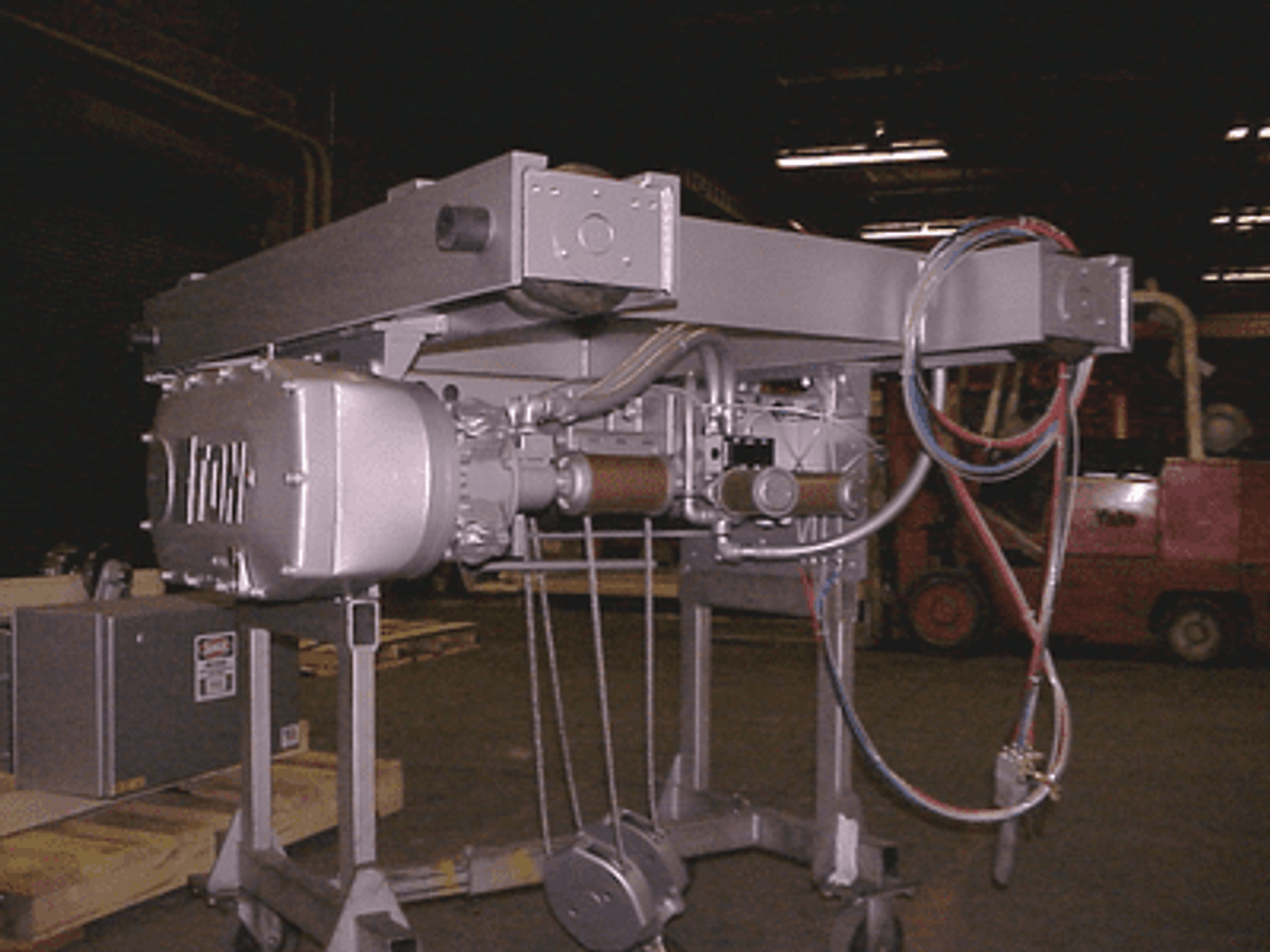

Product Overview
Suspension / Mount: This crane uses a top-running double girder low-profile suspension/mount, providing solid support for lifting tasks while keeping a low profile, great for spaces with limited vertical room.
Capacity: It can handle loads up to 11.00 tons, suitable for various industrial applications requiring lifting of medium to heavy loads.
Reeving / Lift: With 4 part line reeving, it can lift loads up to 29'1", offering versatility for different lifting heights and load sizes.
Hoist Lift Speed: The hoist operates at a maximum speed of 13.00 feet per minute (FPM), ensuring efficient vertical movement of loads.
Hoist Motor: Powered by a 7.5 KW motor, providing reliable lifting performance for heavy loads.
Hoist Control: Features closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation, ensuring accurate load positioning and safety.
Trolley Speed: It has a maximum trolley speed of 80.00 FPM, allowing swift horizontal movement of loads within the workspace.
Trolley Motor: Equipped with two motors, each rated at 0.55 KW, for driving the trolley, ensuring consistent and reliable movement along the runway beams.
Trolley Control: Utilizes sensorless vector VFD control for precise and responsive trolley maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, compatible with 230VAC, 3-phase, 60Hz power supply with a tolerance of ±5%, ensuring compatibility with standard power sources.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, suitable for outdoor installations, ensuring durability and reliability in various weather conditions.
Trolley Gauge: Offers a trolley gauge of 92.0000 inches, providing sufficient spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighs around 2000.00 lbs, designed for easy installation and maneuverability while maintaining structural integrity and reliability.
Model DB22LH29-13
Suspension / Mount Top Running Double Girder Low Profile
Capacity 11.00 Ton
Reeving | Lift 4 PD | 29'1"
Hoist Lift Speed 13.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 92.0000"
Approximate Weight 2000.00 lbsModel DB22LH2913
Suspension / Mount Top Running Double Girder Low Profile
Capacity 11.00 Ton
Reeving | Lift 4 PD | 29'1"
Hoist Lift Speed 13.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 92.0000"
Approximate Weight 2000.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
